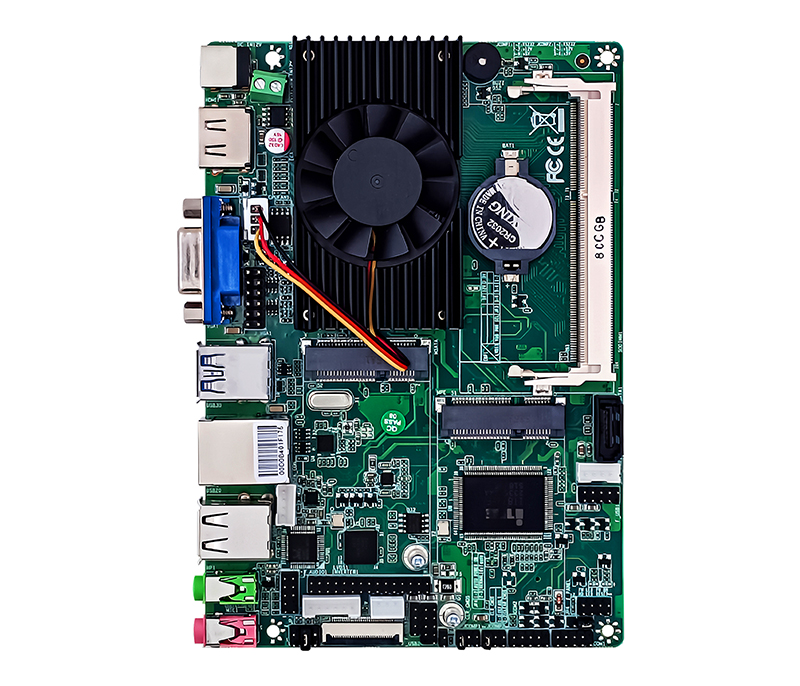

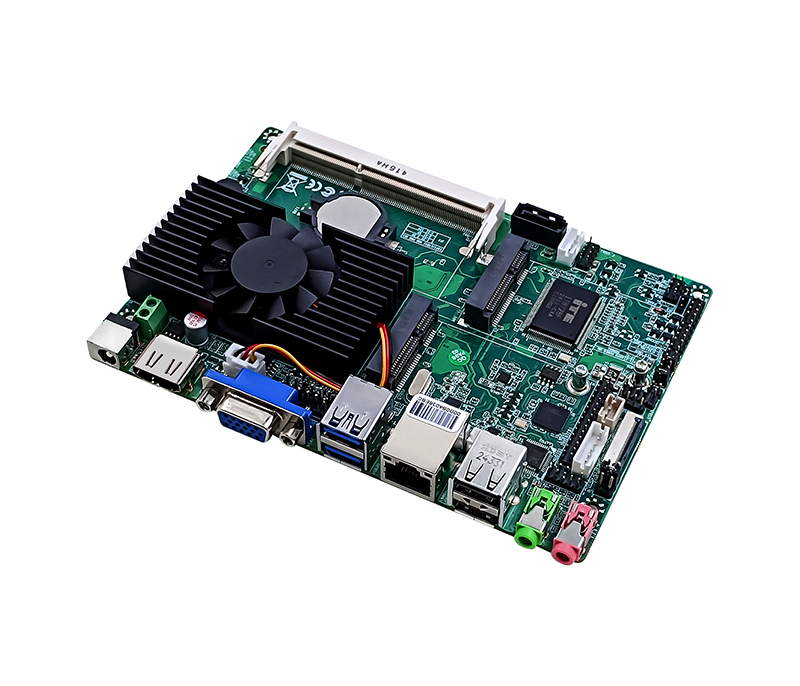

WTM-S35

Price:¥面议

146*102mm/DC/1*SATA/1*RTL8111EL/1*DDR3/2*COM/1*VGA/1*HDMI/MSATA/MiniPCIE/7*USB2.0/LVDS/GPIO

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU intel J1900
CPU slot On-board CPU
specification
Main board structure 3.5" 148*102mm
Power supply mode DC 12V
Number of com 2
Number of usb 9
SATA Number 2
The graphics sound network
graphics output 1*VGA,1*HDMI,1*LVDS,EDP
Net amount 1
Sound card type ALC 662

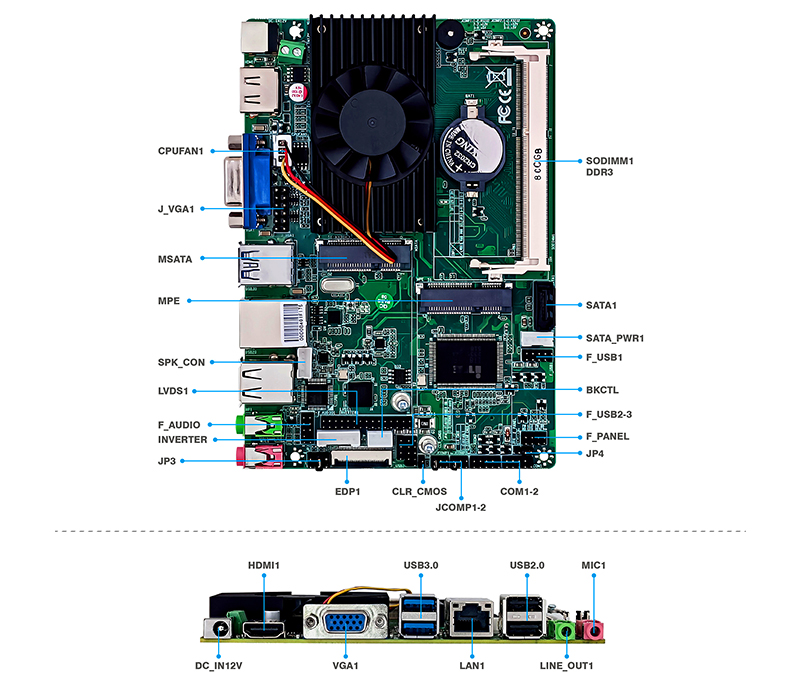

The onboard interface
MSATA 1
Mini-PCIE 1
SIM slot 1
VGA extensions port 2*6 2.54 connector
front audio port 2*5 2.54mm N8 port
Audio amplification 1*4 2.0mm 2*3W port
COM ports number 2
SATA Number 2
DC IN port ATX 4pin

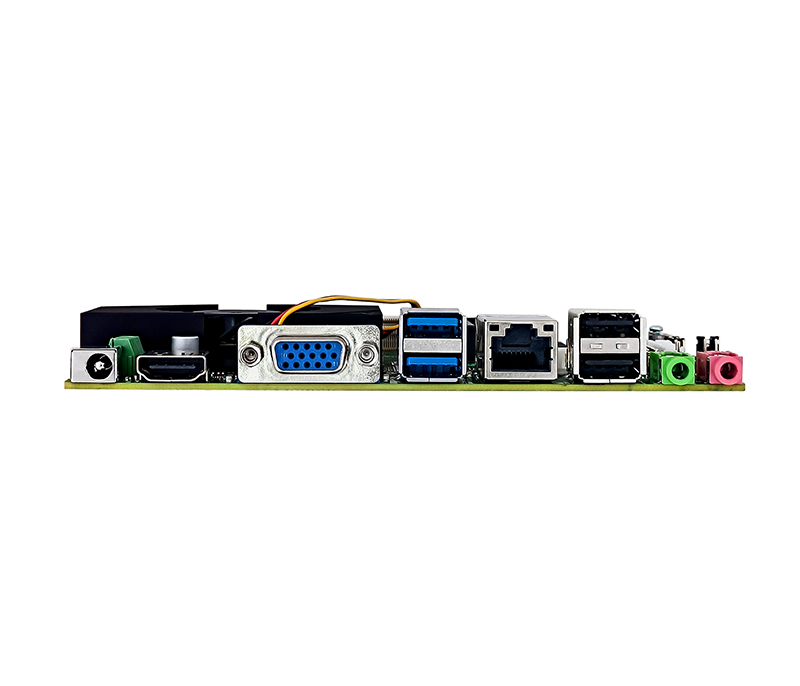

The rear interface
DC DC 12V
VGA 1*VGA
HDMI 1*HDMI
COM 2*COM
LAN 1*LAN
USB2.0 8
USB3.0 NO
Audio 1
Mic 1
Line-in 1
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

Intel® Celeron® Processor J1900处理器(2M Cache,Base Frequency 2.00GHz,up to 2.42GHz)
集成Intel® HD Graphics,支持VGA、HDMI、LVDS或EDP(二选一)四种输出,支持同步或异步双显示
3.5寸板型,小型工控机、POS机及自助行业热卖主板,性价比高
支持单通道DDR3L,单条最高支持到8GB 1333MHz SDRAM
