Product details
WTM-A4-845
Price:¥面议
Contact and cooperate
Telephone:+86-755-82544054 83213461
Mailbox:sale@ipcwtm.com
- Specification
- Introduction
- Packing list
- Customer service
| The main chip | |
|---|---|
| Chip manufacturer | AMD |
| On-board CPU | AMD A6-5200,AMD R464 |
| CPU slot | On-board CPU |
| South chip | AMD A75 |
| specification | |
| Memory type | DDR3 SODIMM |
| Main board structure | ITX 170*170mm |
| Power supply mode | DC 12V |
| Number of com | 2 |
| Number of usb | 10 |
| SATA Number | 4 |
| The graphics sound network | |
| graphics output | 4*DVI-D |
| Net amount | 1 |
| Sound card type | ALC 662 |
| The onboard interface | |
| The PCI slot | NO |
| PCI-E 16X slot | NO |
| MSATA | 1 |
| Mini-PCIE | 1 |
| SIM slot | 1 |
| VGA extensions port | NO |
| HDMI extensions port | NO |
| front audio port | 2*5 2.54mm N8 port |
| Audio amplification | NO |
| KB/MS port | NO |
| LPT/GPIO port | NO |
| COM ports number | 2 |
| USB3.0 Number | 2 |
| GPIO port | 2*5 2.54mm 4in4out |
| SATA Number | 4 |

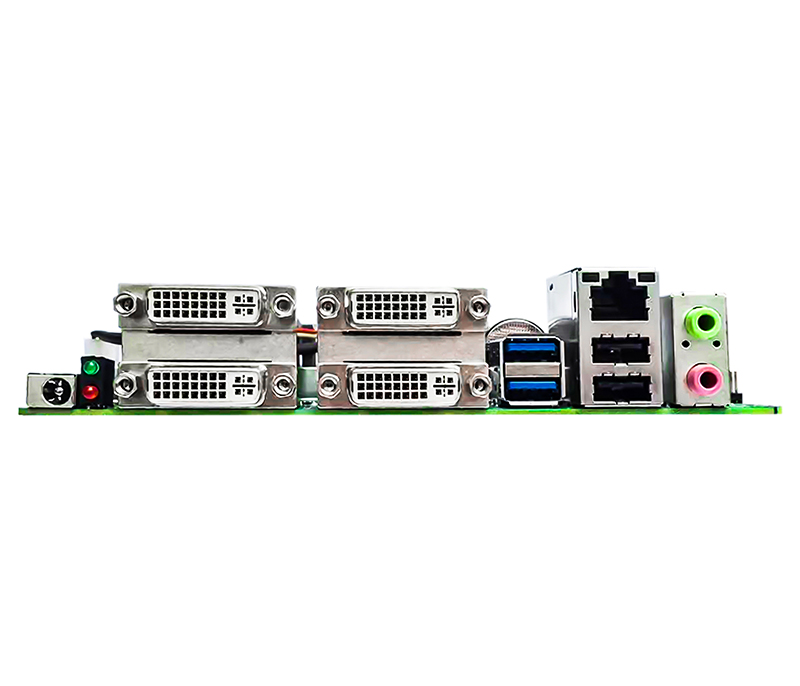

| The rear interface | |
| DC | DC 12V |
| DVI-D | 4*DVI-D |
| LAN | 1*LAN |
| USB2.0 | 2 |
| USB3.0 | 2 |
| Audio | 1 |
| Mic | 1 |
| PW_SW | 1 |
Service commitment
1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054
170*170mm/DC12V/1*RTL8111EL/2*DDR3/2*COM/4*DVI-D/MSATA/MINIPCIE/6*USB2.0/4*USB3.0/GPIO/4*SATA
