Product details

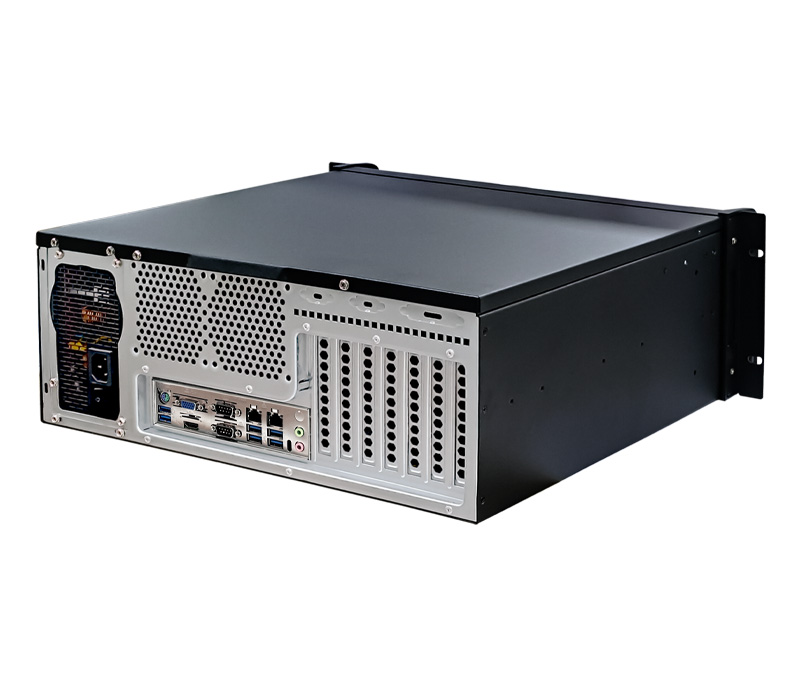

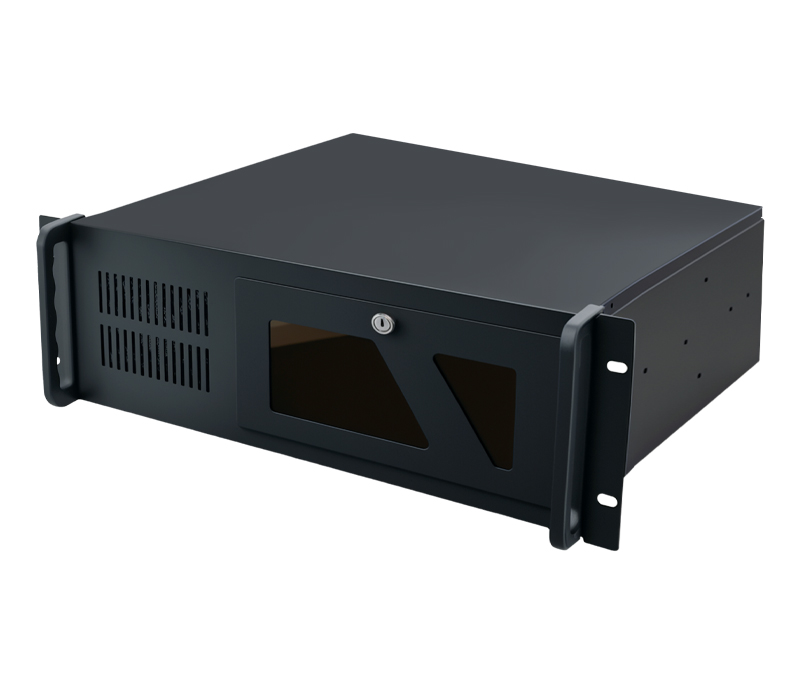

W-G365 complete machine
Price:¥面议
Contact and cooperate
Telephone:+86-755-82544054 83213461
Mailbox:sale@ipcwtm.com
- Specification
- Introduction

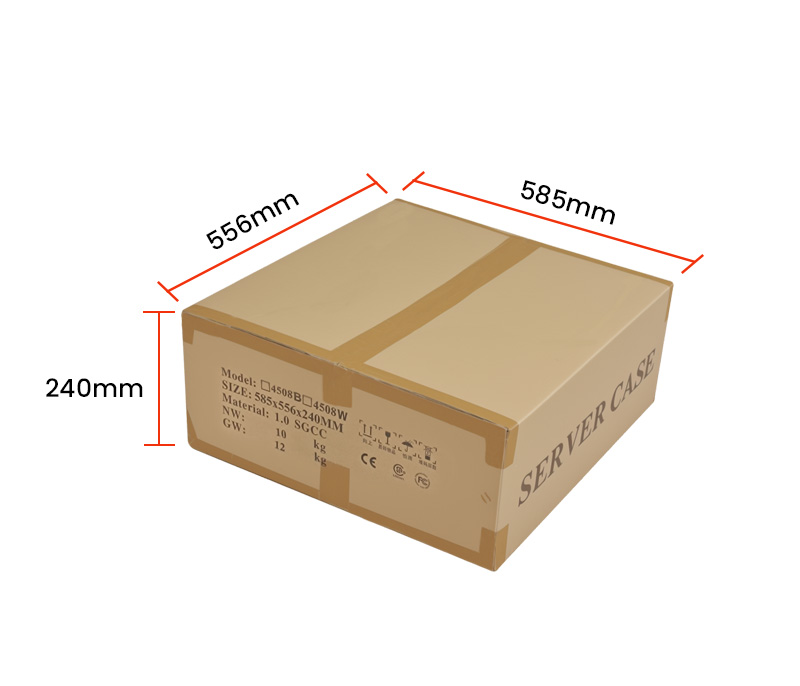

- Packing list
- Customer service
| The main chip | |
|---|---|
| Chip manufacturer | Intel |
| CPU chip position | Front |
| South chip | intel B365 |
| specification | |
| Memory type | DDR4 UDIMM |
| RAM | 4*DDR4 UDIMM |
| Storage | M.2_SSD NVME/NGFF,SATA |
| Storage Detail | 5*SATA,1*M.2_SSD |
| USB | 6*USB2.0,2*USB 3.2 Gen1,6*USB 3.2 Gen1 |
| Expandable Slot | 1*PCIE 16X,1*TPM2.0,2*PCIE 4X |
| Power supply mode | ATX 24+8 PIN |
| Number of com | 2 |
| Number of usb | 14 |
| TPM | Optional-Connect us |
| The graphics sound network | |
| graphics output | 1*HDMI,1*VGA |
| Net amount | 2 |
| Sound card type | ALC 897 |
| The rear interface | |
| PW_SW | 1 |
Service commitment
1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

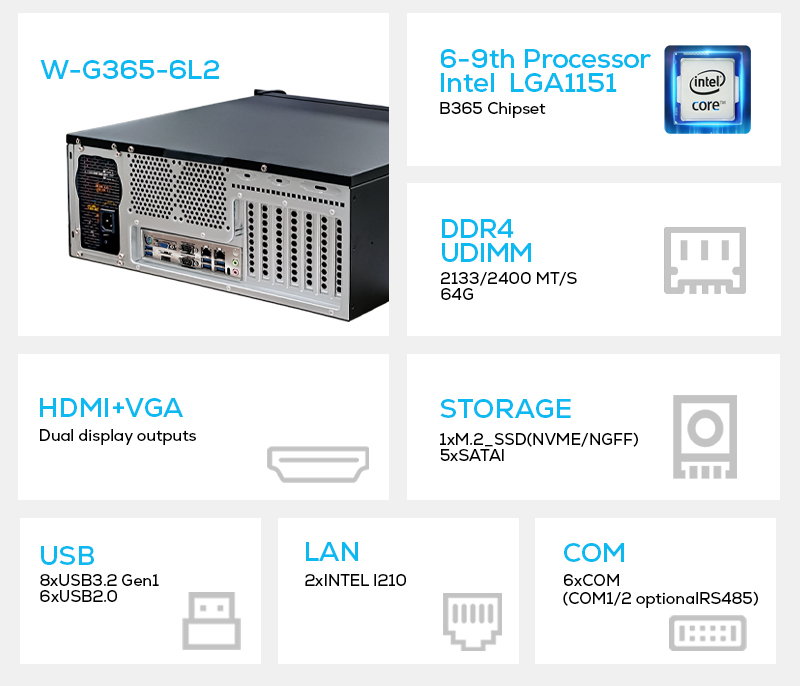

| Specifications | |
| CPU | 6th/7th/8th/9th Intel® LGA1151 CPU |
| Chipset | B365 |
| Memory | 4*DDR4 UDIMM, 2133~2666 MT/s, 64G |
| Graphics | It depends on the CPU |
| Display Output | 1*HDMI2.1, up to 4096 x 2160@60Hz |
| 1*VGA, up to 1920 x 1080@60Hz | |
| Audio | Onboard ALC897 audio decoding controller |
| Networking | 2*INTEL I210 network |
| Storage | 1*M.2_SSD(NVME/NGFF) |
| 5*SATAⅢ | |
| Expansion Slots | 1*PCIEX16, 4*PCI, 2*PCIEX4 |
| USB | 6*USB3.2 Gen 1 Type A ports |
| 2*USB3.2 Gen 1(front panel) | |
| 6*USB2.0(6 onboard pin headers) | |
| Serial Ports | 6*COM(COM1/2 optional RS485) |

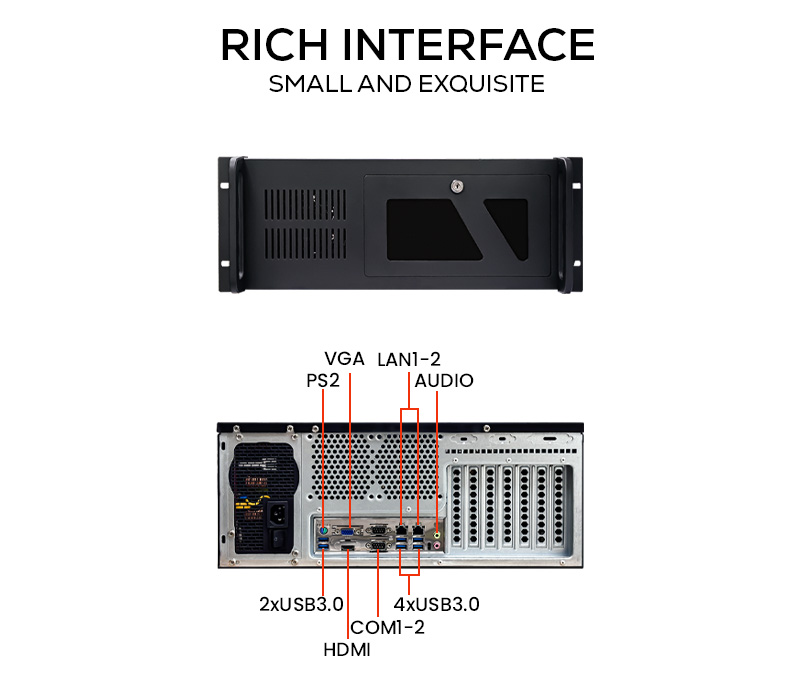

| Rear Interfaces | 1*VGA interfaces |
| 1*HDMI interfaces | |
| 6*USB 5Gbps interfaces | |
| 1*PS2 interfaces | |
| 2*COM interfaces | |
| 2*LAN interfaces | |
| 1*MIC_IN interfaces | |
| 1*HP interfaces | |
| Onboard Interfaces | 2*F_USB2.0 pin headers+2*USB_KEY |
| 1*F_USB3.0 pin headers | |
| 1*J_VGA pin headers | |
| 1*LAN_LED pin headers | |
| 1*F_PANEL pin headers | |
| 1*GPIO pin headers | |
| 1*F_AUDIO pin headers | |
| 2*CPU/SYS_FAN pin headers | |
| 4*COM pin headers | |
| 5*SATAⅢ interfaces | |
| Environment | Operating temperature: -20℃ to 60℃ |
| Humidity: 0% to 95% relative humidity, non-condensing | |
| Power | 24+8 ATX power supply |
| Size | 300X244mm |
