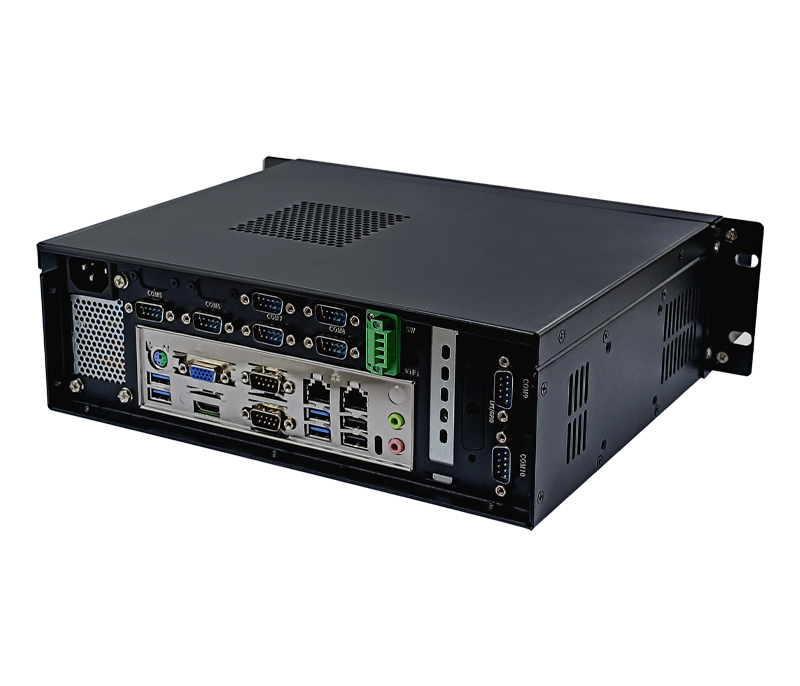

W-B75 complete machine

Price:¥面议

2-3 generations of Core, Pentium, and Celeron (LGA1155) processors, B75 2*DDR3SODIMM,1066/1333/1600 MT/s,Max 16GB 1*VGA+1*HDMI, Multiple display modes

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
The cooling mode No fan
CPU slot LGA 1155(SB/IB)
South chip intel B75
specification
Memory type DDR3 SODIMM
RAM 2*DDR3 SODIMM
Storage SATA,MSATA
Storage Detail 2*SATA,1*MSATA
USB 4*USB 3.2 Gen1,2*USB2.0
Expandable Slot 1*PCI
Main board structure MINI-ITX 180*180mm
Power supply mode ATX 24+4 PIN
Number of com 2
Number of usb 6
SATA Number 2
TPM Optional-Connect us
The graphics sound network
graphics output 1*HDMI,1*VGA
Network chip RTL8111
Net amount 2
The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • Supports second and third generation Core, Pentium, and Celeron (LGA1155) processors, B75
  • 2*DDR3SODIMM,1066/1333/1600 MT/s,Max 16GB
  • 1*VGA+1*HDMI, Multiple display modes

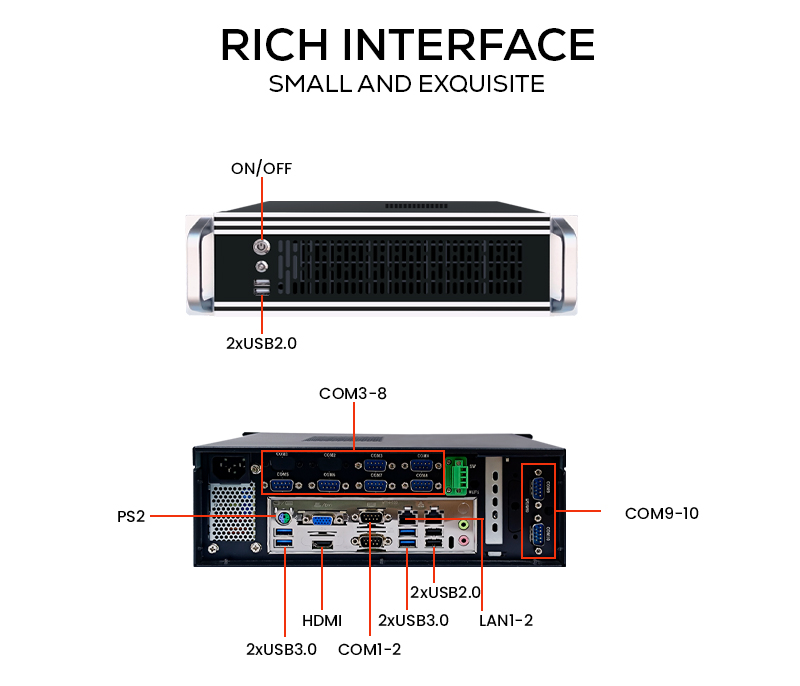

  • 4*USB3.2Gen1+11*USB2.0,10*COM
  • 1*MSATA,2*SATAⅢ,1*PCI
  • 2*RTL8111HLAN, 8 GPIO channels, 1 * PS2, powered by ATX
