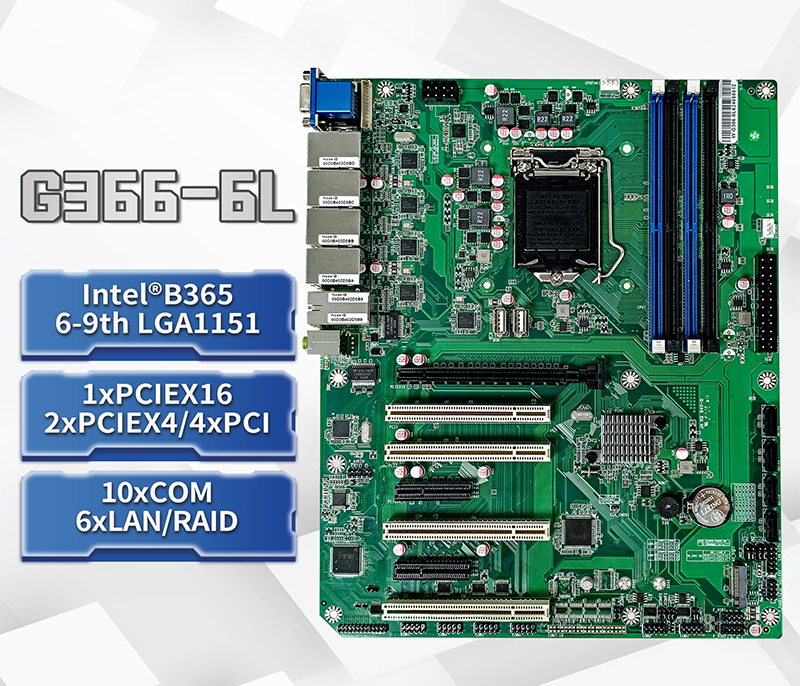

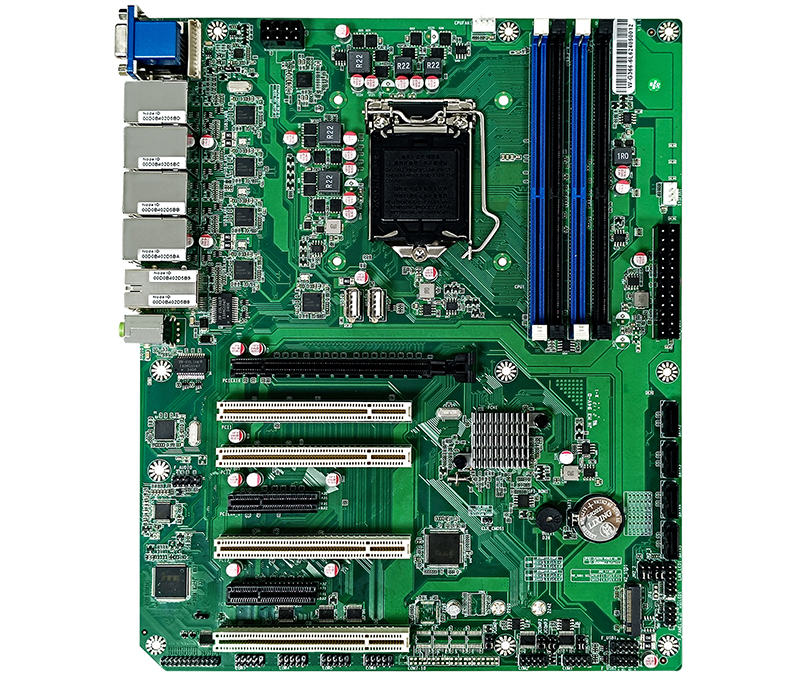

W-G366-6L6 V1.1

Price:¥面议

IntelB365 chipset, high-performance 6-port industrial control board, good stability, suitable for high-performance industrial control computers

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU slot LGA 1151
South chip intel B365
specification
Memory type DDR4 UDIMM
RAM 4*DDR4 UDIMM
Storage SATA
Storage Detail 1*M.2_SSD,4*SATA
USB 8*USB 3.2 Gen1,6*USB2.0
Expandable Slot 2*PCIE 4X,4*PCI,1*PCIE 16X
Main board structure ATX 300*244mm
Power supply mode ATX 24+8 PIN
Number of com 6
Number of usb 14
SATA Number 4
TPM Optional-Connect us
The graphics sound network
graphics output 1*HDMI,1*VGA
Network chip intl i210
Net amount 6

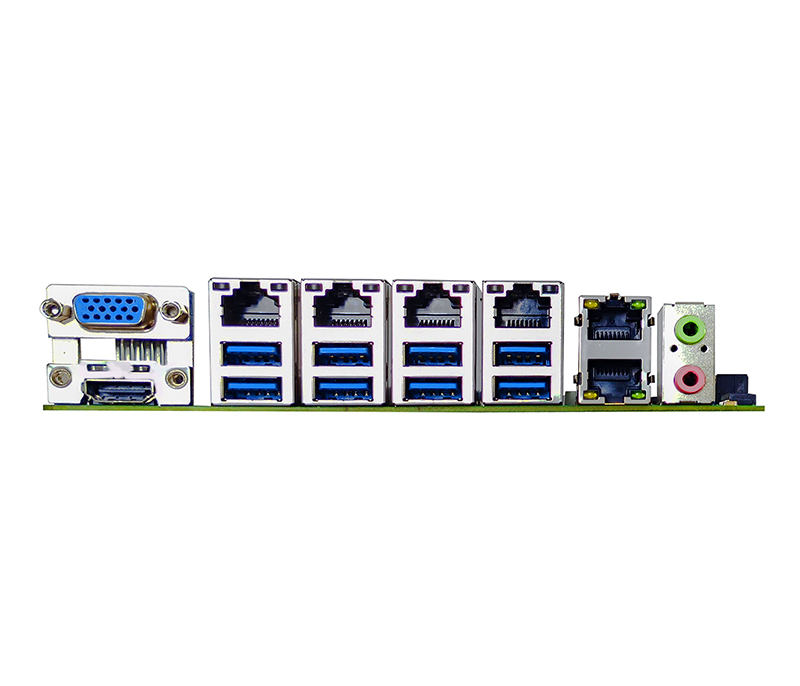

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • IntelB365 chipset, supporting 6th/7th/8th/9th generation in LGA1151 processors
  • Supports 4 DDR42133-2666MT/s desktop memories, with a maximum support of 64GB
  • High performance 6-port industrial control board, with strong performance and good stability, suitable for high-performance industrial control computers
  • 6 Intel Gigabit Ethernet ports, supporting disk array RAID functionality
  • Supports 6COM, 1 PCIEX 16, 2 PCIEX 4, and 4 PCI expansion interfaces
  • Support M.2 (NGFF/NVME protocol) interface, 4 SATA III interfaces
