Product details

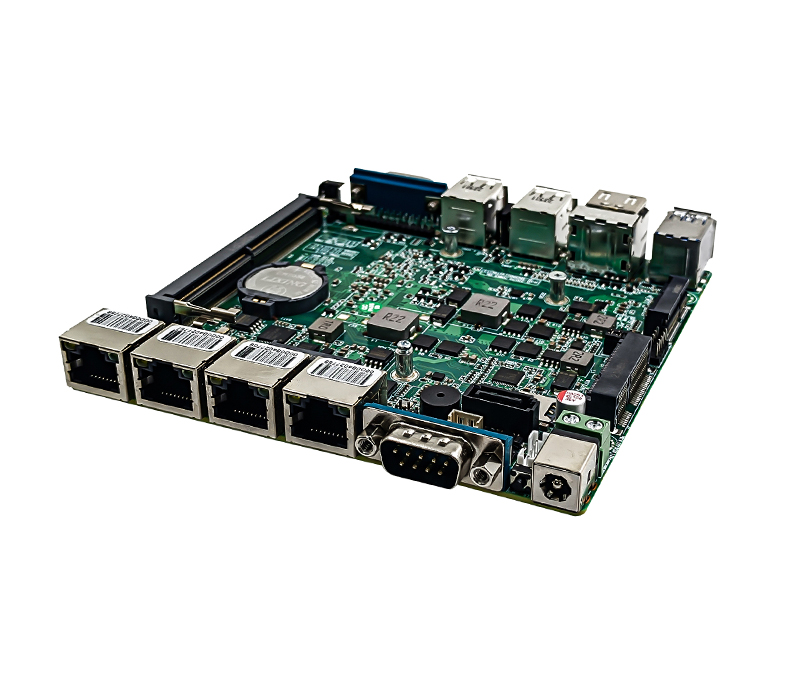

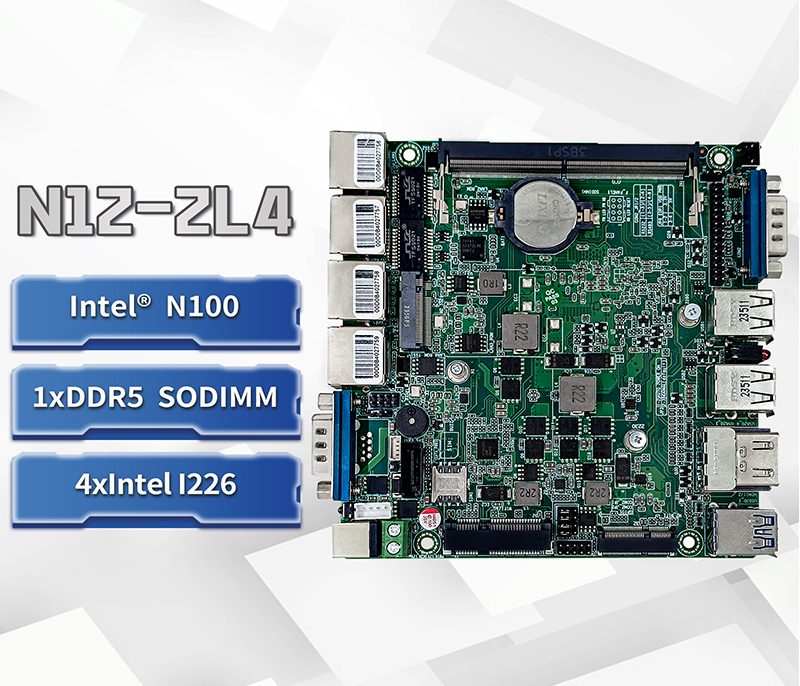

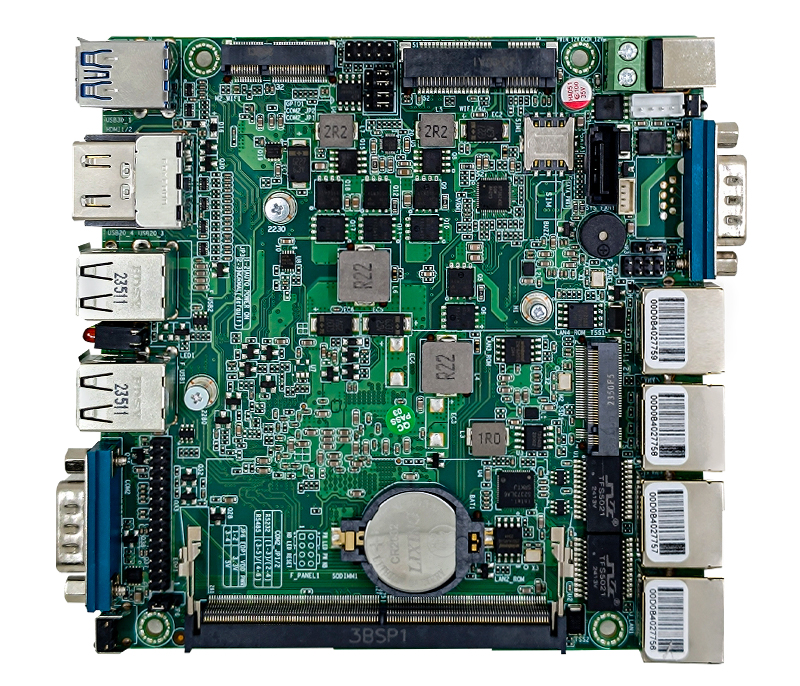

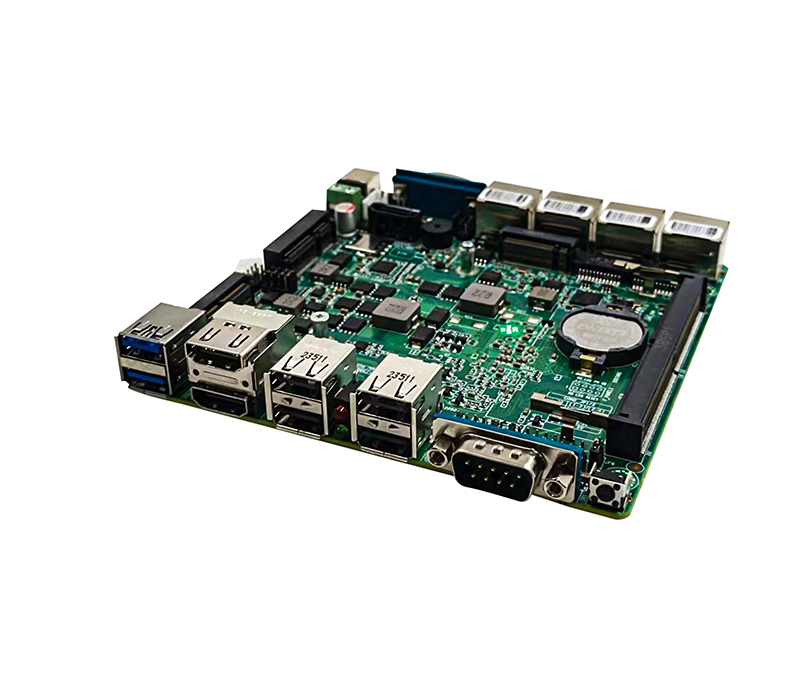

W-N12-2L4 V1.1
Price:¥面议
Contact and cooperate
Telephone:+86-755-82544054 83213461
Mailbox:sale@ipcwtm.com
- Specification
- Introduction
- Packing list
- Customer service
| The main chip | |
|---|---|
| Chip manufacturer | Intel |
| On-board CPU | intel N100 |
| The cooling mode | No fan |
| South chip | intel N100 |
| specification | |
| Memory type | DDR5 SODIMM |
| RAM | 1*DDR5 SODIMM |
| Storage | M.2_SSD NVME/NGFF,SATA |
| Storage Detail | 2*MSATA,1*M.2_SSD |
| USB | 2*USB 3.2 Gen1 |
| Expandable Slot | 1*SIM(可加),1*M.2 WIFI,1*M.2 5G,1*SIM |
| Main board structure | Nano 120*120mm |
| Power supply mode | DC 12V |
| Number of com | 2 |
| Number of usb | 6 |
| SATA Number | 1 |
| TPM | Optional-Connect us |
| The graphics sound network | |
| graphics output | 2*HDMI |
| Network chip | intel i226 |
| Net amount | 4 |

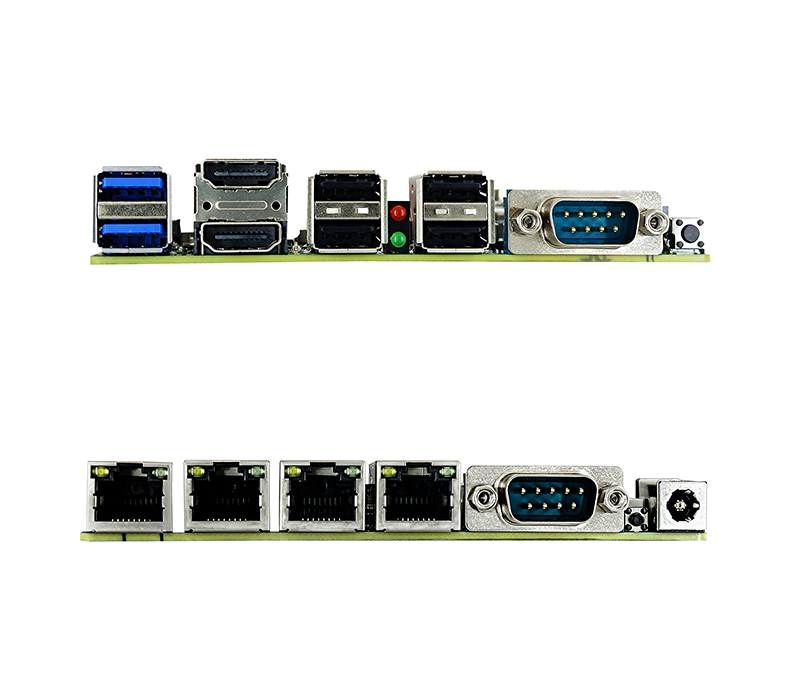

| The rear interface | |
| PW_SW | 1 |
Service commitment
1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054
- Intel N-series N100 processor (optional i3-N305)
- 1*DDR5SODIMM,4800MT/s,32GB
- 2*HDMI+1*EDP, Multiple display modes
- 2*USB3.2Gen2,4*USB2.0
- 1*M.2_SSD(NVME/NGFF) ,1*M.2 WIFI,1*4G/WIFI
- 2 * COM (RS232/RS485), 4 * Inteli2262.5G network card, 1 * 8 GPIO channels
