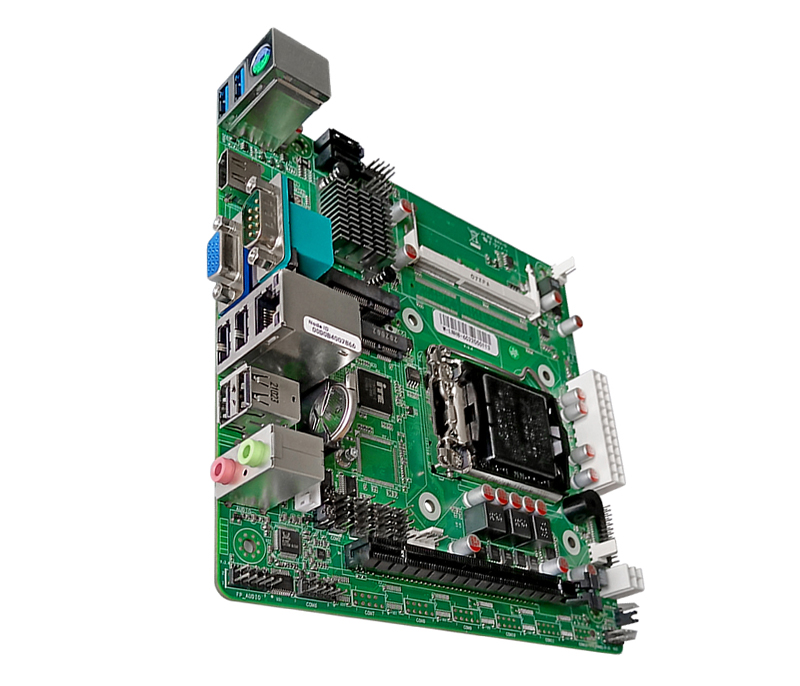

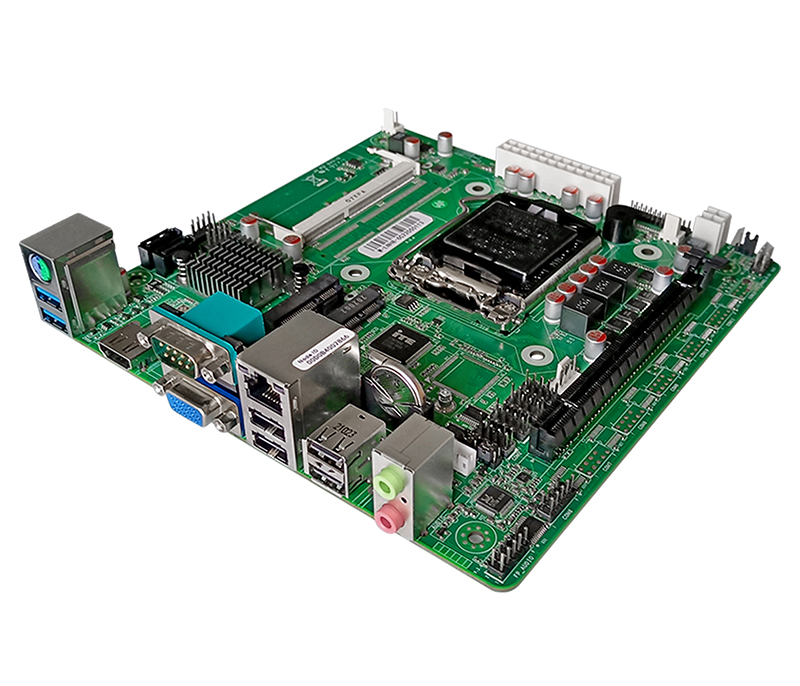

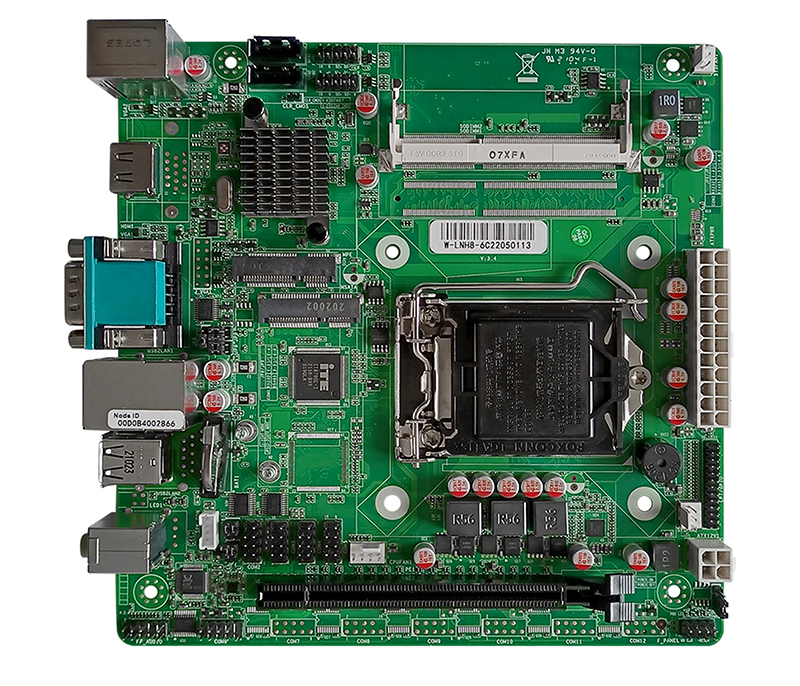

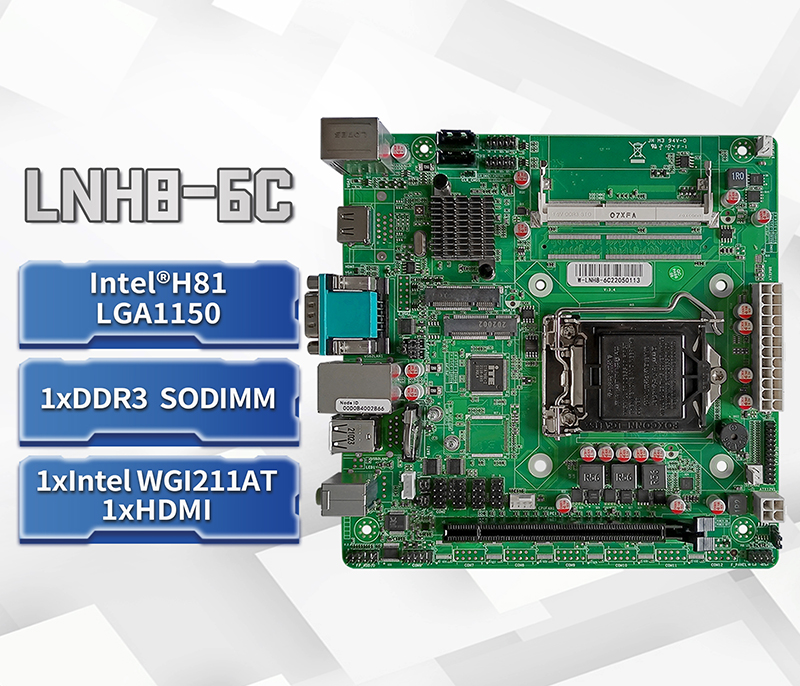

W-LNH8-6C

Price:¥面议

Intel H81 chipset with 4th to 5th Core, Pentium, and Celeron LGA1150 processors 1-PCIE_16X slot 1*DDR3, The maximum support for a single line is 8GB

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

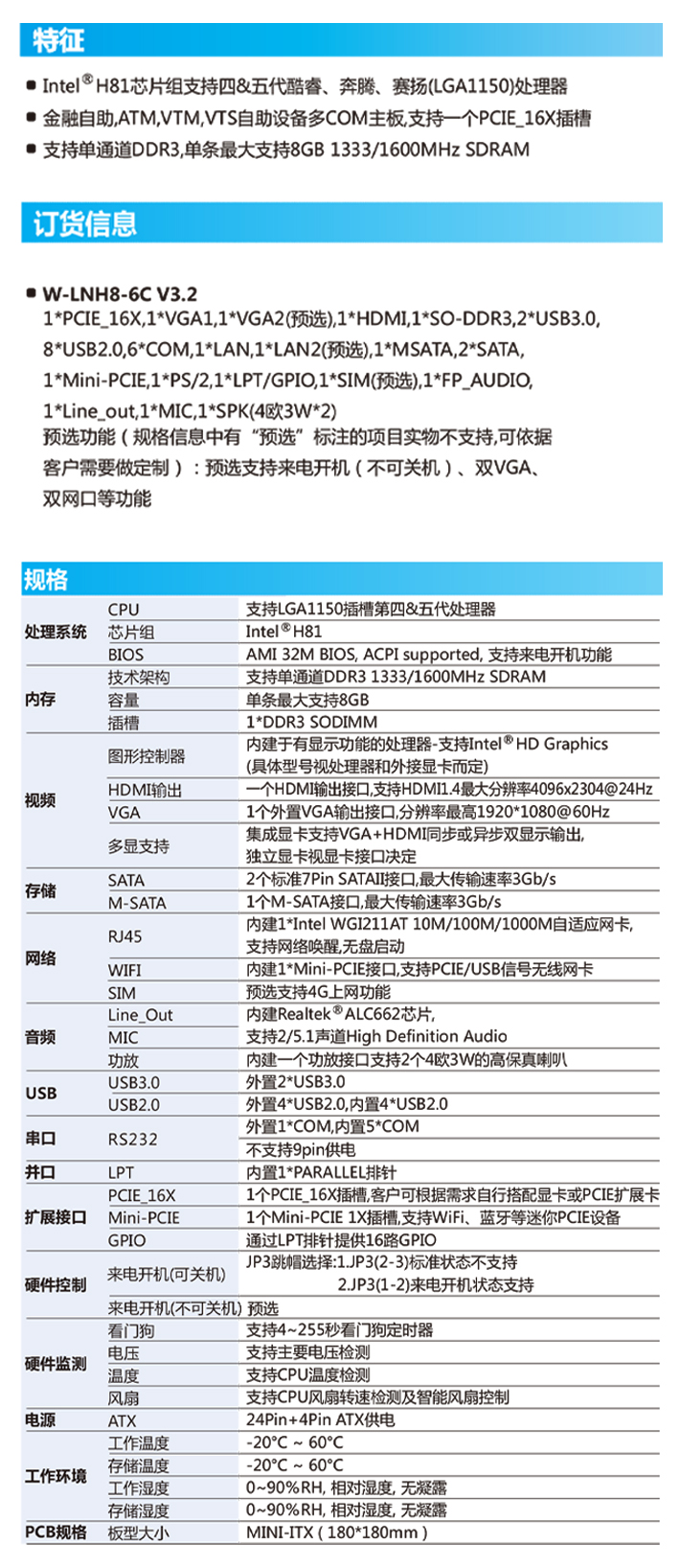

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU slot LGA 1150(Haswell)
South chip intel H81
specification
Memory type DDR3 UDIMM
RAM 1*DDR3 SODIMM
Storage SATA,MSATA
Storage Detail 2*SATA,1*MSATA
USB 2*USB 3.2 Gen1,8*USB2.0
Expandable Slot 1*PCIE 16X
Main board structure MINI-ITX 180*180mm
Power supply mode ATX 24+4 PIN
Number of com 6
Number of usb 10
SATA Number 2
VPRO Optional-Connect us
The graphics sound network
graphics output 1*HDMI,1*VGA
Network chip intel i211AT
Net amount 1

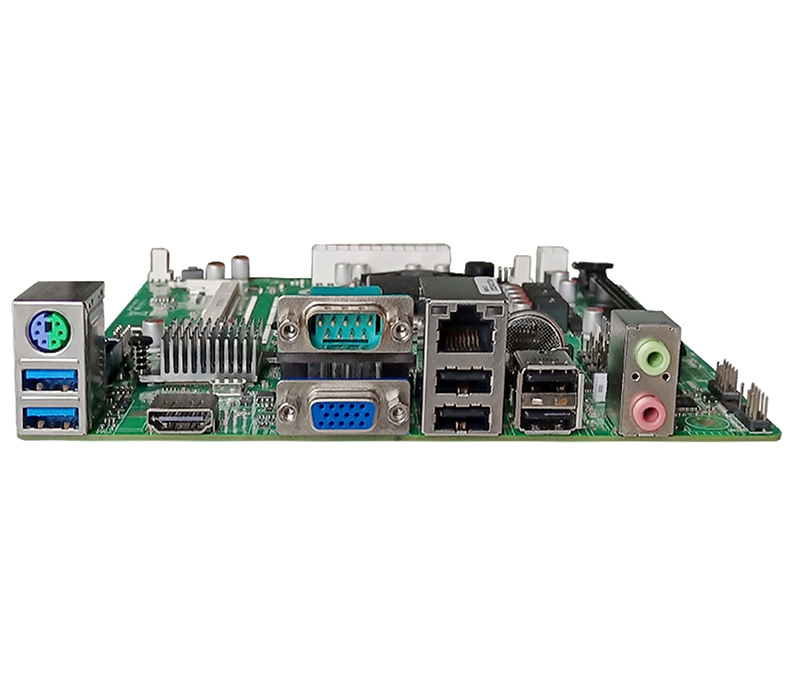

The rear interface
PW_SW 1
