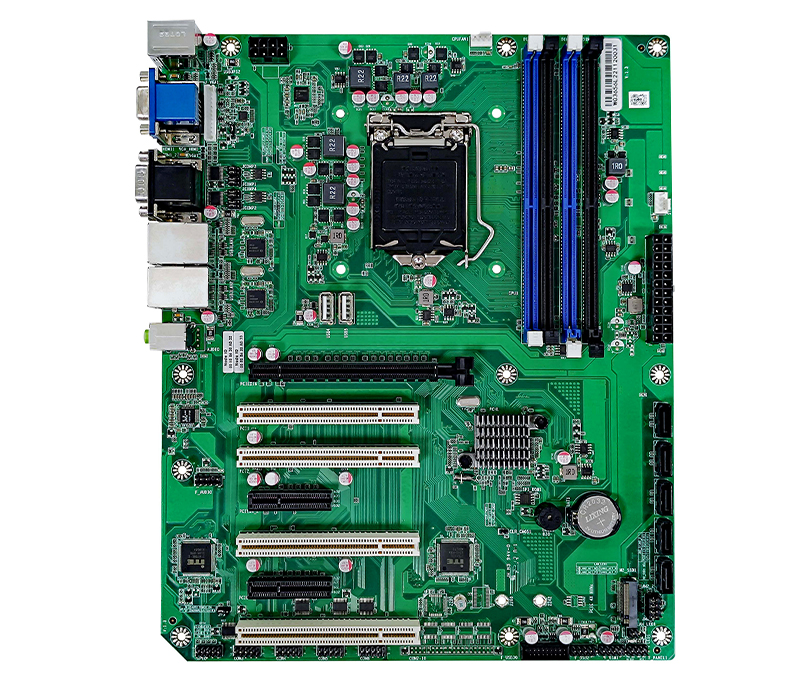

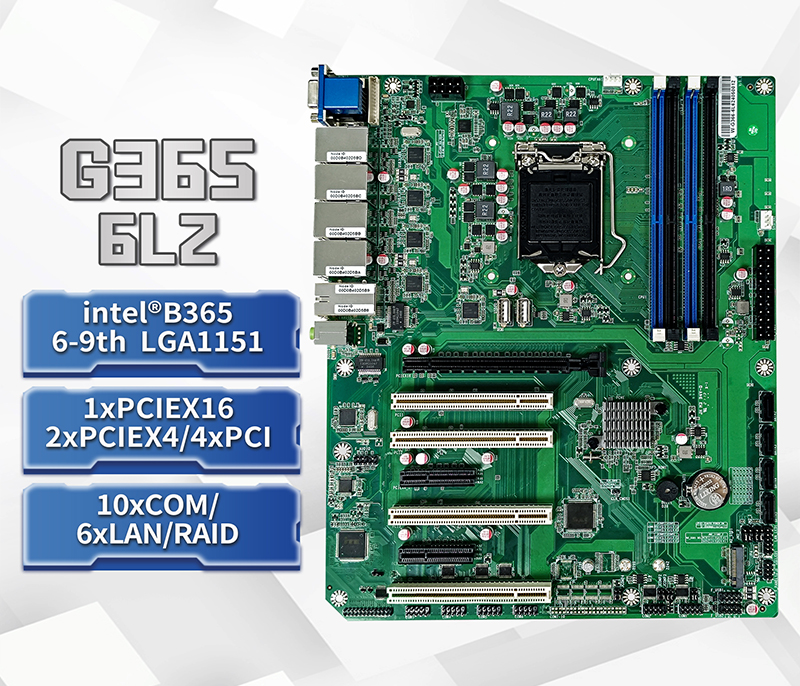

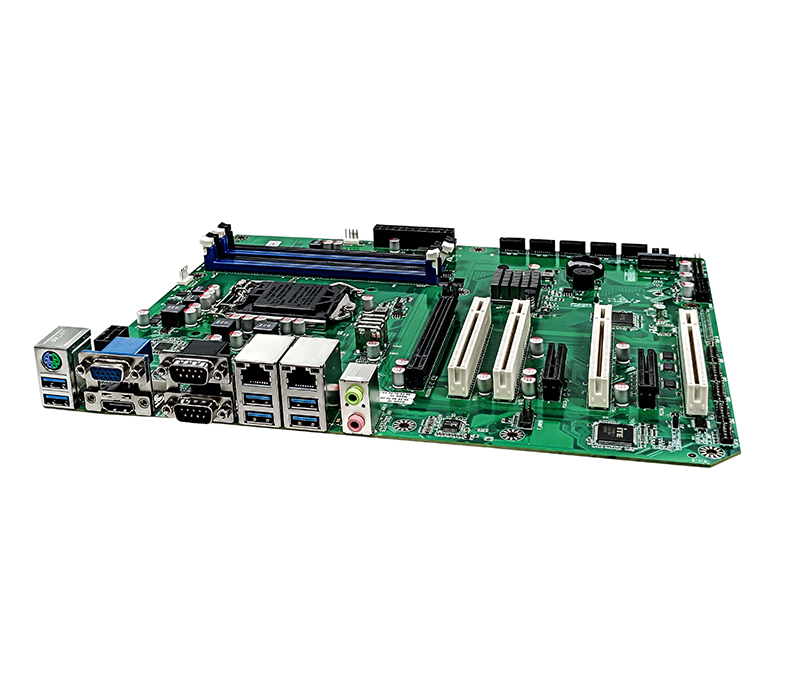

W-G365-6L2 V1.3

Price:¥面议

Intel 6th to 9th generation Celeron/Pentium/Core i3/i5/i7/i9 In LGA1151, B365 4*DDR4 2133~2666MHz UDIMM, Up to 64G maximum 2*INTEL I210

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1151
South chip intel B365

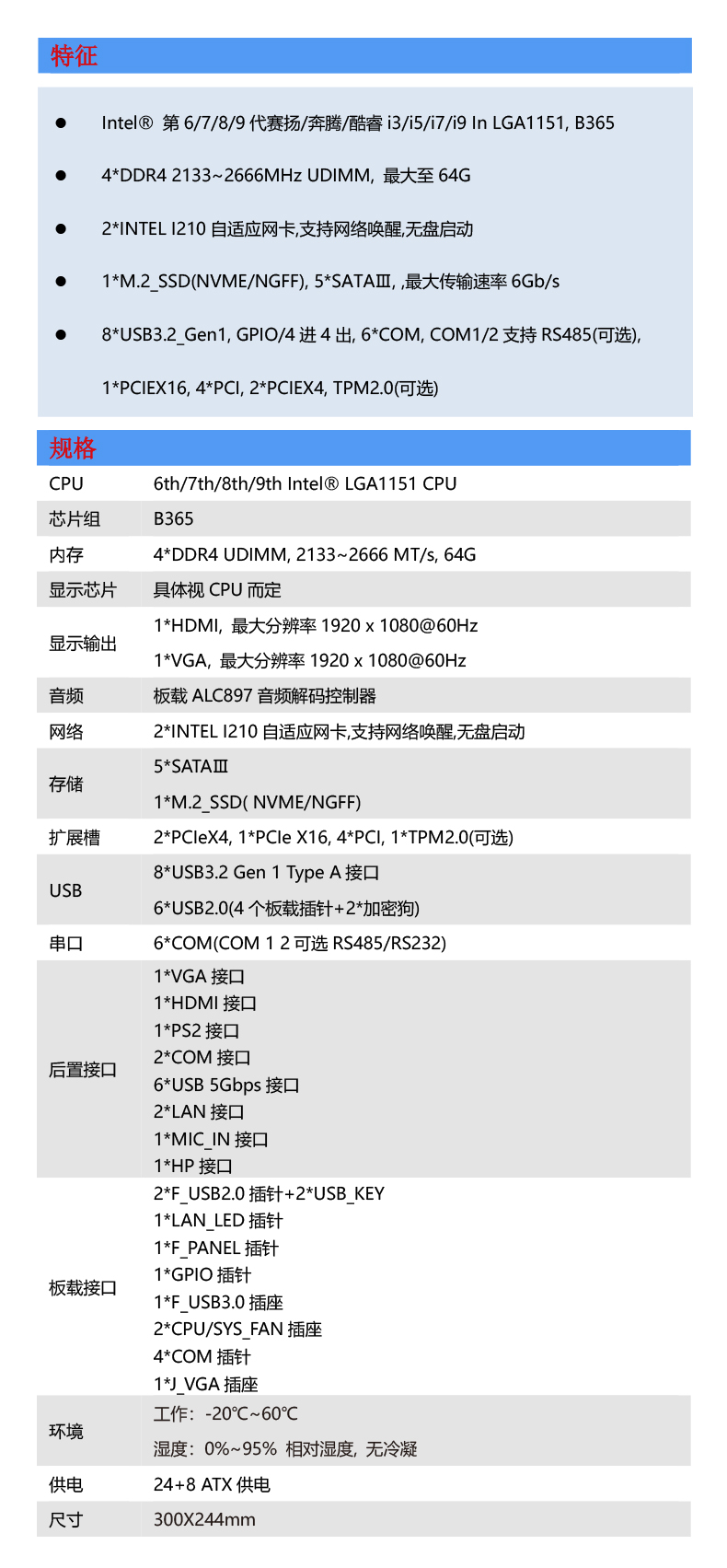

specification
Memory type DDR4 UDIMM
RAM 4*DDR4 UDIMM
Storage SATA,M.2_SSD NVME/NGFF
Storage Detail 1*M.2_SSD,5*SATA
USB 8*USB 3.2 Gen1,6*USB2.0
Expandable Slot 2*PCIE 4X,4*PCI,1*PCIE 16X
Main board structure ATX 300*244mm
Power supply mode ATX 24+8 PIN
Number of com 6
Number of usb 14
SATA Number 5
The graphics sound network
graphics output 1*HDMI,1*VGA
Network chip intl i210
Net amount 2

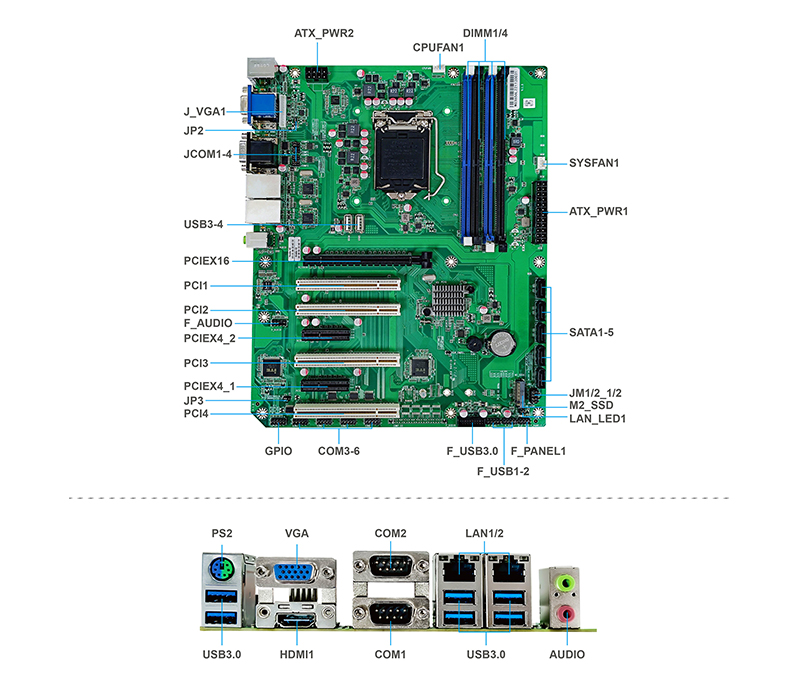

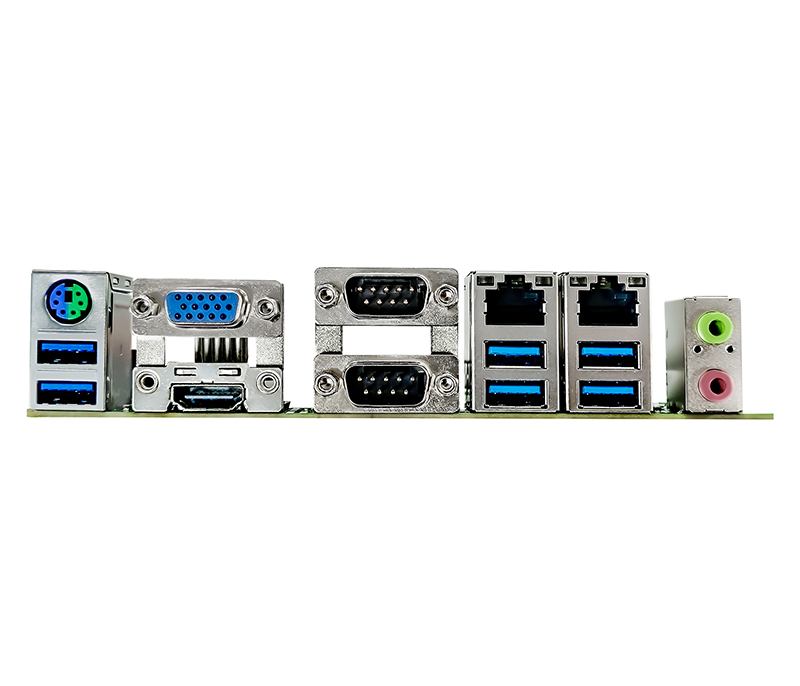

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • Intel ®  6th/7th/8th/9th generation Celeron/Pentium/Core i3/i5/i7/i9 In LGA1151, B365
  • 4*DDR4 2133~2666MHz UDIMM, Up to 64G maximum
  • 2 * INTEL I210 adaptive network card, supports network wake-up, no disk boot
  • 1 * M.2.SSD (NVMe/NGFF), 5 * SATA III, maximum transfer rate of 6Gb/s
  • 8 * USB 32.Gen1, GPIO/4 in/4 out, 6 * COM, COM1/2 supports RS485 (optional)
  • 1 * PCIEX16, 4 * PCI, 2 * PCIEX4, TPM2.0 (optional)
