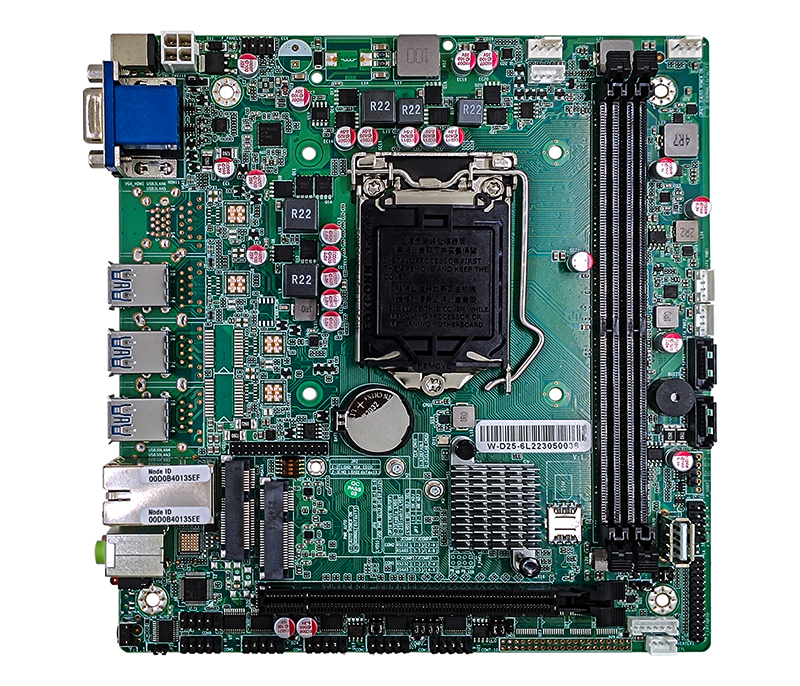

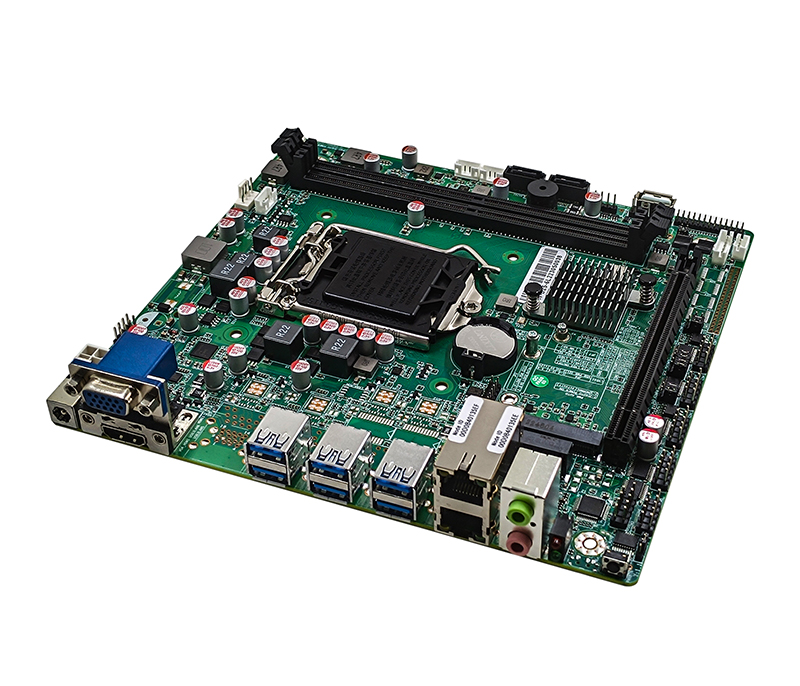

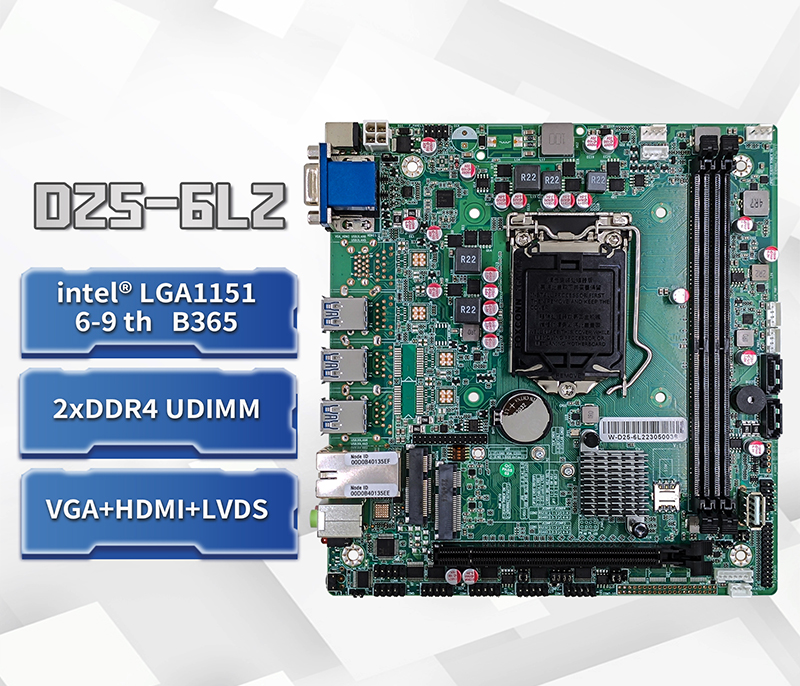

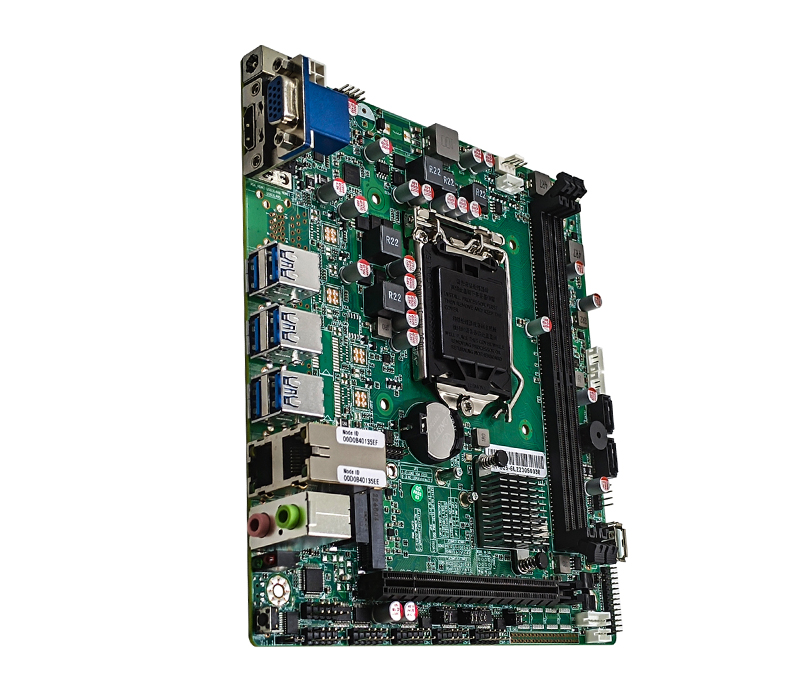

W-D25-6L2 V1.1

Price:¥面议

Intel ® 6-9th Celeron/Pentium/Core i3/i5/i7 In LGA1151 2*DDR4-2133MHz~2666MHz DIMM 2*INTEL I2261000M

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1151
South chip intel B250
specification
Memory type DDR4 SODIMM
RAM 2*DDR4 UDIMM
Storage SATA,MSATA
Storage Detail 1*MSATA,2*SATA
USB 6*USB 3.2 Gen1,4*USB2.0
Expandable Slot 1*SIM,1*MPE,1*PCIE 16X
Main board structure MINI-ITX 180*180mm
Power supply mode DC 24/19V
Number of com 6
Number of usb 10
SATA Number 2
TPM Optional-Connect us
The graphics sound network
graphics output 1*LVDS,1*HDMI,1*VGA
Network chip intel i225
Net amount 2

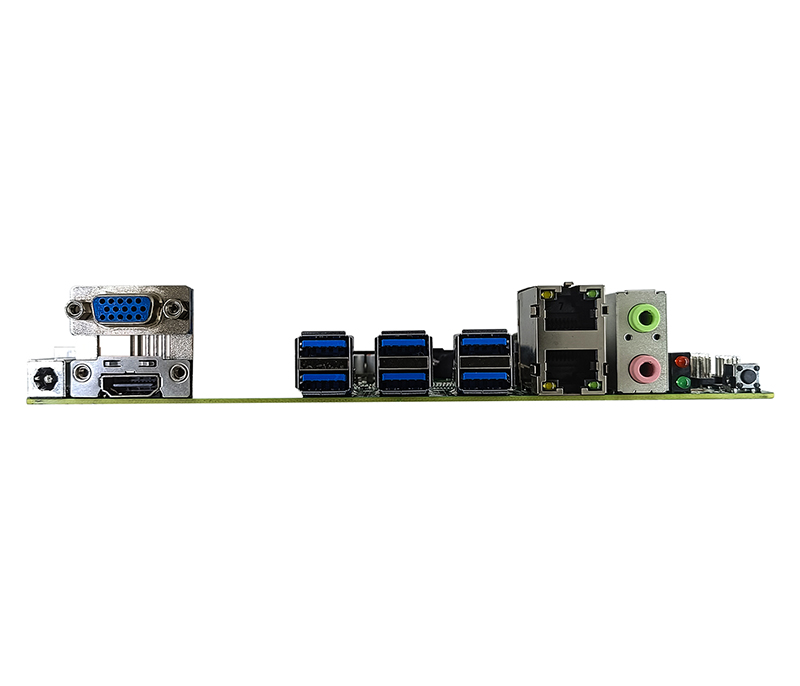

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • Intel ®  6th/7th/8th/9th generation Celeron/Pentium/Core i3/i5/i7 In LGA1151
  • 2*DDR4-2133MHz~2666MHz DIMM, Up to 64G maximum
  • 2 * INTEL I2261000M adaptive network card (LAN1/LAN2) supports network wake-up and diskless boot
  • 1*MSATA , Maximum transmission rate of 6Gb/s, 1 * MPE supports WIFI/4G
  • TPM, LPT/GPIO/8 input and output, 6 * RS232 (optional 10COM), COM1/2 supports RS485 (optional)
