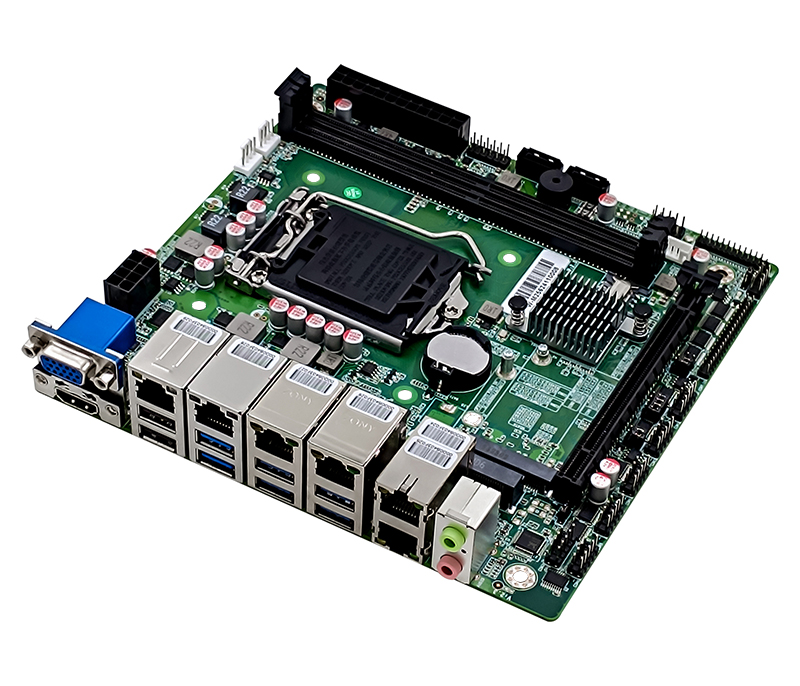

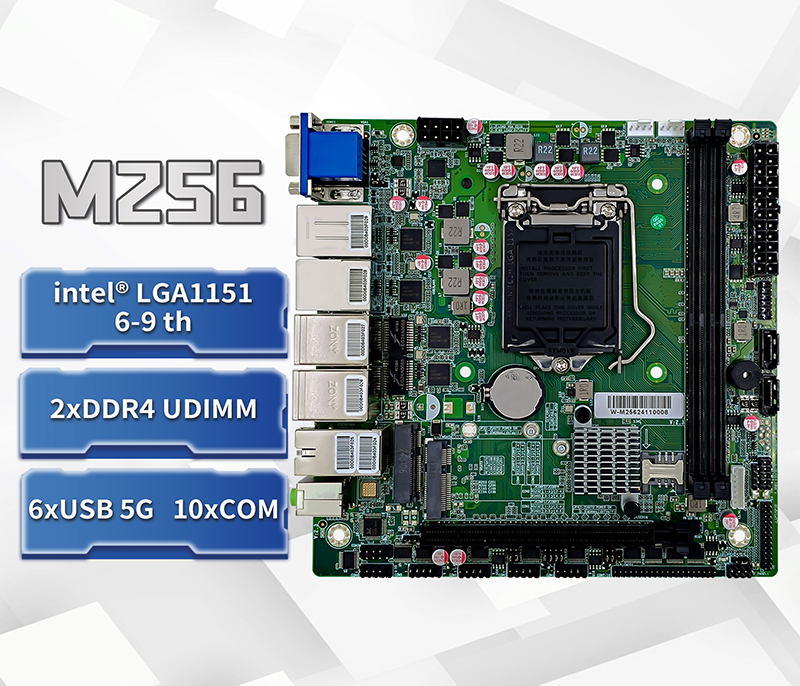

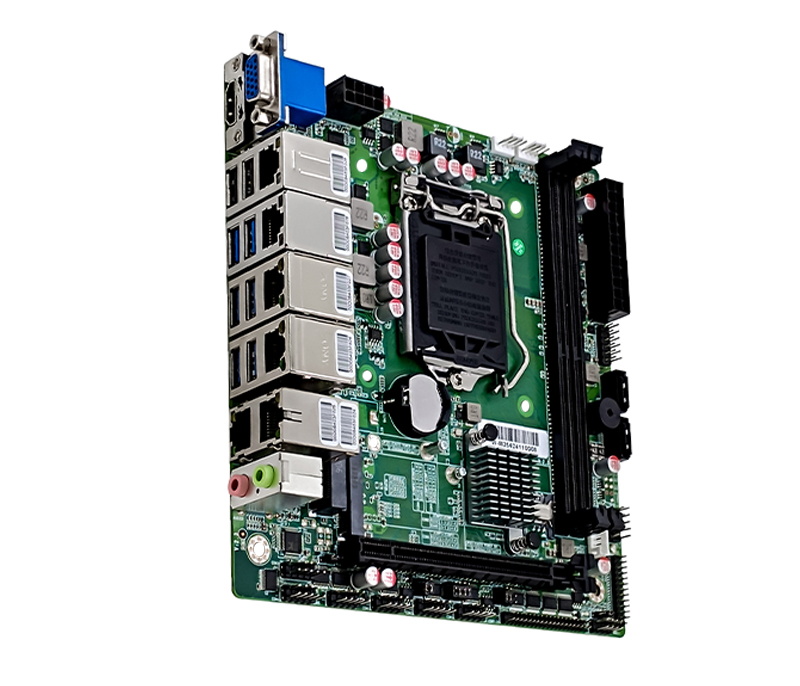

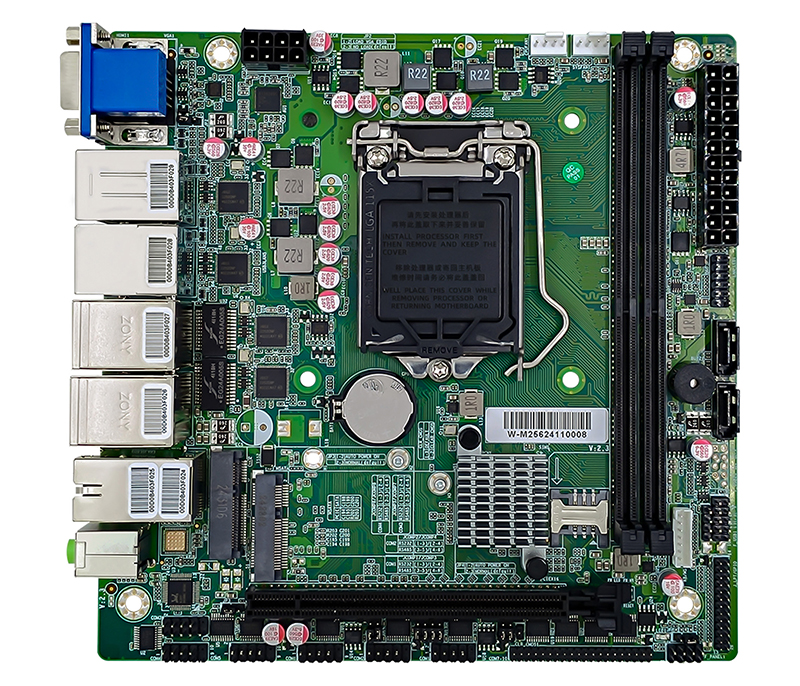

W-M256 V2.3

Price:¥面议

Compatible with 6-9th generation Intel LGA1151, dual DDR4 (up to 32GB) 6 Ethernet ports support wake-up/diskless operation

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1151
South chip intel B250
specification
Memory type DDR4 UDIMM
RAM 2*DDR4 UDIMM
Storage SATA,MSATA
Storage Detail 2*SATA,1*MSATA
USB 5*USB2.0,6*USB 3.2 Gen1
Expandable Slot 1*SIM(可加),1*PCIE 16X,1*MPE
Main board structure MINI-ITX 180*180mm
Power supply mode ATX 24+8 PIN
Number of com 6
Number of usb 11
SATA Number 2
TPM Optional-Connect us
The graphics sound network
graphics output 1*HDMI,1*VGA
Network chip intl i210
Net amount 6

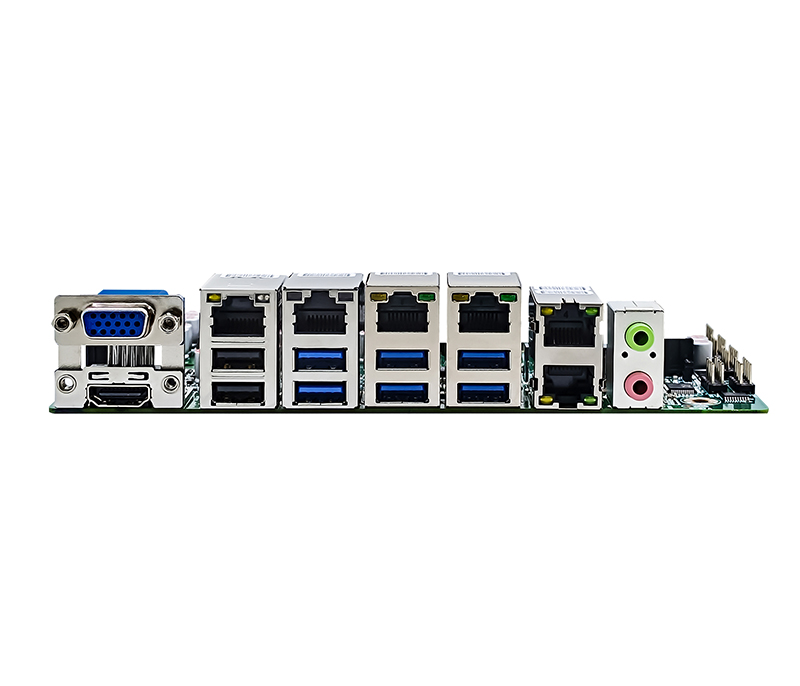

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

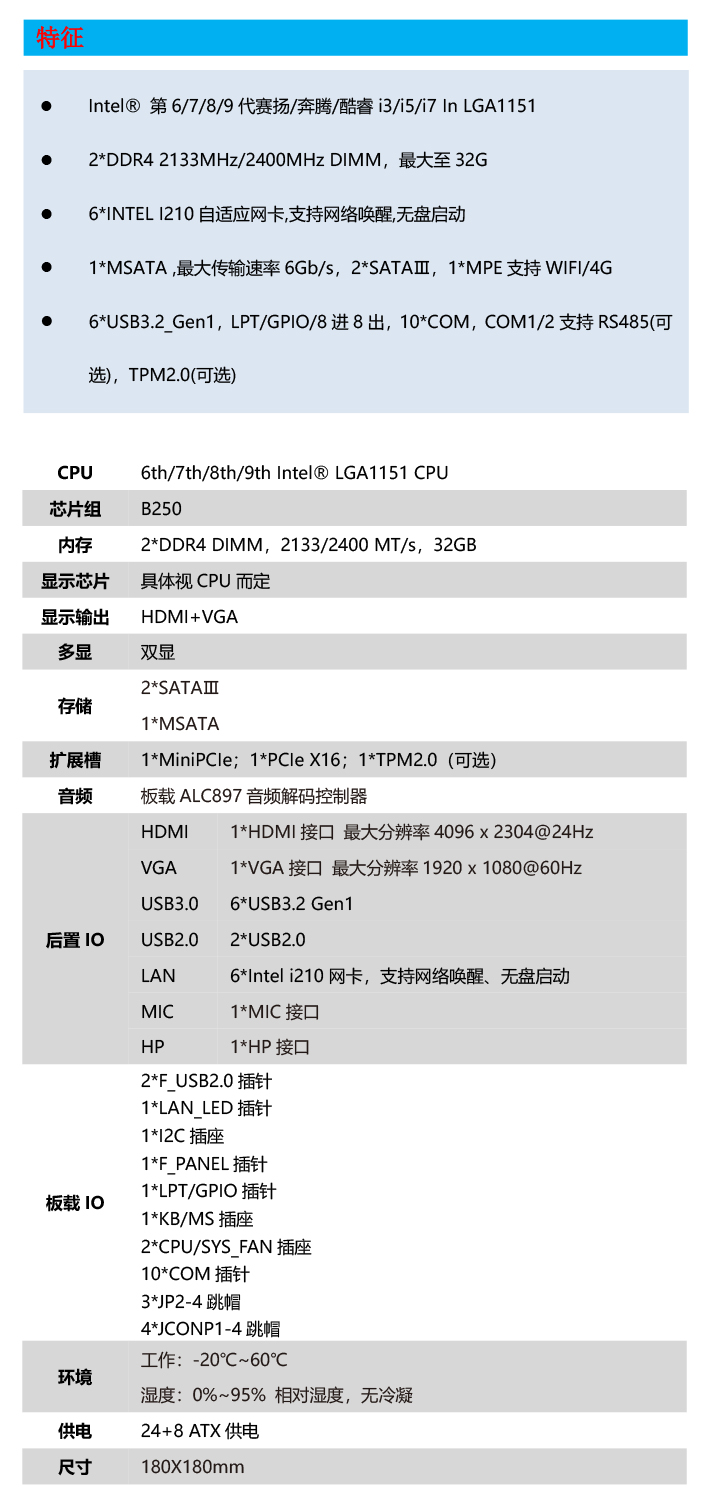

  • Intel ® 6-9th generation Celeron/Pentium/Core i3/i5/i7InLGA1151
  • 2*DDR42133MHz/2400MHzDIMM, Up to 32GB maximum
  • 6 * INTELI210 adaptive network card, supports network wake-up, no disk boot
  • 1*MSATA, Maximum transmission rate of 6Gb/s, 2 * SATA III, 1 * MPE supporting WIFI/4G
  • 6 * USB 32.Gen1, LPT/GPIO/8 input and 8 output, 10 * COM, COM1/2 supports RS485 (optional)
  • Optional), TPM2.0 (optional)
