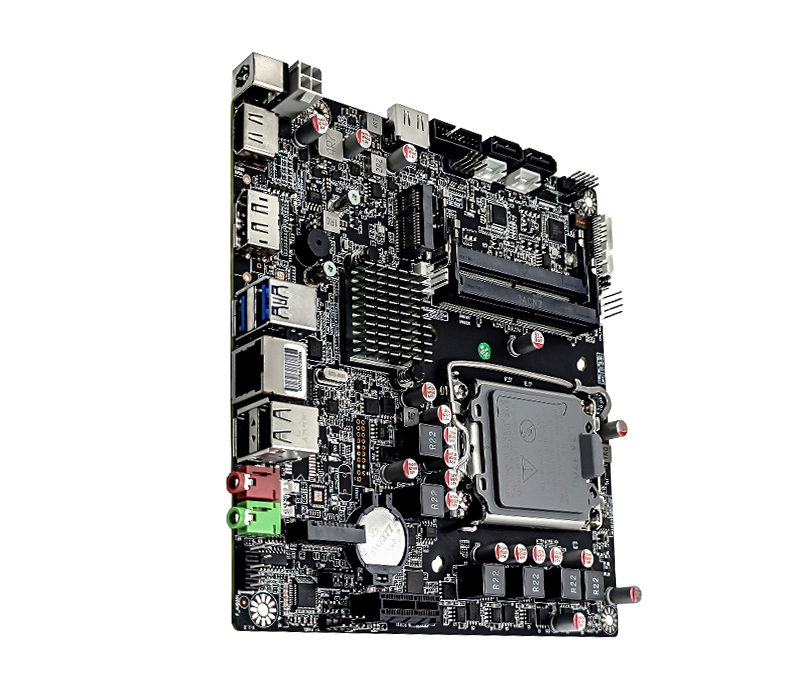

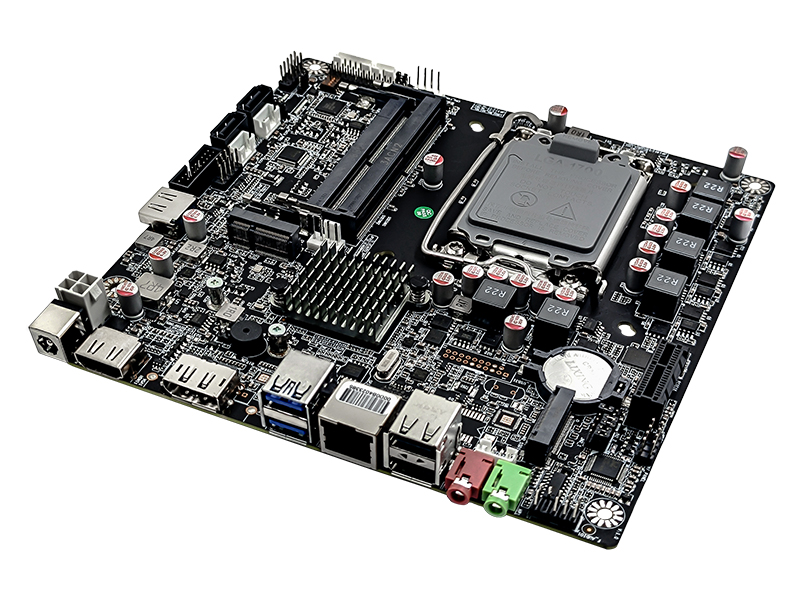

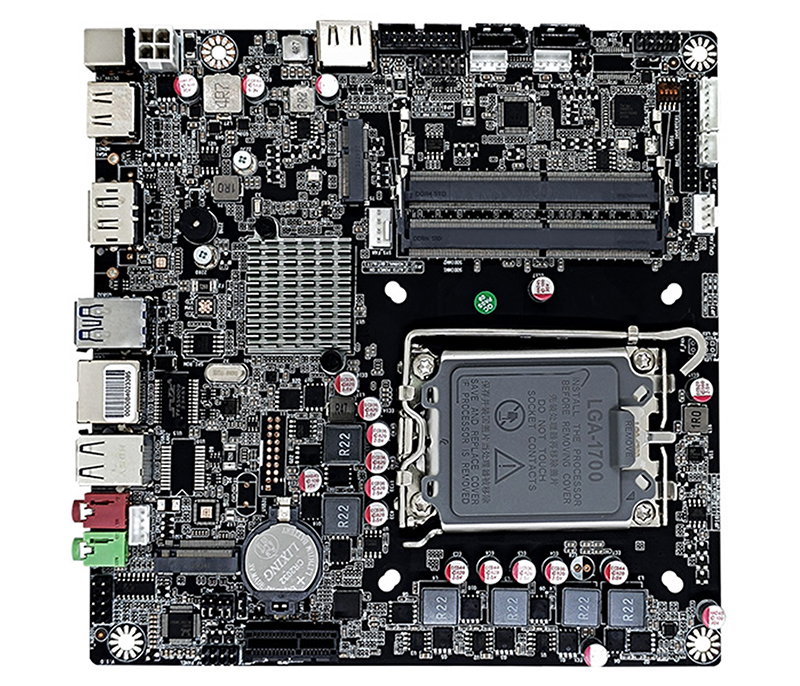

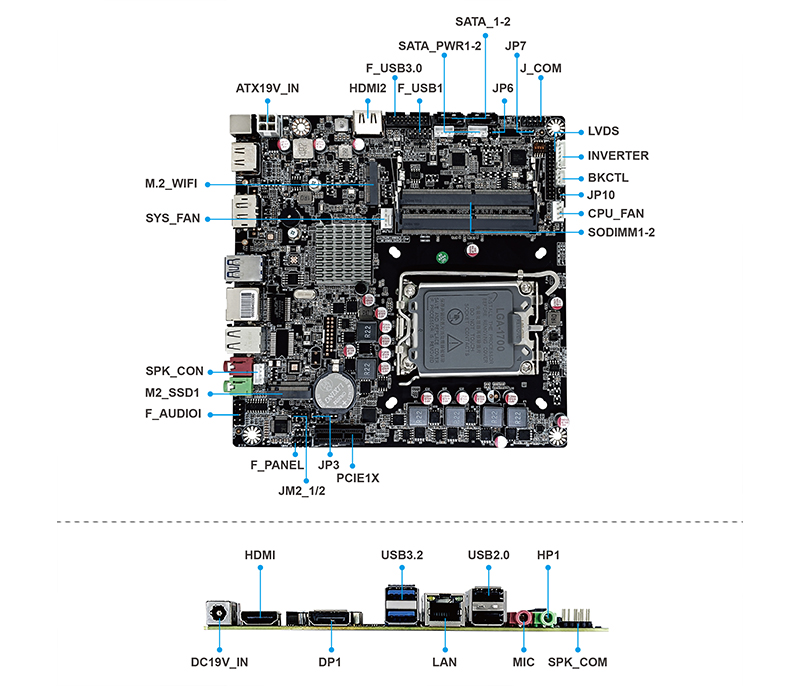

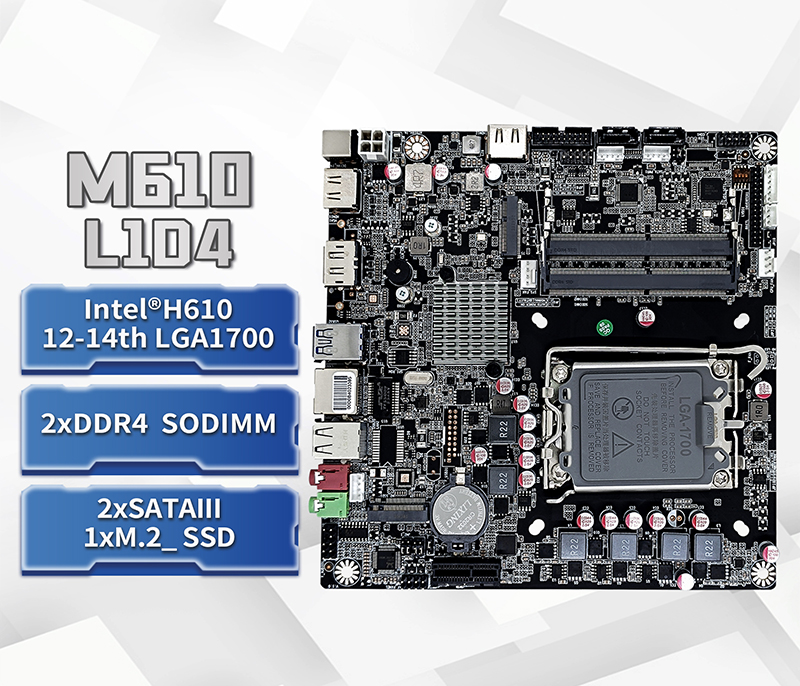

W-M610-L1D4 V1.0

Price:¥面议

Supports 12/13/14 generations LGA1700 CPU+H610, 64G DDR4 3200Hz memory, triple display expansion

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

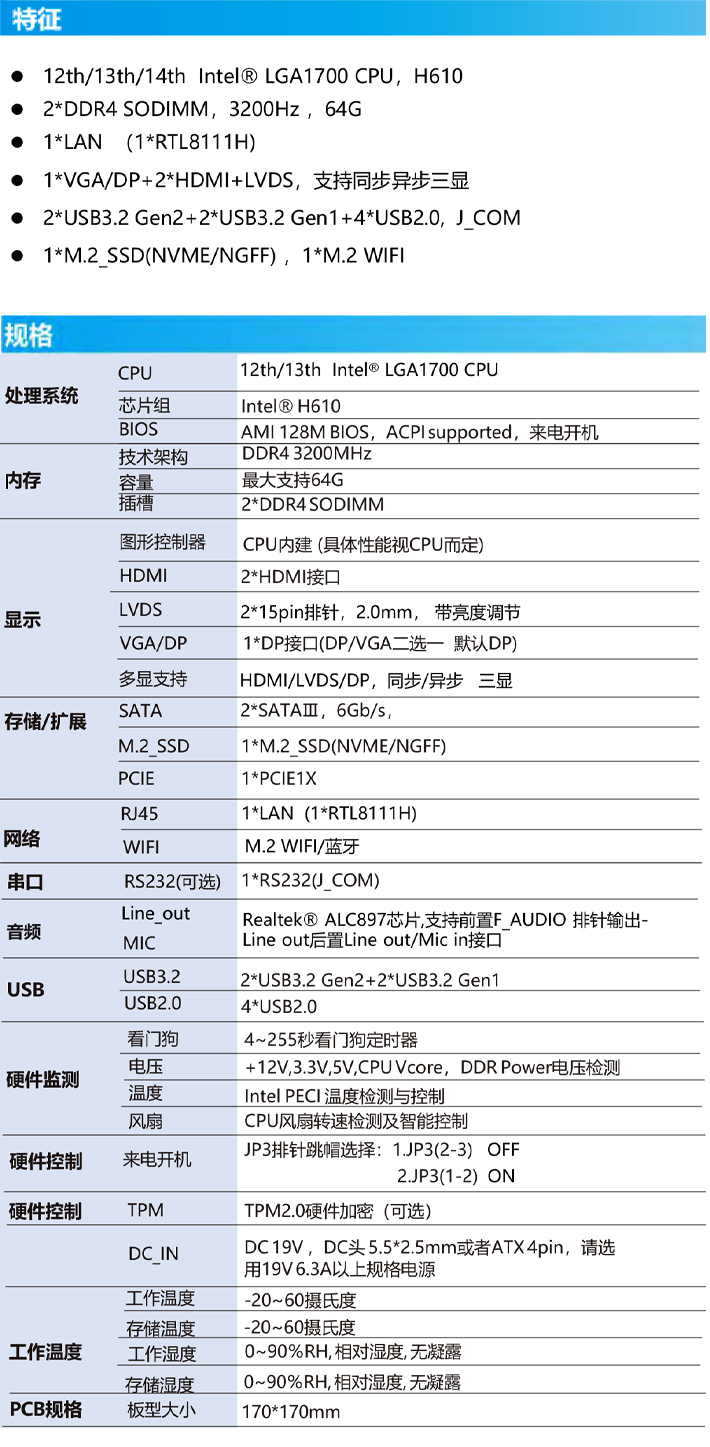

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1700
South chip intel H610
specification
Memory type DDR4 UDIMM
RAM 2*DDR4 SODIMM
Storage M.2_SSD NVME/NGFF,SATA
Storage Detail 2*SATA,1*M.2_SSD
USB 6*USB2.0,2*USB 3.2 Gen2,2*USB 3.2 Gen1
Expandable Slot 1*M.2 WIFI,1*PCIE 1X
Main board structure ITX 170*170mm
Power supply mode DC 19V
Number of usb 10
SATA Number 2
TPM Optional-Connect us
VPRO Optional-Connect us
The graphics sound network
graphics output 1*DP,1*LVDS,1*HDMI
Network chip RTL8111
Net amount 1

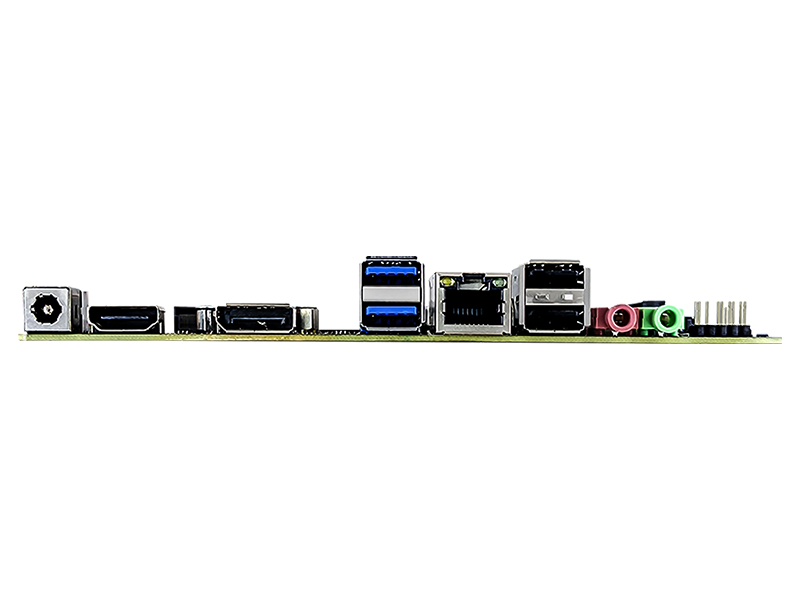

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • 12th/13th/14th  Intel ®  LGA1700 CPU,H610
  • 2*DDR4 SODIMM,3200Hz ,64G
  • 1*LAN  (1*RTL8111H)
  • 1*VGA/DP+2*HDMI+LVDS, Support synchronous asynchronous triple display
  • 2*USB3.2 Gen2+2*USB3.2 Gen1+4*USB2.0,  J_COM
  • 1*M.2_SSD(NVME/NGFF) ,1*M.2 WIFI
