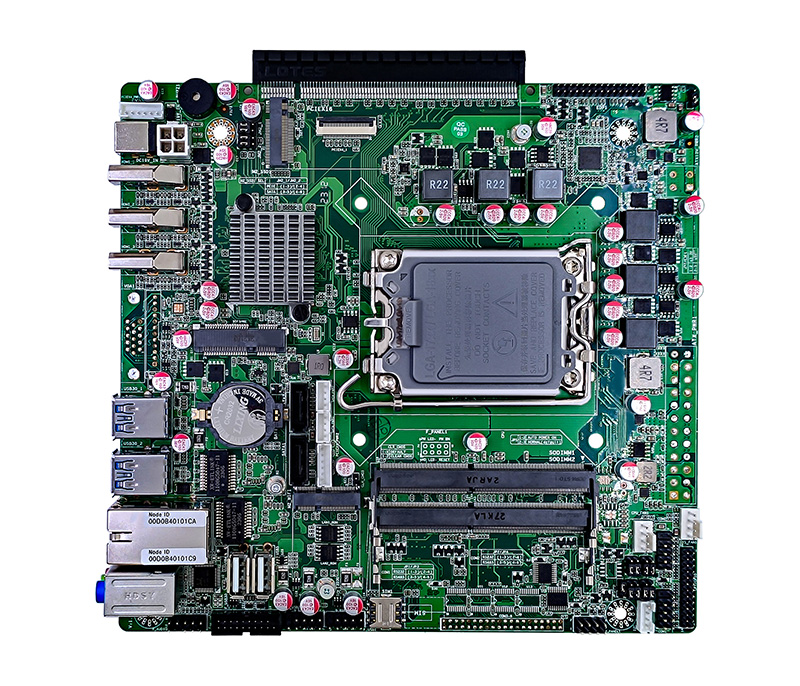

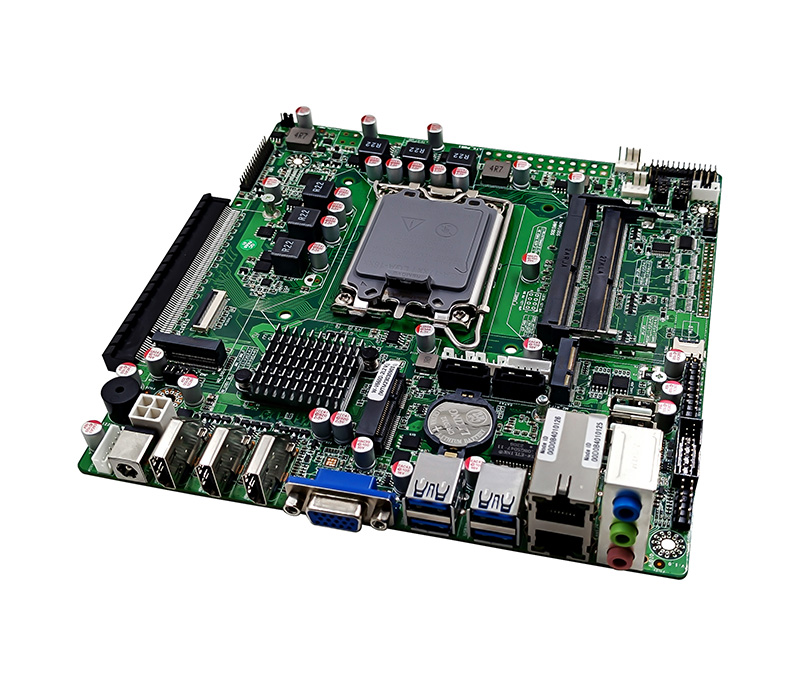

W-V660D-2L2 V1.0

Price:¥面议

12th generation Core LGA1700, Intel B660 chipset Dual Ethernet ports+M2-WIFI+4G module Multi display interface (VGA/HDMI/EDP)

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

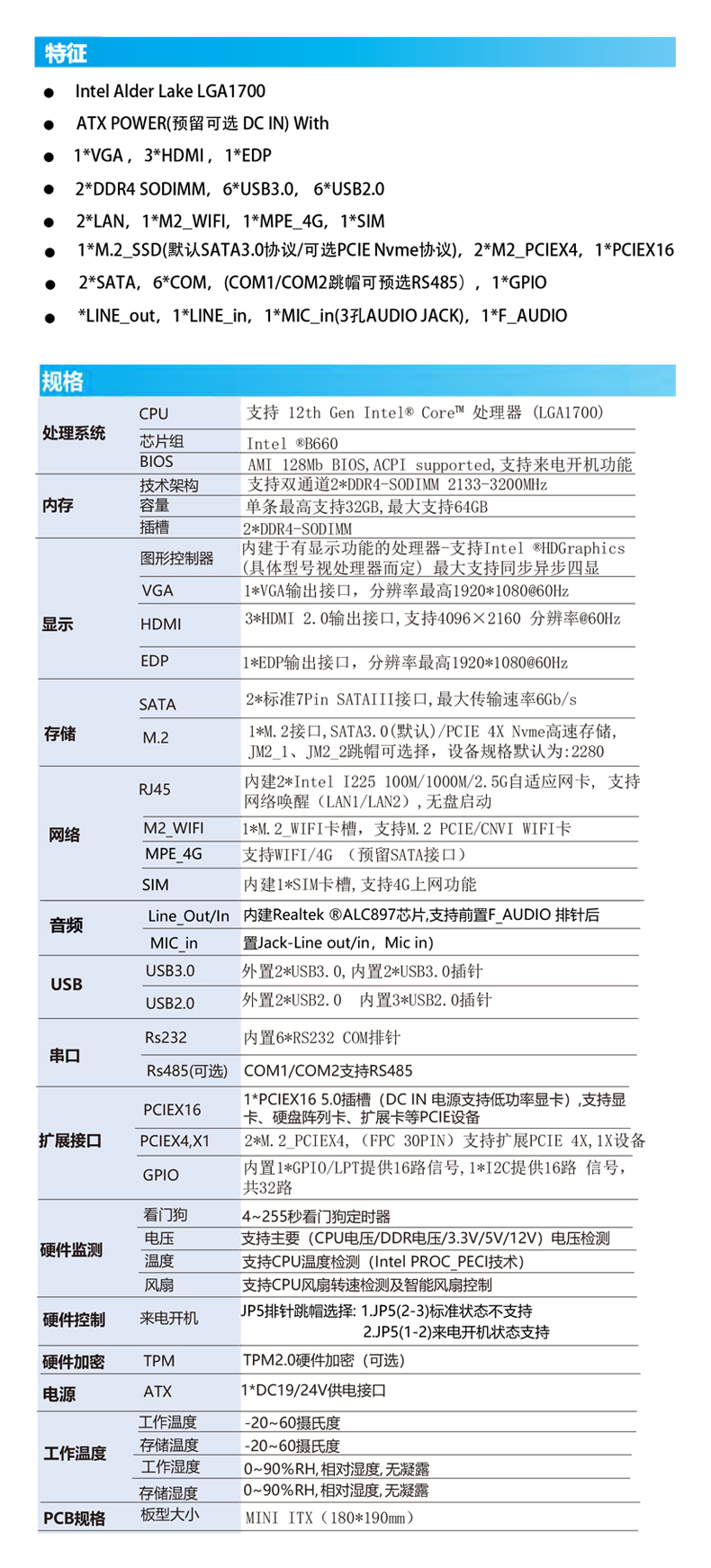

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1700
South chip intel B660
specification
Memory type DDR4 UDIMM
RAM 2*DDR4 SODIMM
Storage M.2_SSD NVME/NGFF,SATA
Storage Detail 1*M.2_SSD,2*SATA
USB 6*USB2.0,6*USB 3.2 Gen1
Expandable Slot 2*PCIE 4X,1*MPE,1*PCIE 16X
Main board structure 180*190mm
Power supply mode DC 19V
Number of com 2
Number of usb 12
SATA Number 2
TPM Optional-Connect us
The graphics sound network
graphics output EDP,3*HDMI
Network chip intel i226
Net amount 2

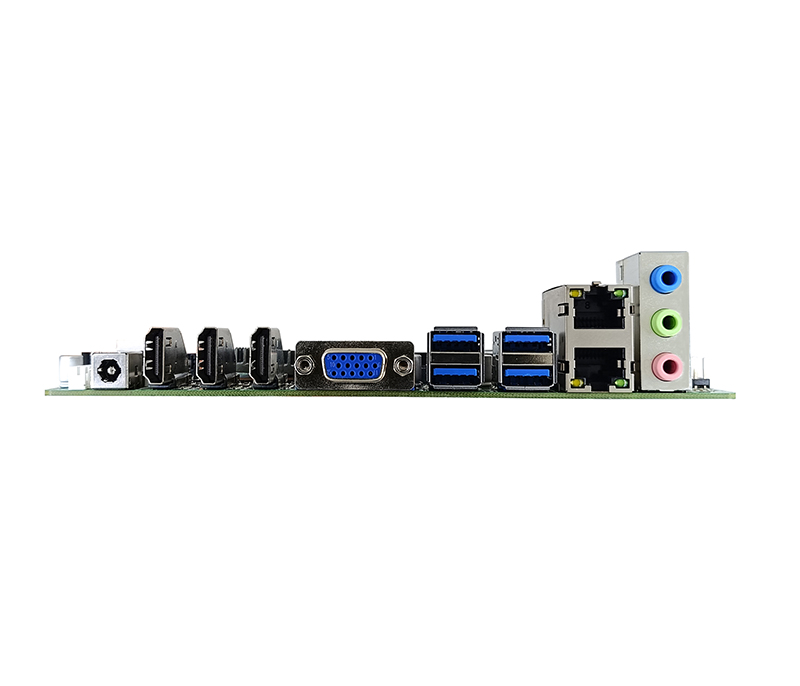

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054
