W-M6D5-B760 V1.0

Price:¥面议

12th/13th/14th Intel LGA1700 CPU, Q670 (supports Vpro) 2*DDR5SODIMM,96GB 1*DP+2*HDMI+1*LVDS, Multiple display interfaces can be freely combined

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1700
South chip intel B760
specification
Memory type DDR5 SODIMM
RAM 2*DDR5 SODIMM
Storage SATA,M.2_SSD NVME/NGFF
Storage Detail 1*M.2_SSD,2*SATA
USB 4*USB 3.2 Gen1,4*USB2.0,2*USB 3.2 Gen1
Expandable Slot 1*M.2 WIFI
Main board structure ITX 170*170mm
Power supply mode DC 19V
Number of usb 10
SATA Number 2
TPM Optional-Connect us
VPRO YES
The graphics sound network
graphics output 1*LVDS,1*DP,2*HDMI
Network chip RTL8111
Net amount 1

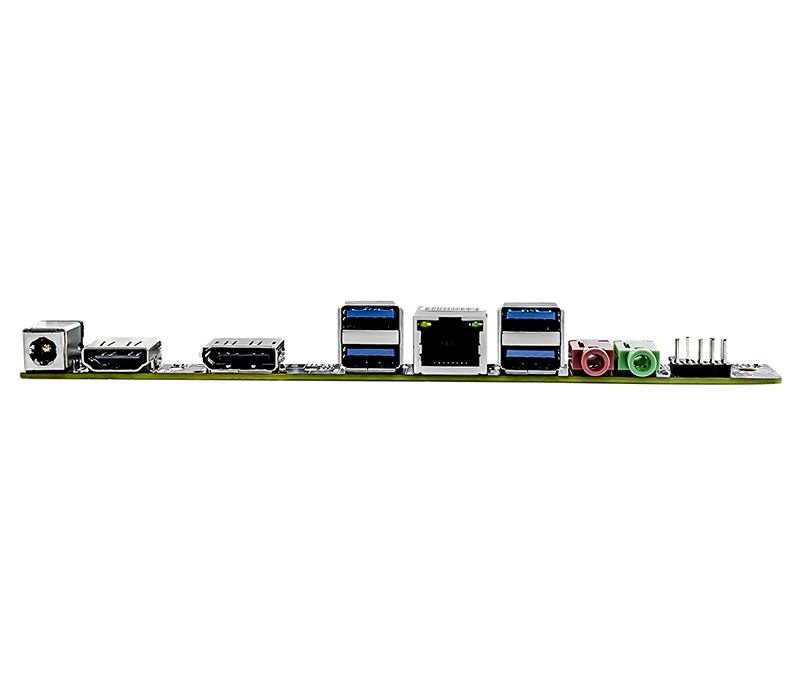

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

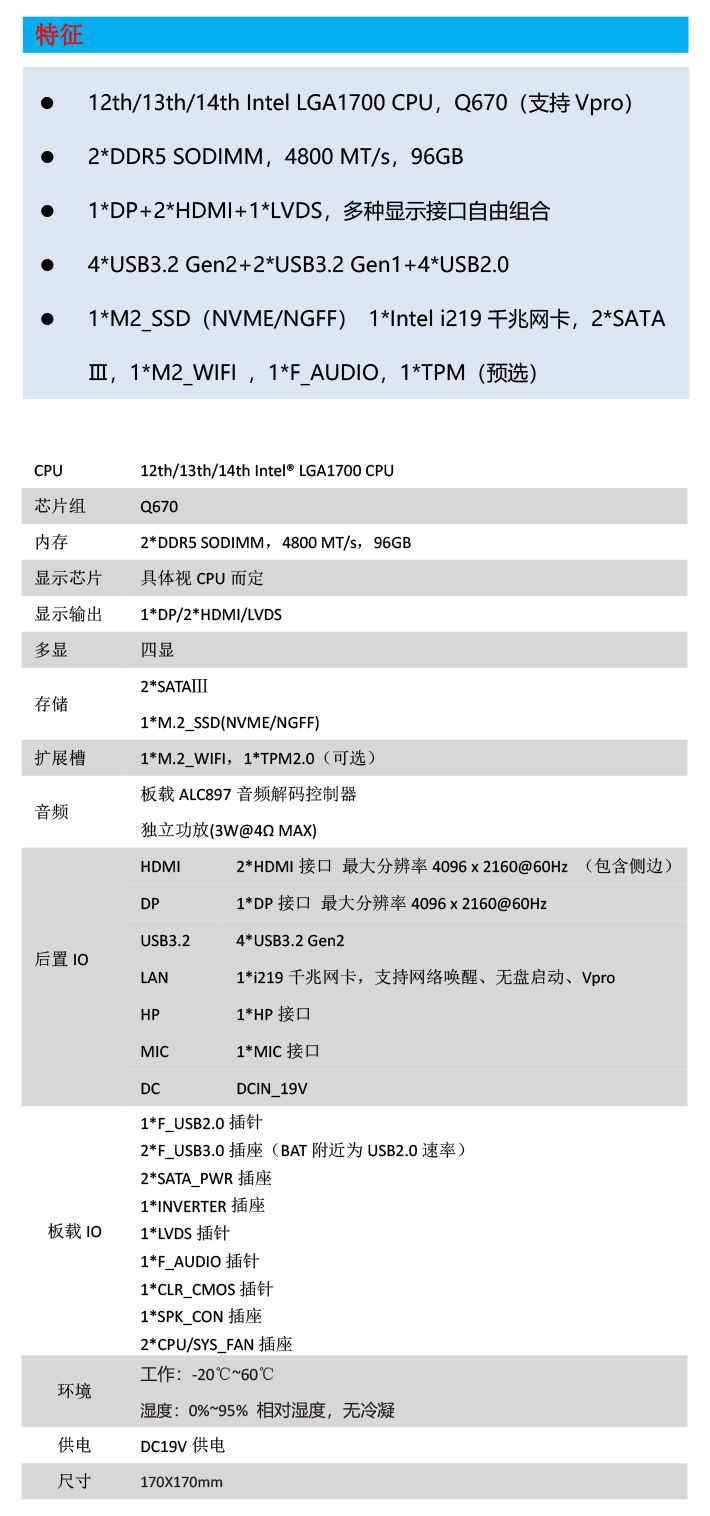

  • 12th/13th/14th Intel LGA1700 CPU, Q670 (supports Vpro)
  • 2*DDR5SODIMM,4800MT/s,96GB
  • 1*DP+2*HDMI+1*LVDS, Multiple display interfaces can be freely combined
  • 4*USB3.2Gen2+2*USB3.2Gen1+4*USB2.0
  • 1 * M2_SSD (NVMe/NGFF) 1 * Intel i219 Gigabit Network Card, 2 * SATA
  • 1 * M2-WIFI, 1 * F_AUDIO, 1 * TPM (pre selected)
