B360-S24 V1.0

Price:¥面议

12-14 generations LGA1700 CPU, H610 chipset, 64G DDR4 expansion Wide temperature operation (-20~60 ℃), hardware monitoring+power on upon call

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

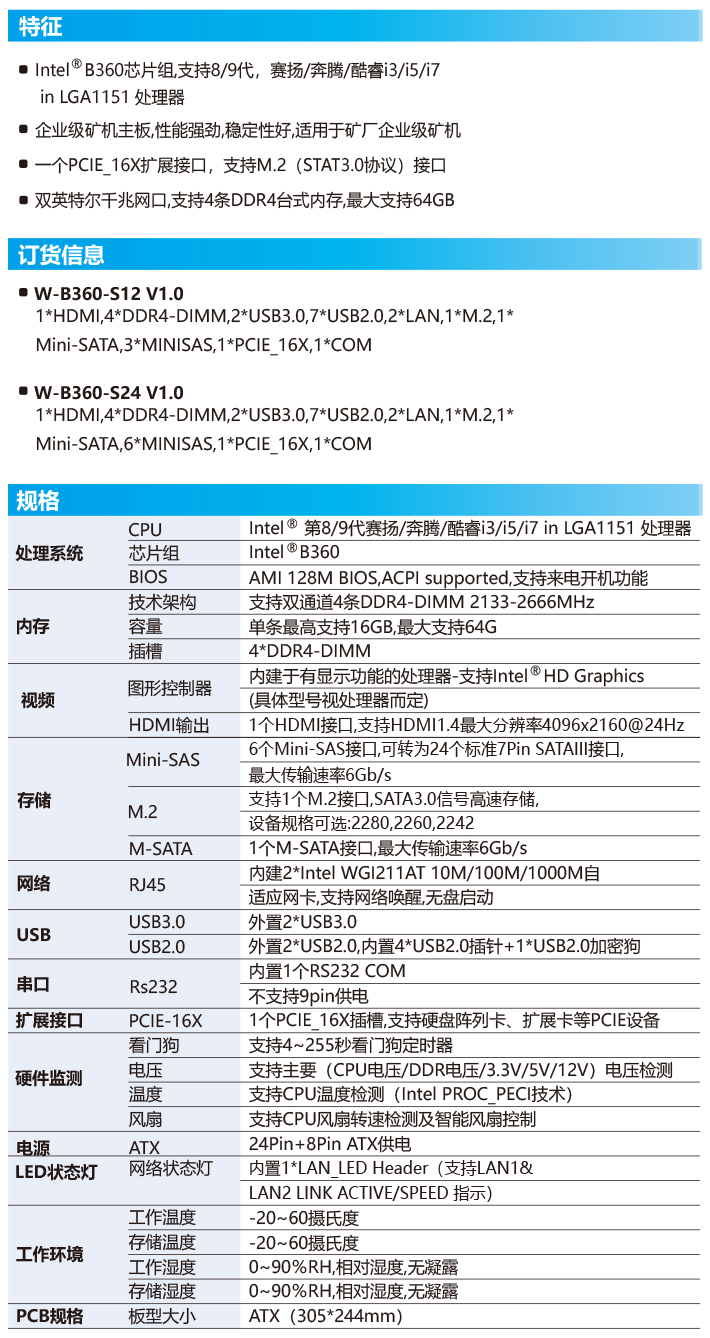

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1151
South chip Intel B360
specification
Memory type DDR4 UDIMM
RAM 4*DDR4 UDIMM
Storage MSATA,SATA,M.2_SSD NVME/NGFF
Storage Detail 6*SATA,1*M.2_SSD,1*MSATA
USB 2*USB 3.2 Gen1,7*USB2.0
Expandable Slot 1*PCIE 16X
Main board structure ATX 305*244mm
Power supply mode ATX 24+8 PIN
Number of com 1
Number of usb 9
SATA Number 6
The graphics sound network
graphics output 1*HDMI
Network chip intel i211AT
Net amount 2
The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • Intel B360 chipset, supporting 8th/9th generation, Celeron/Pentium/Core i3/i5/i7
  • LGA1151 processor
  • Enterprise level mining machine motherboard, with strong performance and good stability, suitable for mining factory enterprise level mining machines
  • One PCIE_16X extension interface, supporting M.2 (STAT3.0 protocol) interface
  • Dual Intel Gigabit Ethernet ports, supporting 4 DDR4 desktop memories, with a maximum support of 64GB
