W-MT8I5-6 V1.1

Price:¥面议

Intel i5 - 8257U, 4 cores and 8 threads, Dual DDR4, supports 32GB memory M.2+multiple serial ports Gigabit Ethernet+4G/5G

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

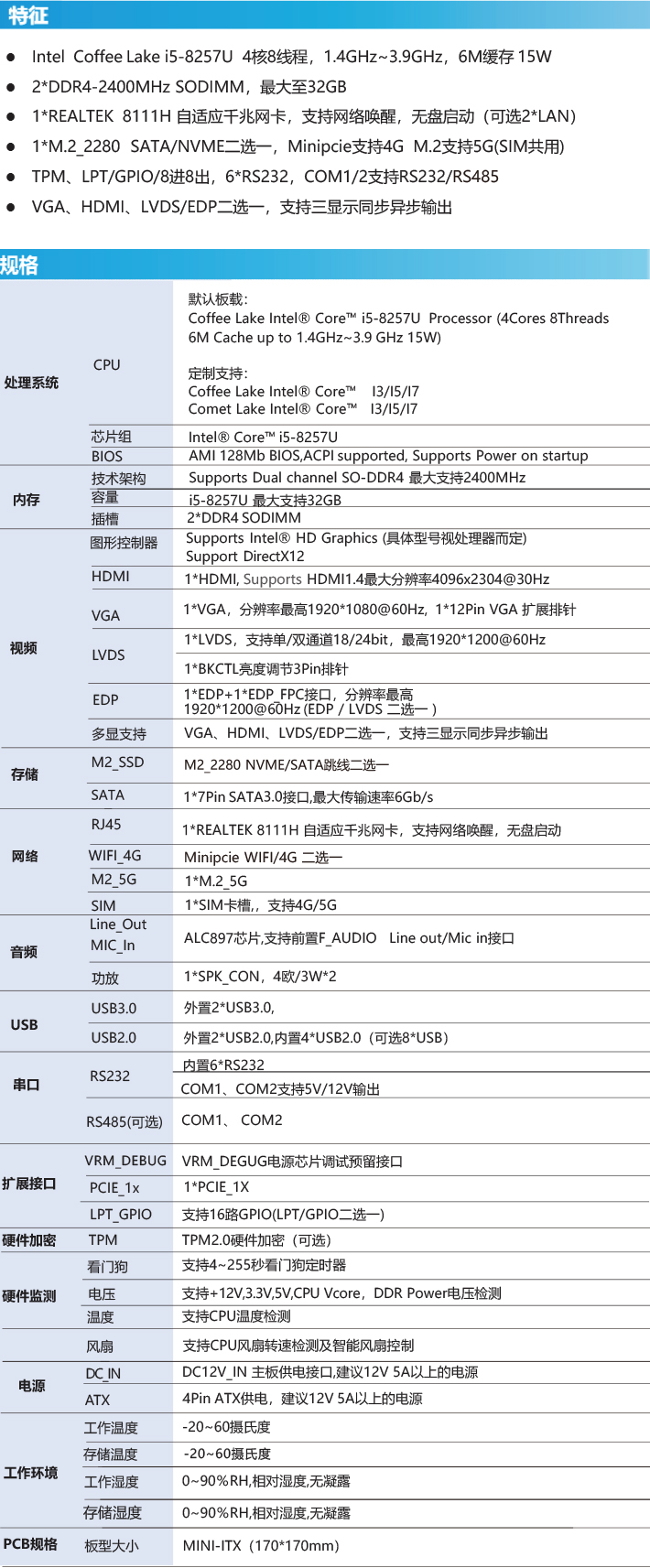

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU Intel i5-8257U
CPU slot On-board CPU
South chip Intel i5-8257U
specification
Memory type DDR4 SODIMM
RAM 2*DDR4 SODIMM
Storage M.2_SSD NVME/NGFF,SATA
Storage Detail 1*SATA,1*M.2_SSD
USB 8*USB2.0,2*USB 3.2 Gen1
Expandable Slot 1*PCIE 1X
Main board structure ITX 170*170mm
Power supply mode DC 12V
Number of com 6
Number of usb 10
SATA Number 1
TPM Optional-Connect us
The graphics sound network
graphics output 1*VGA,1*HDMI,1*LVDS,EDP
Network chip RTL8111
Net amount 1

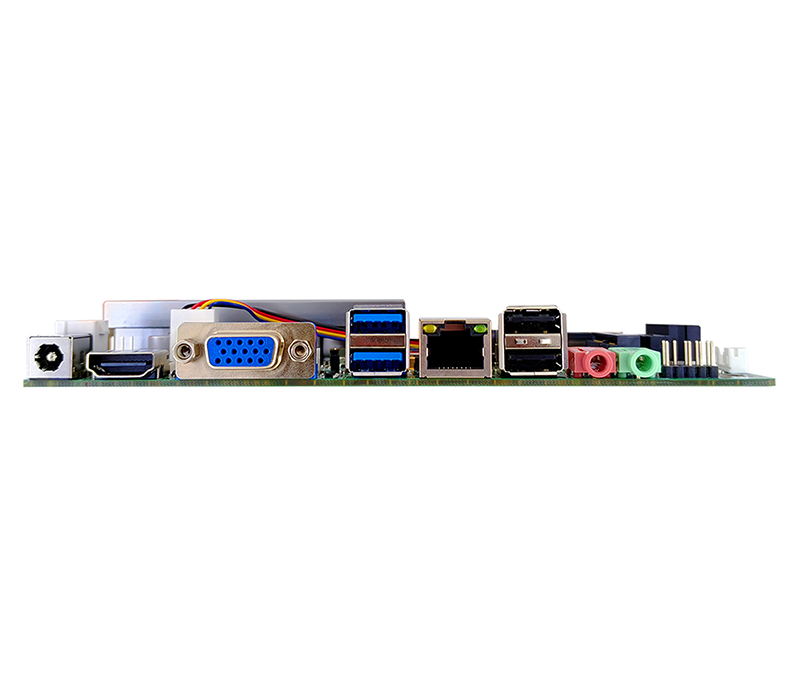

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • Intel Coffee Lake i5-8257U 4-core 8-thread, 1.4GHz~3.9GHz, 6M cache 15W
  • 2*DDR4-2400MHz SODIMM, Up to 32GB maximum
  • 1 * REALTEK 8111H adaptive gigabit network card, supports network wake-up, no disk boot (optional 2 * LAN)
  • 1 * M.2/2280 SATA/NVME, Minipcie supports 4G, M.2 supports 5G (SIM shared)
  • TPM, LPT/GPIO/8 in/out, 6 * RS232, COM1/2 supports RS232/RS485
  • VGA, HDMI, LVDS/EDP optional, supporting synchronous and asynchronous output for three displays
