W-M6D4C-Q67 V1.0

Price:¥面议

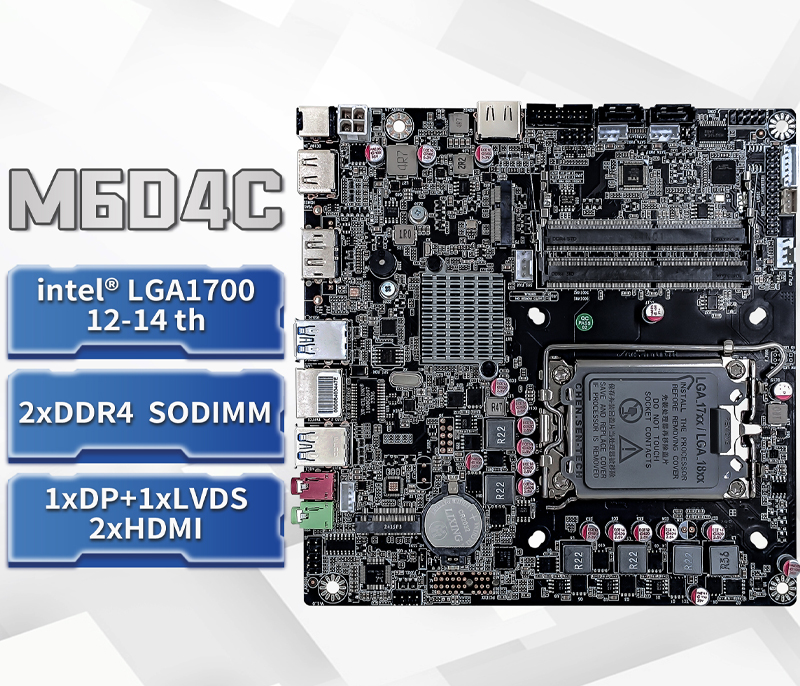

Supports 12-14th generation LGA1700 CPU Dual DDR4+Q670 chipset M. 2/SATA storage+multi display interface

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service

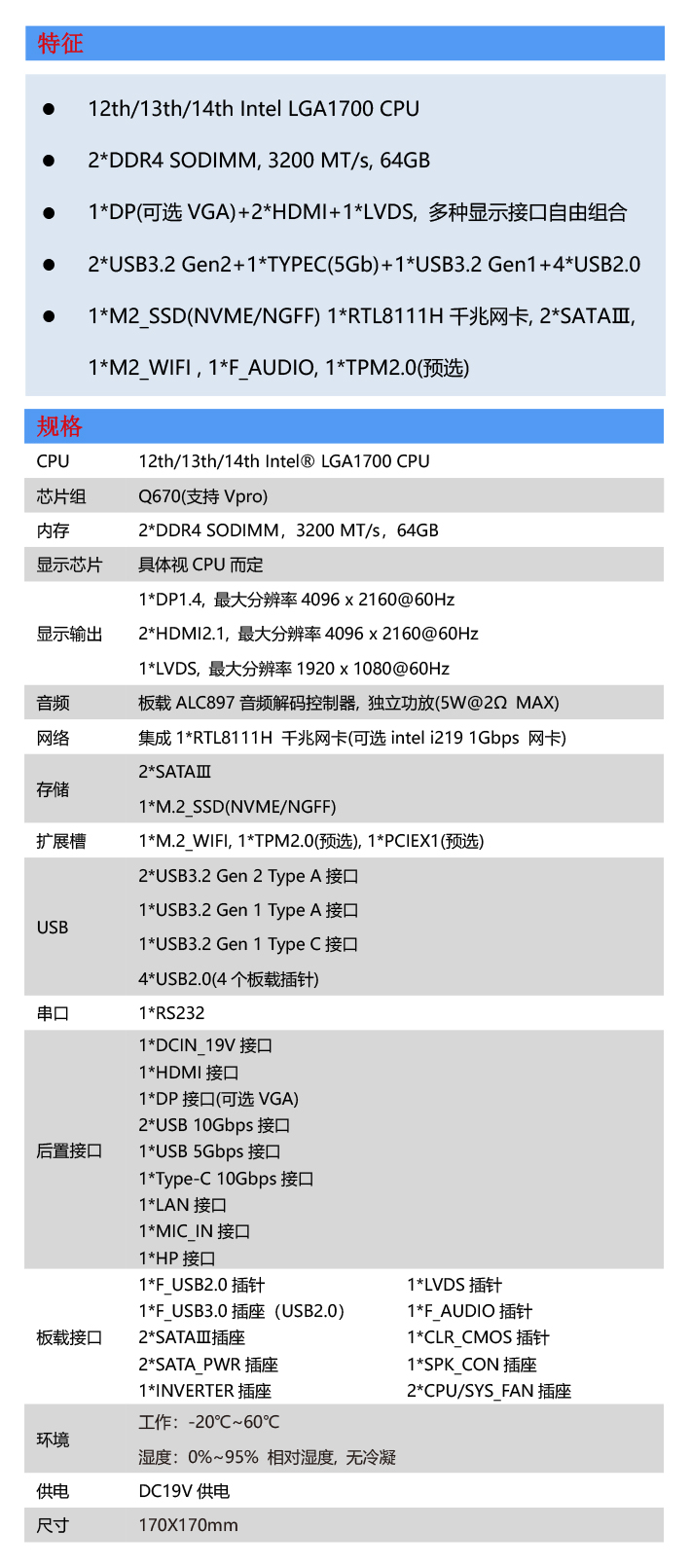

The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1700
South chip intel Q670
specification
Memory type DDR4 SODIMM
RAM 2*DDR4 SODIMM
Storage SATA,M.2_SSD NVME/NGFF
Storage Detail 1*M.2_SSD
USB 3*USB3.2 Gen2,4*USB2.0,1*Type-C/USB3.2 Gen1
Expandable Slot 1*M.2 WIFI
Main board structure ITX 170*170mm
Power supply mode DC 19V
Number of usb 7
SATA Number 2
TPM Optional-Connect us
VPRO YES
The graphics sound network
graphics output 1*DP,1*LVDS,2*HDMI
Network chip Intel i219

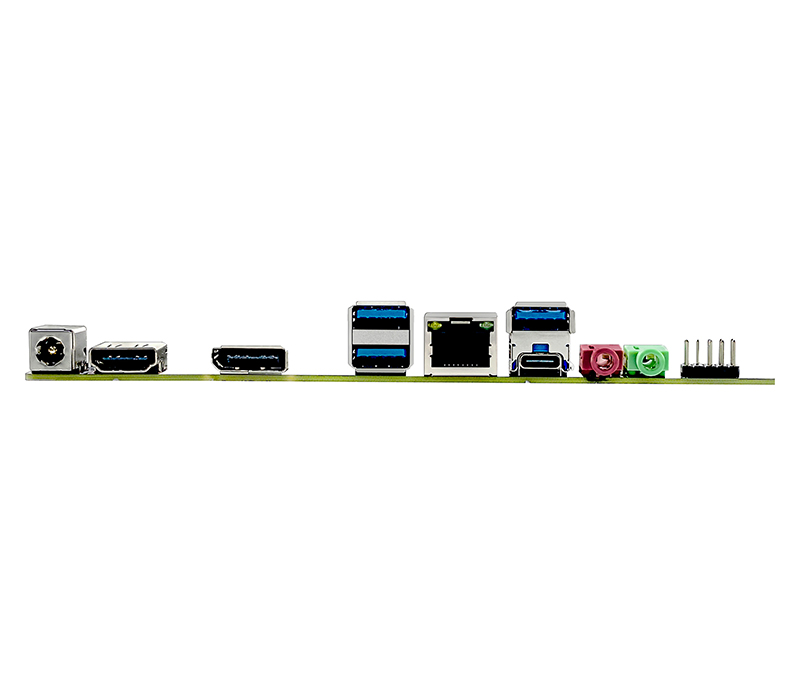

The rear interface
PW_SW 1
