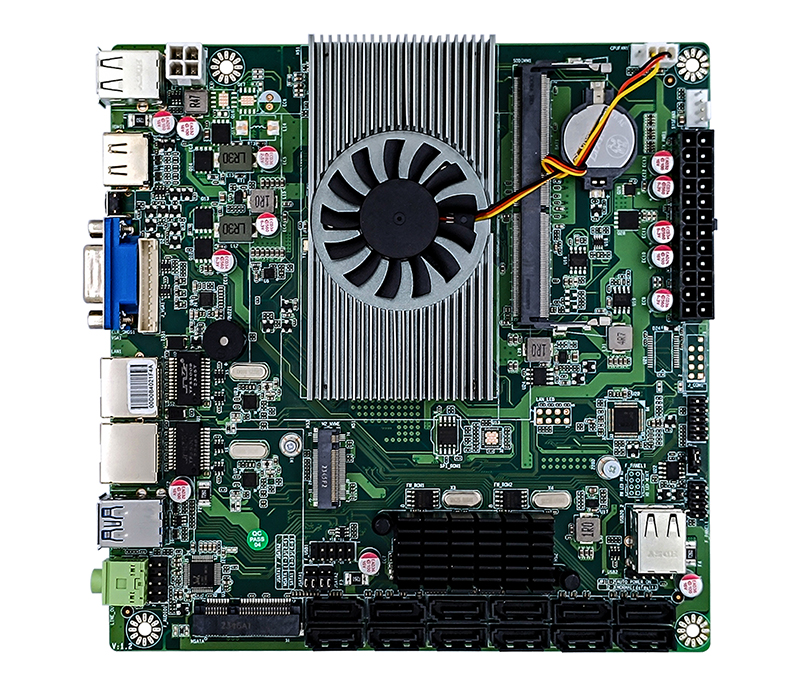

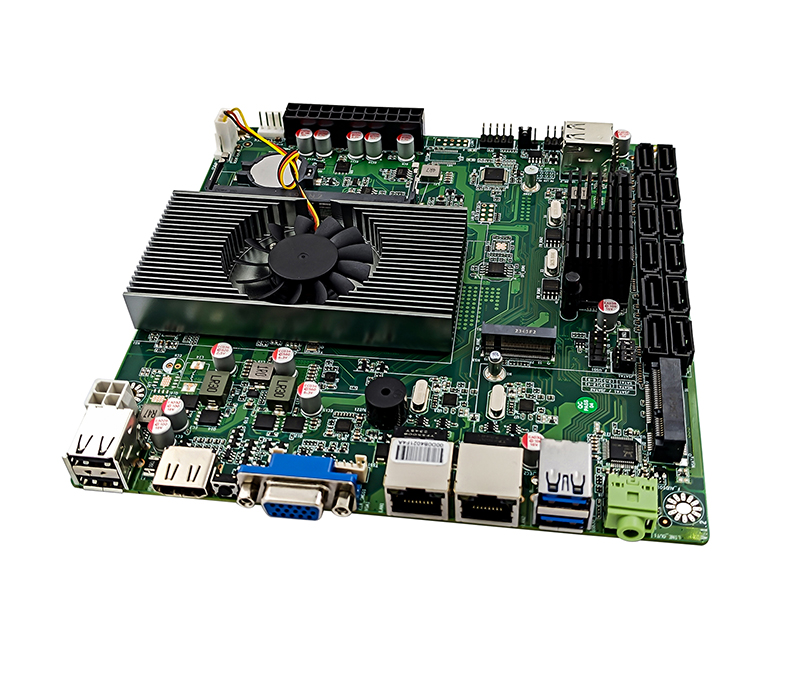

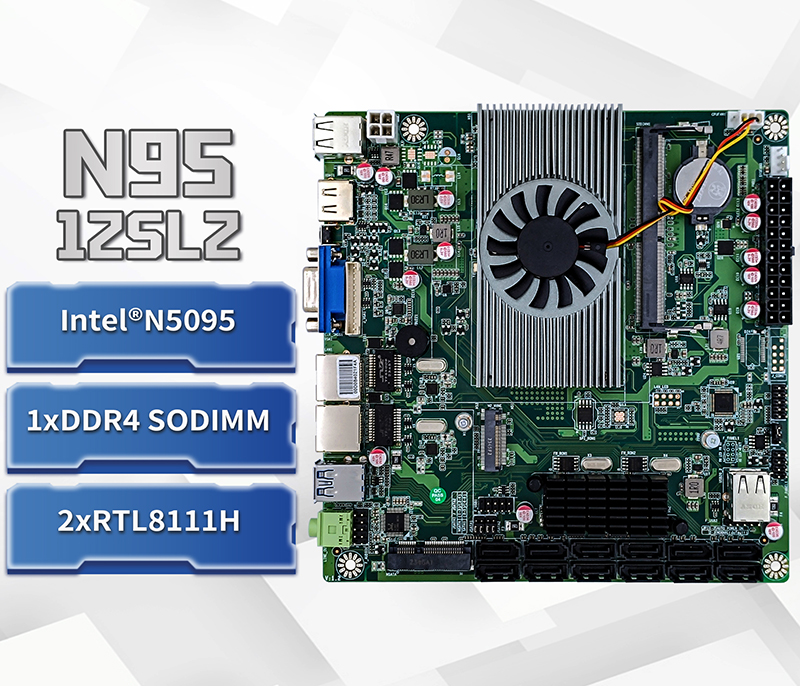

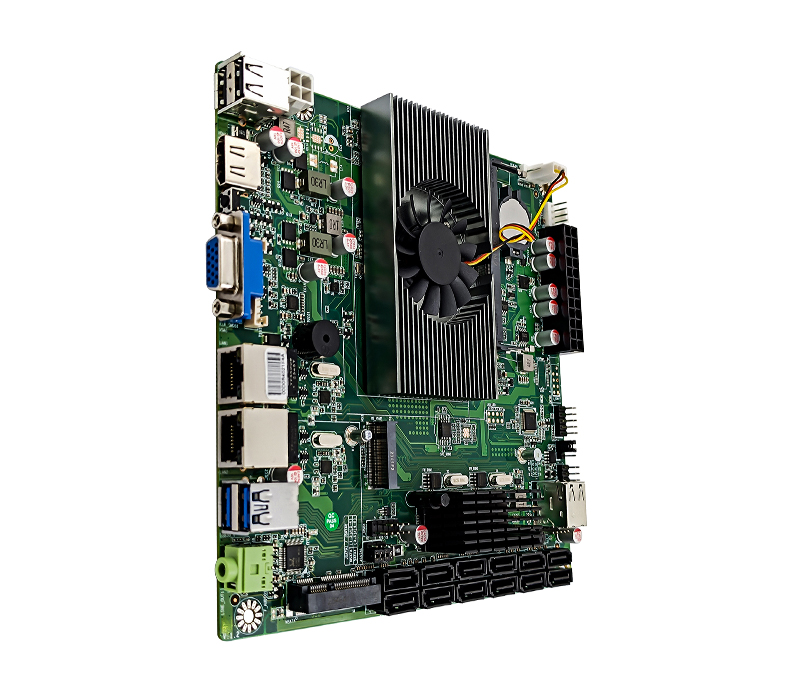

W-N95-12SL2 V1.2

Price:¥面议

Intel Celeron N5095 Supports 16GB DDR4 and dual gigabit network cards 12 * SATA III+M.2/msata, NAS storage preferred

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU intel N5095
CPU chip position Front
The cooling mode Have a fan
CPU slot On-board CPU
South chip intel N5095
specification
Memory type DDR4 SODIMM
RAM 1*DDR4 SODIMM
Storage M.2_SSD NVME/NGFF,MSATA,SATA
Storage Detail 1*SATA,1*M.2_NVME
USB 6*USB2.0,2*USB 3.2 Gen1
Main board structure ITX 170*170mm
Power supply mode ATX 24+4 PIN
Number of usb 8
SATA Number 12
TPM Optional-Connect us
The graphics sound network
graphics output 1*HDMI,1*VGA
Network chip RTL8111
Net amount 2

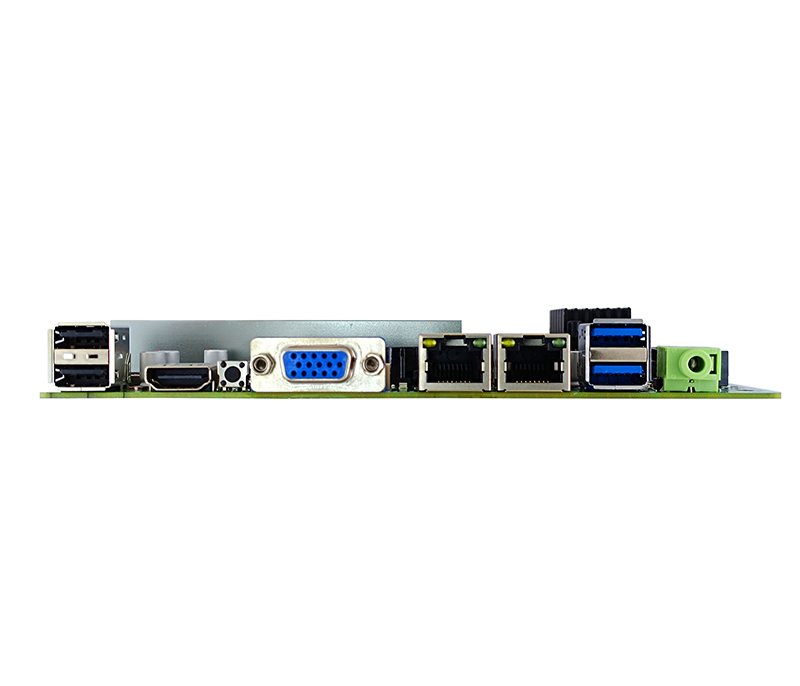

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

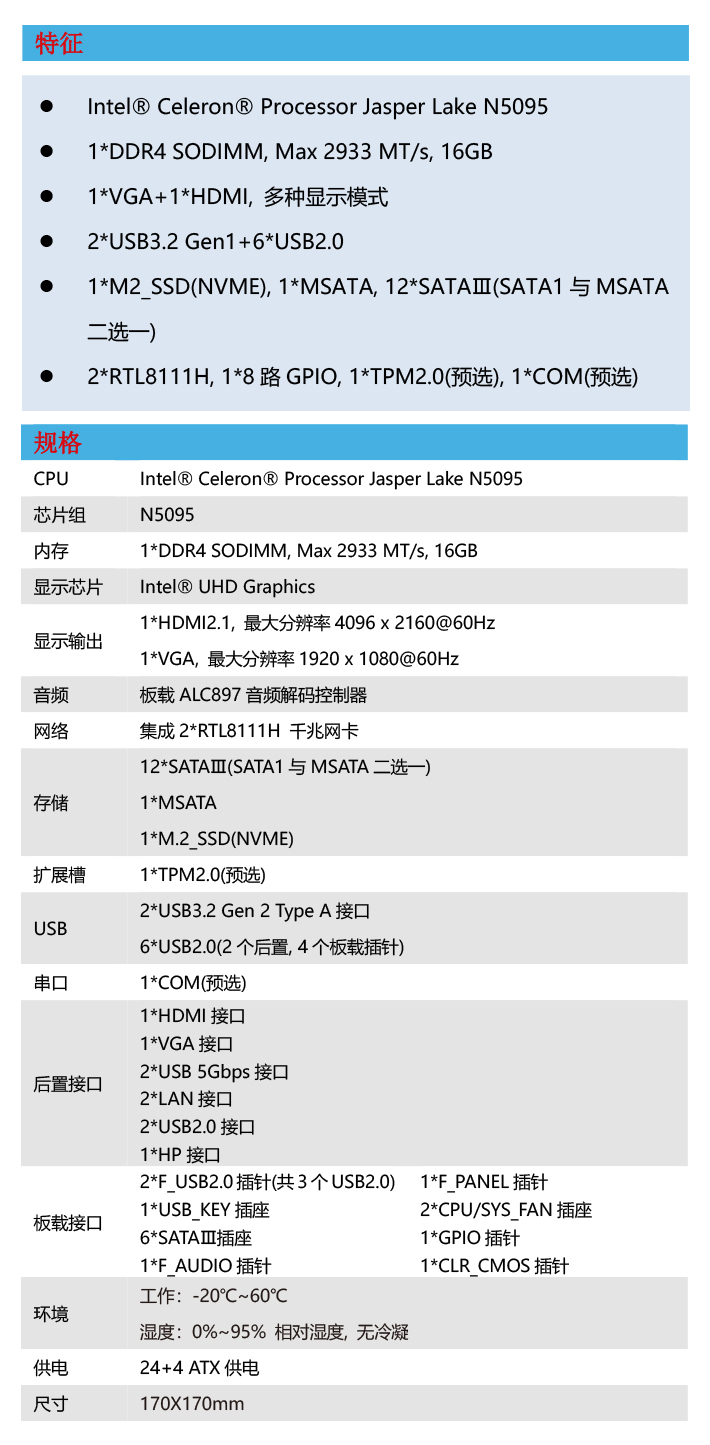

  • Intel ®  Celeron ®  Processor Jasper Lake N5095
  • 1*DDR4 SODIMM, Max 2933 MT/s, 16GB
  • 1*VGA+1*HDMI, Multiple display modes
  • 2*USB3.2 Gen1+6*USB2.0
  • 1 * M2_SSD (NVME), 1 * MSATA, 12 * SATA III (SATA1 and MSATA)
  • Choose between two options
  • 2*RTL8111H, 1 * 8 GPIO, 1 * TPM 2.0 (pre selected), 1 * COM (pre selected)
