W-B250-24S V1.0

Price:¥面议

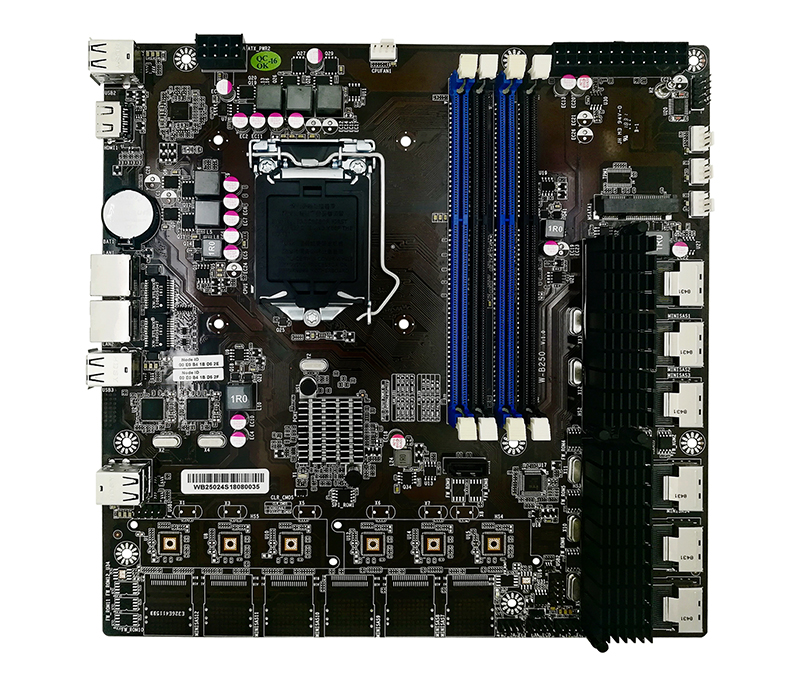

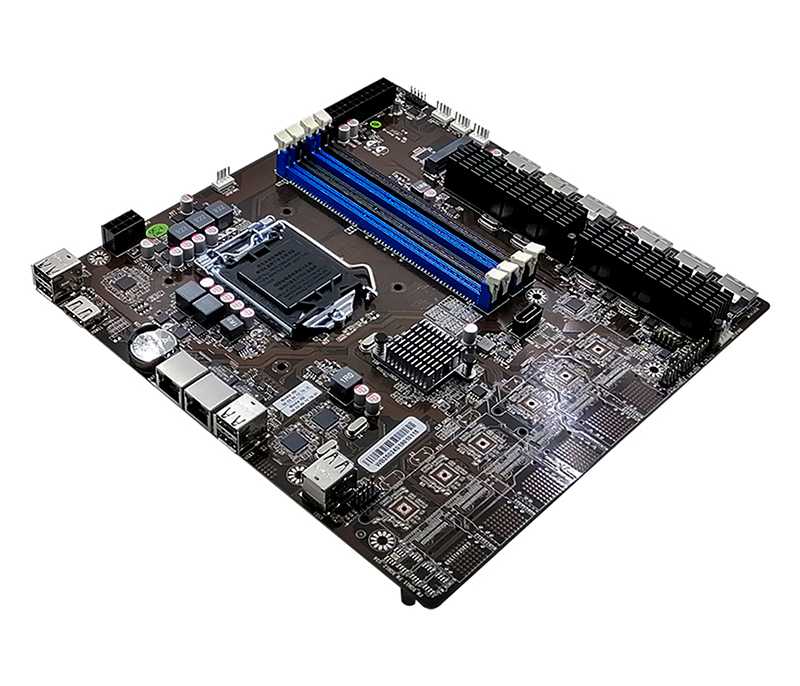

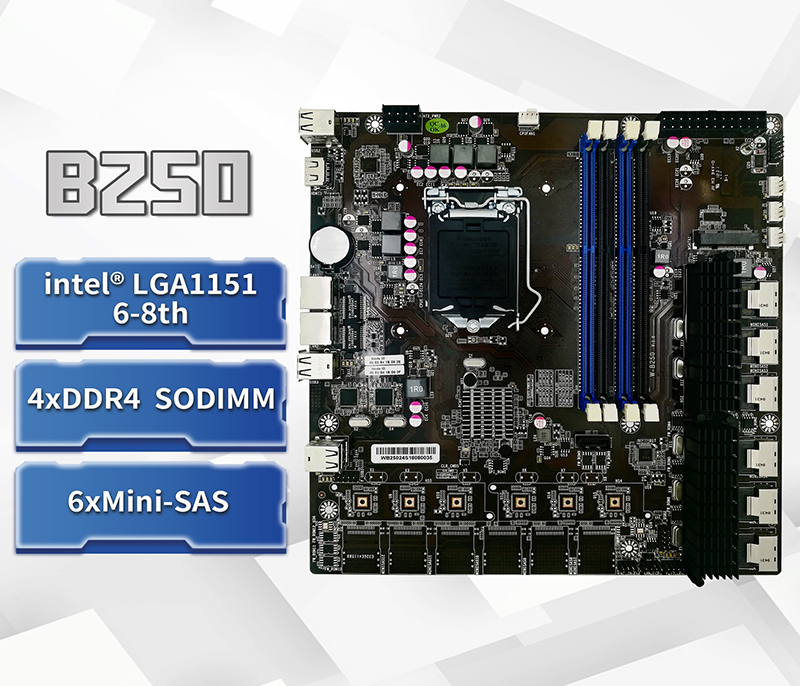

Supports 6/7/8 generation Core processors, 12 Mini SAS to 48 SATA conversion Intel B250 chip, compatible with multiple generations of CPUs

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

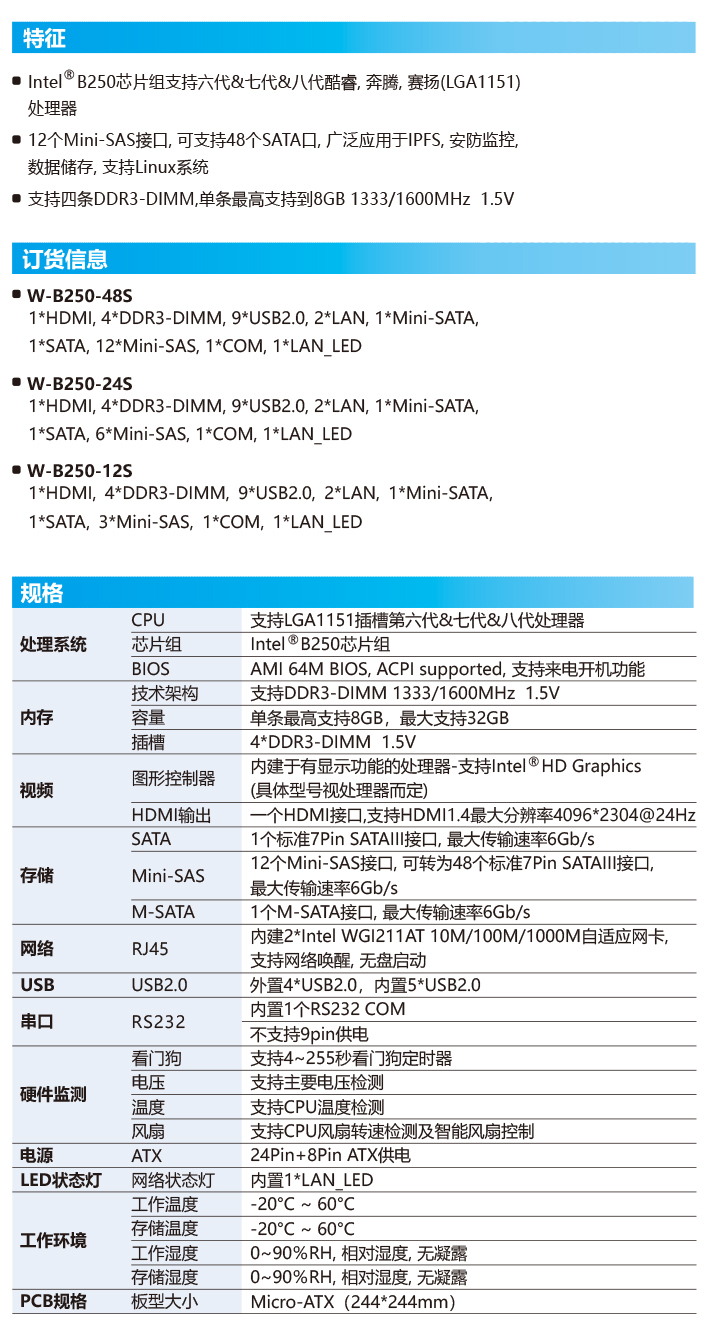

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1151
South chip intel B250
specification
Memory type DDR3 UDIMM
RAM 4*DDR3 UDIMM
Storage SATA,MSATA
Storage Detail 1*SATA,6*SATA
USB 9*USB2.0
Main board structure MATX 244*244mm
Power supply mode ATX 24+8 PIN
Number of com 1
Number of usb 9
The graphics sound network
graphics output 1*HDMI
Network chip intel i211AT
Net amount 2

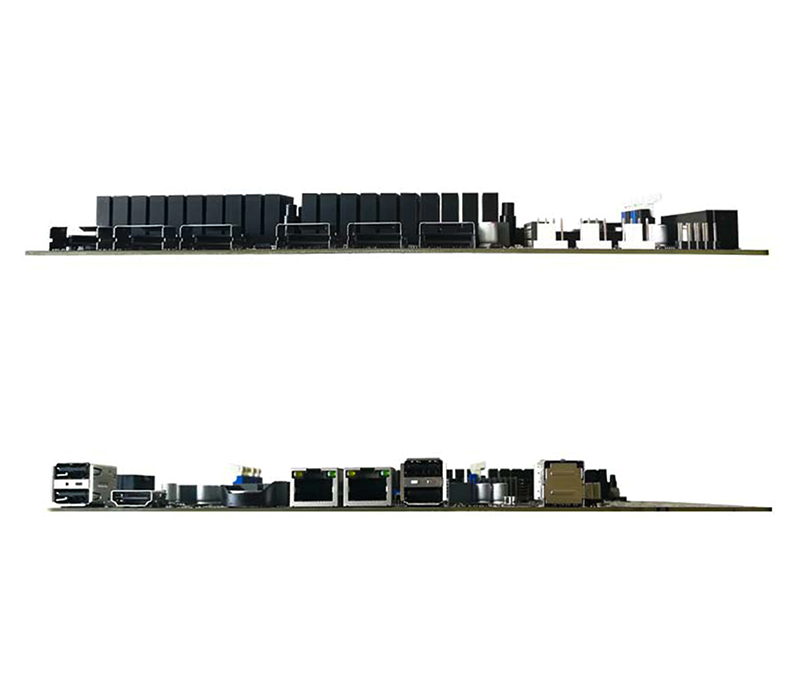

The rear interface
PW_SW 1
