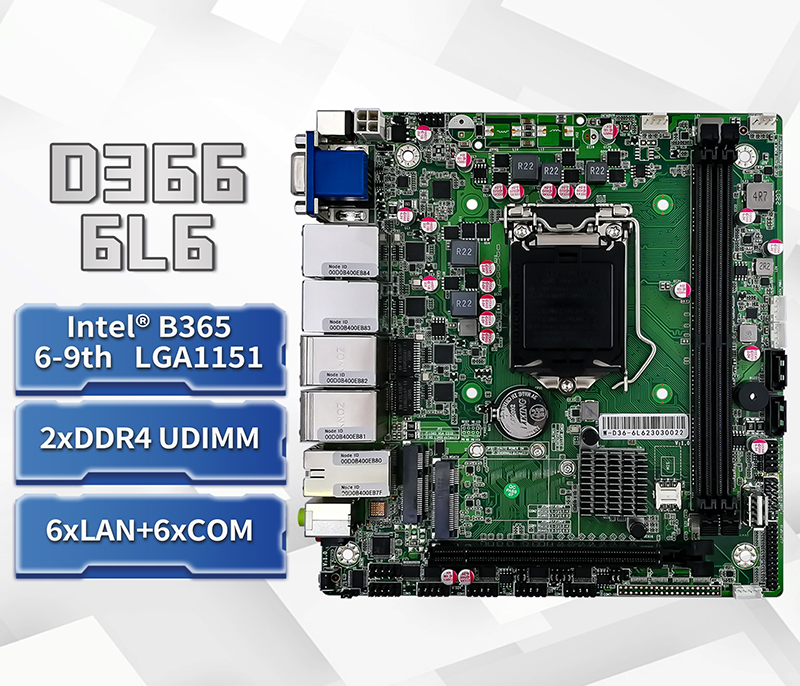

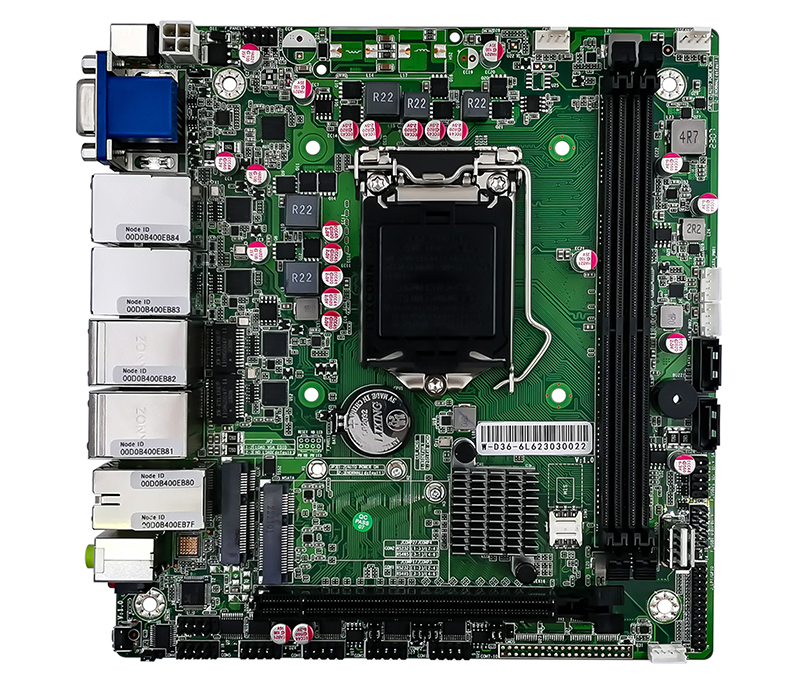

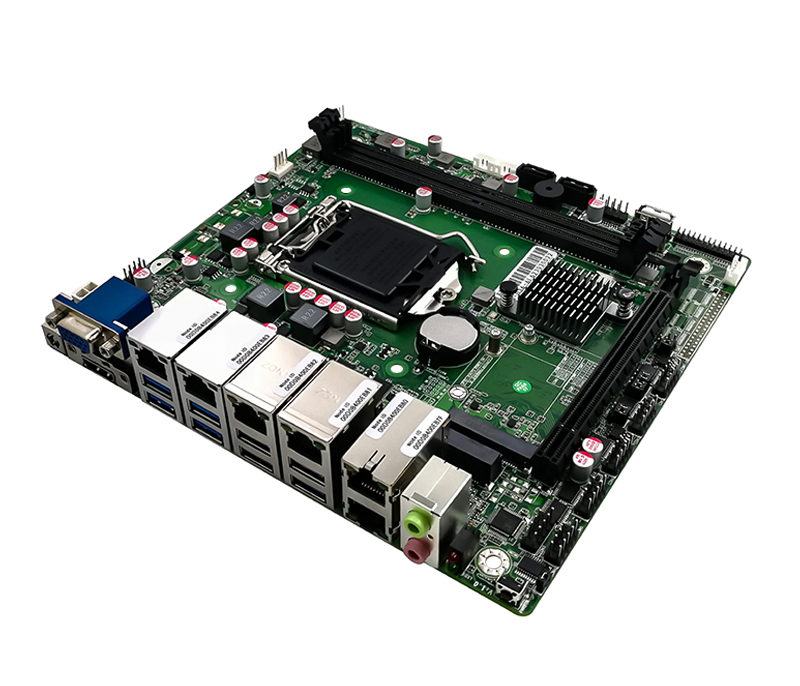

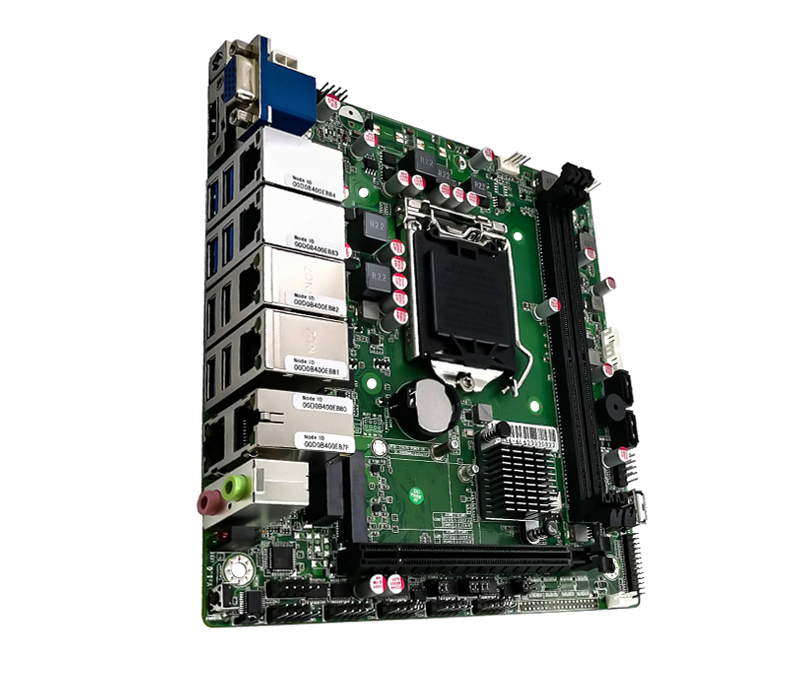

W-D366-6L6 V1.0

Price:¥面议

Compatible with Intel 6-9th generation LGA1151 CPU DDR4 2666MHz memory 6COM (optional 10COM), supports RS485, industrial control adaptation

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

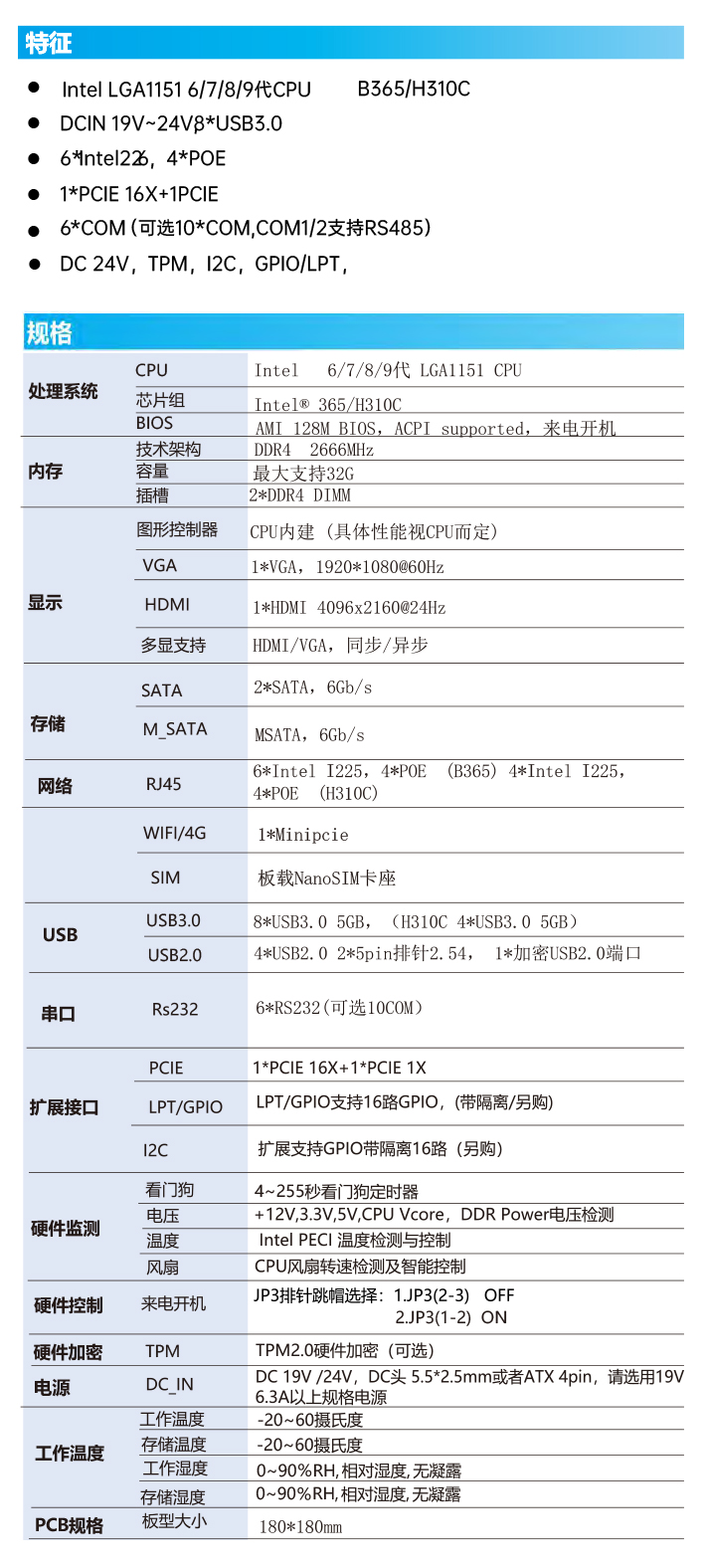

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU chip position Front
The cooling mode Have a fan
CPU slot LGA 1151
South chip intel B365
specification
Memory type DDR4 UDIMM
RAM 2*DDR4 UDIMM
Storage MSATA,SATA
Storage Detail 2*SATA,1*MSATA
USB 5*USB2.0,8*USB 3.2 Gen1
Expandable Slot 1*SIM,1*PCIE 16X,1*MPE
Main board structure MINI-ITX 180*180mm
Power supply mode DC 24/19V
Number of com 6
Number of usb 13
SATA Number 2
TPM Optional-Connect us
The graphics sound network
graphics output 1*HDMI,1*VGA
Network chip intel i226
Net amount 6

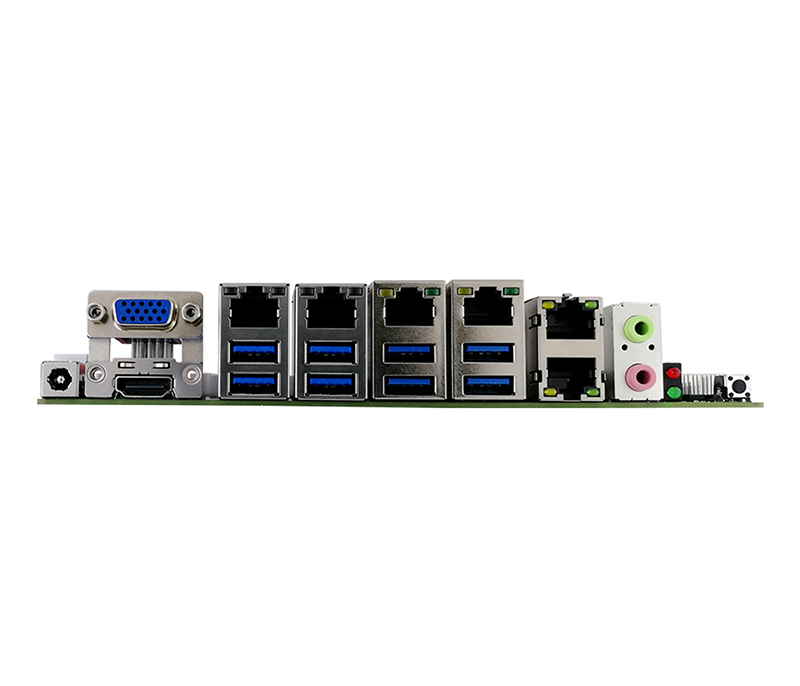

The rear interface
PW_SW 1
