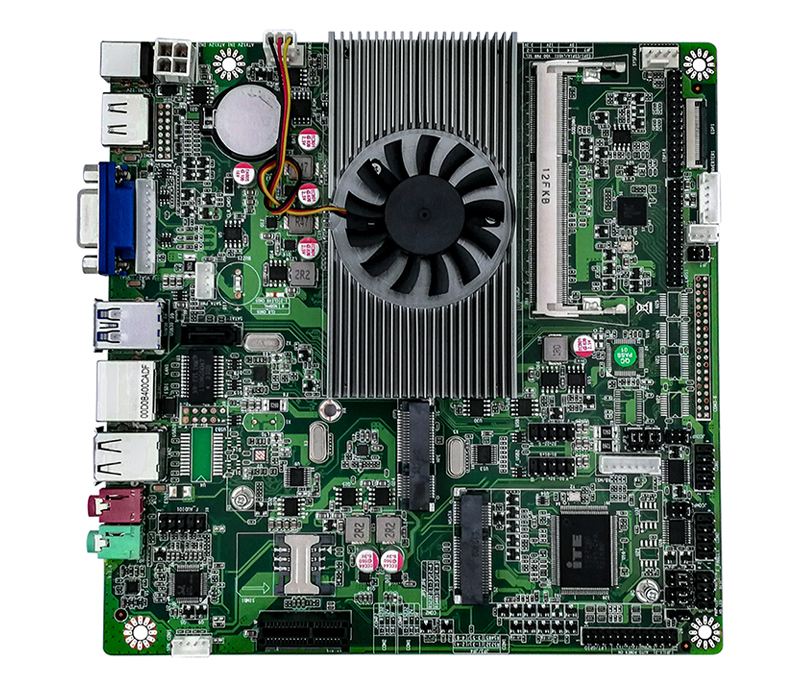

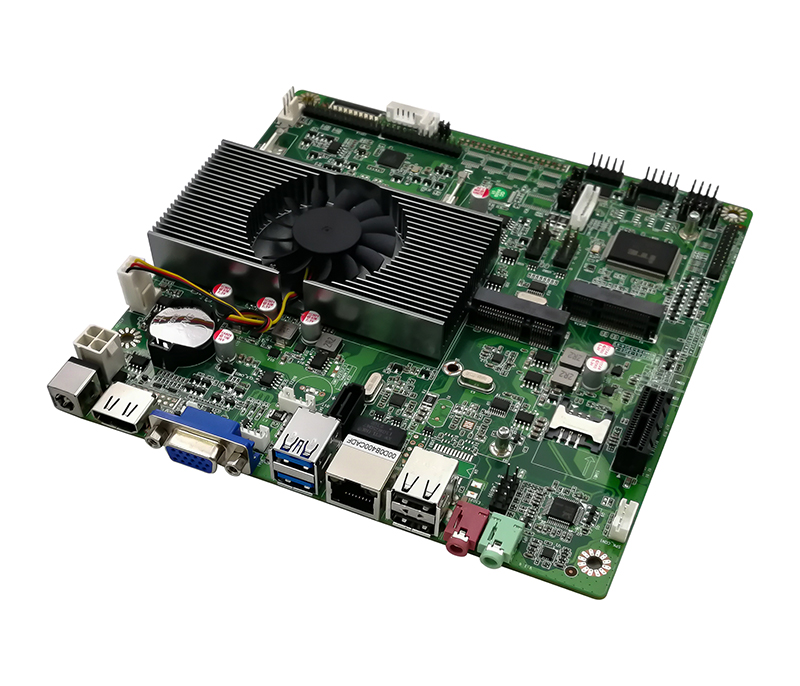

W-M192 V1.6

Price:¥面议

J1900 processor+Mini ITX compact model Single pass DDR3L TPM encryption, industrial control/integrated airport scene adaptation

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service

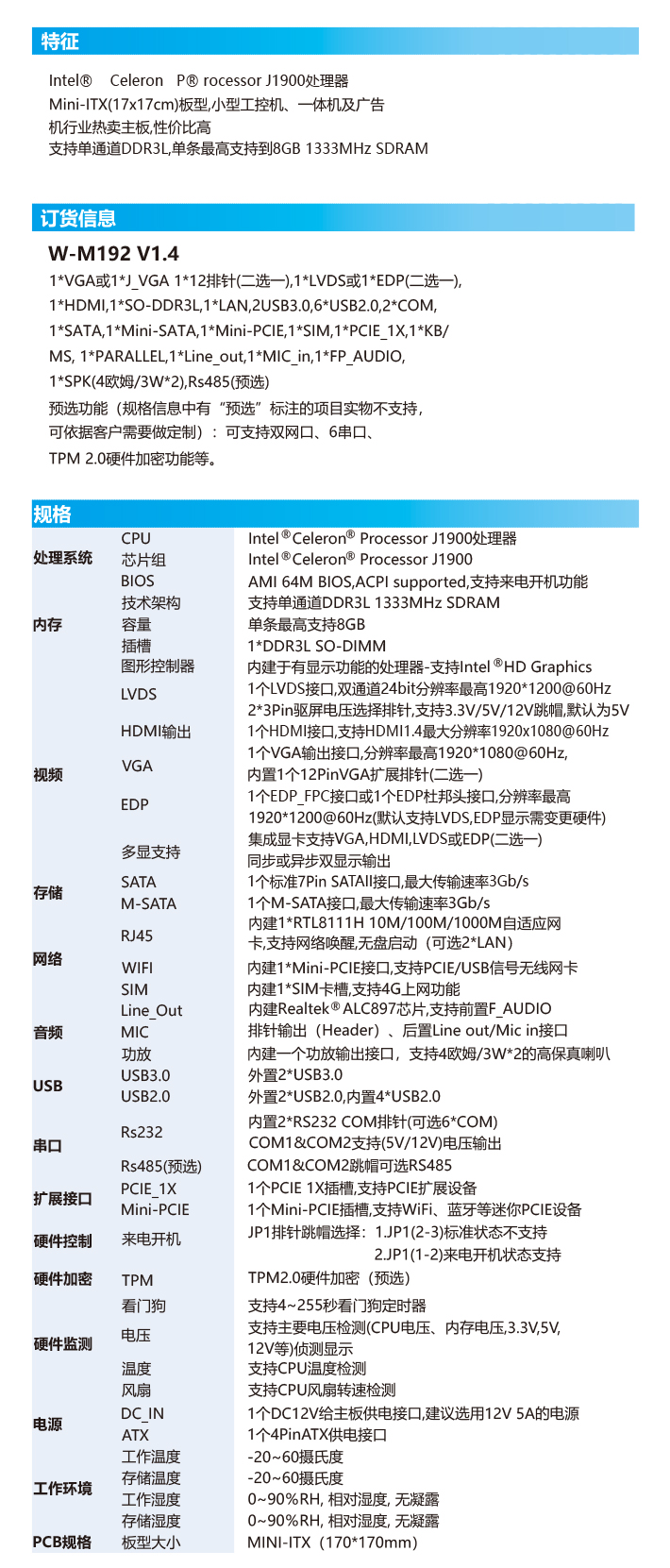

The main chip
Chip manufacturer Intel
On-board CPU intel J1900
South chip J1900
specification
Memory type DDR3 UDIMM
RAM 1*DDR3 SODIMM
Storage SATA,MSATA
Storage Detail 1*SATA,1*MSATA
USB 7*USB2.0,1*USB 3.2 Gen1
Expandable Slot 1*SIM,1*PCIE 1X,1*MPE
Main board structure ITX 170*170mm
Power supply mode DC 12V
Number of com 2
Number of usb 8
SATA Number 1
The graphics sound network
graphics output 1*LVDS,1*HDMI,1*VGA
Network chip RTL8111
Net amount 1

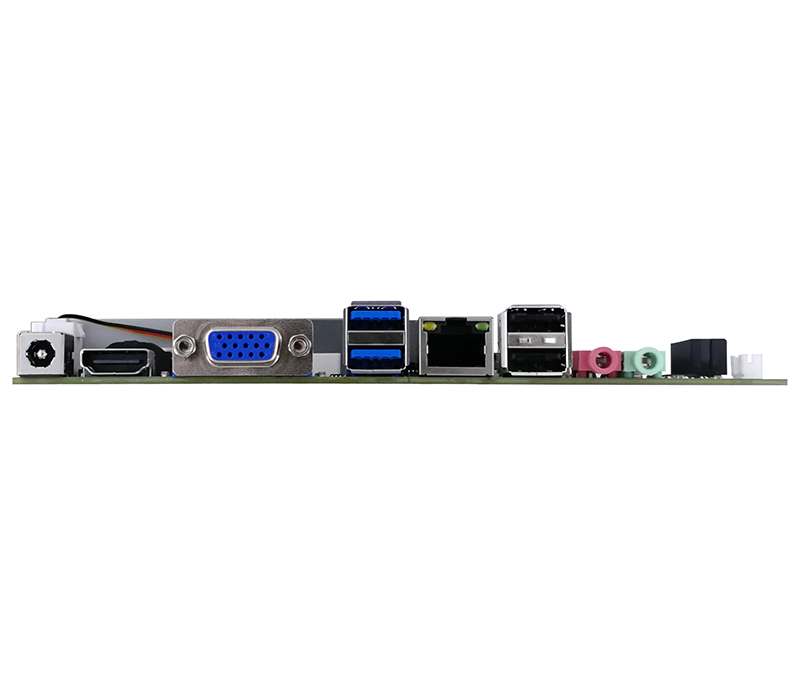

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • Intel ®     Celeron   P ®  Processor J1900 processor
  • Mini ITX (17x17cm) board type, small industrial control computer, all-in-one machine and advertising
  • Hot selling motherboards in the computer industry with high cost-effectiveness
  • Supports single channel DDR3L, with a maximum support of 8GB and 1333MHz SDRAM per channel
