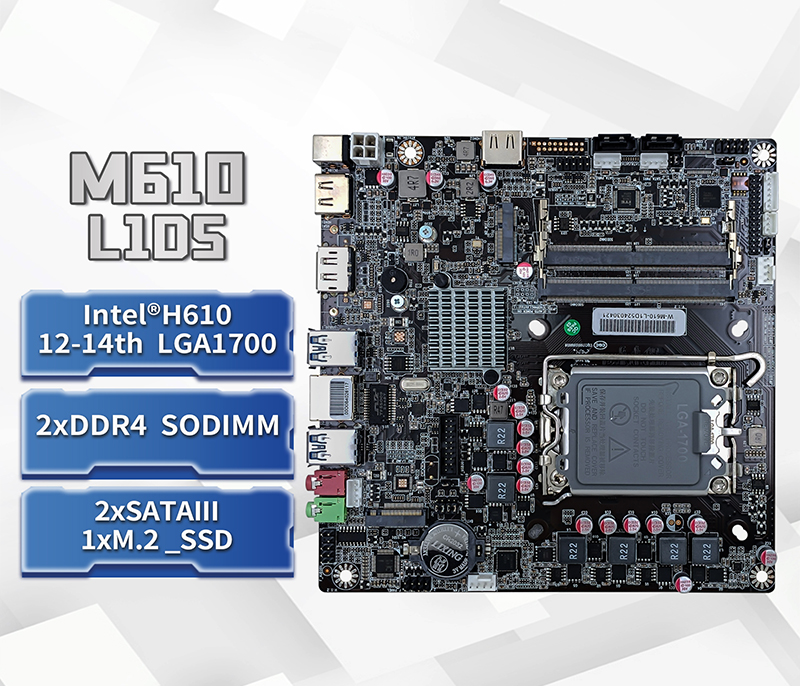

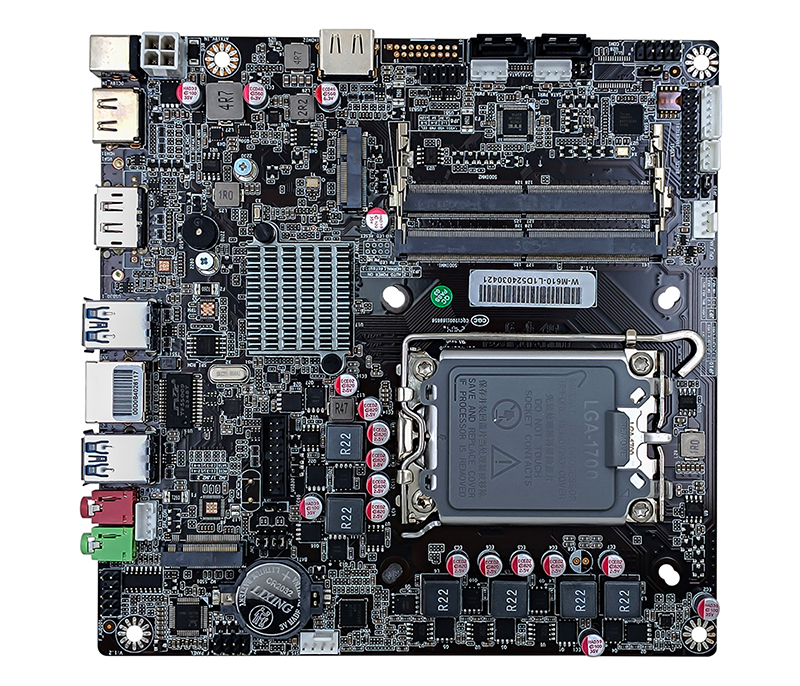

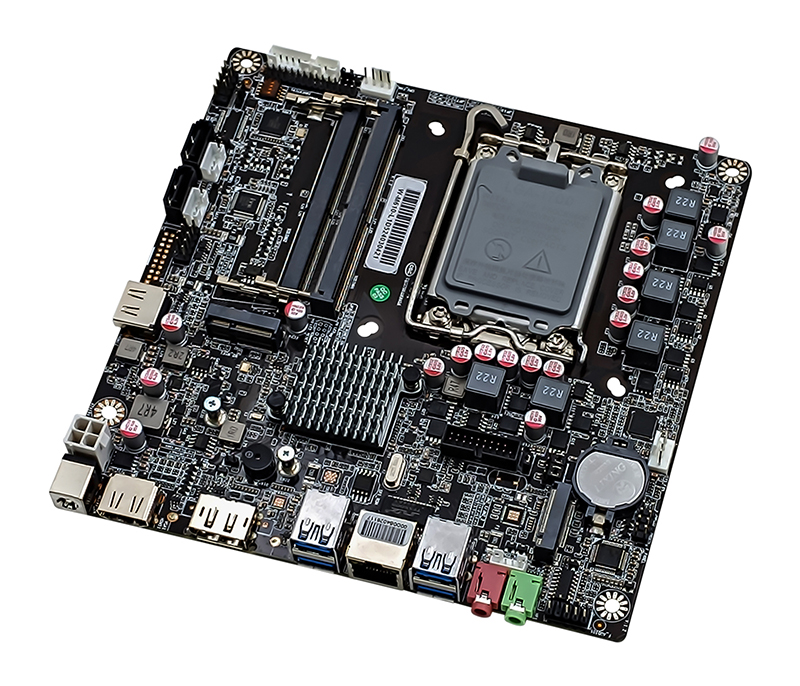

W-M610-L1D5 V1.2

Price:¥面议

Equipped with 12/13/14 generation Intel LGA1700 CPU and DDR5 memory H610 chipset, with rich interfaces (DP/HDMI/LVDS+multiple USB), H610 chipset

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

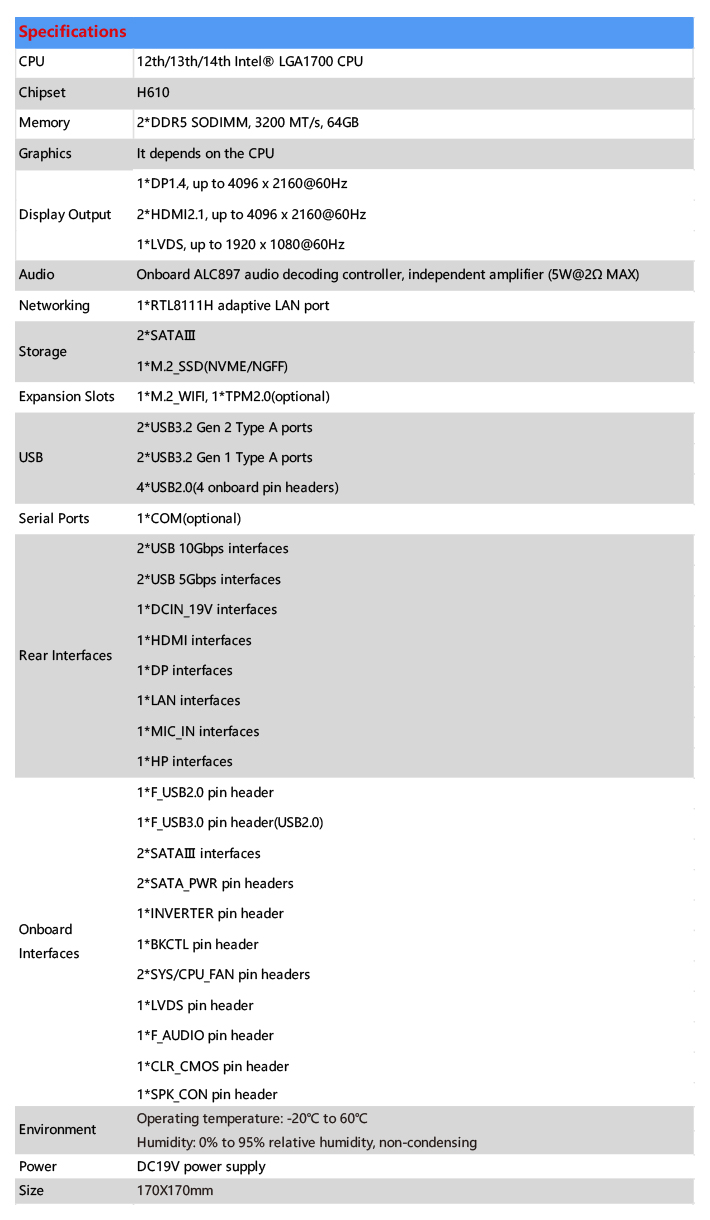

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU slot LGA 1700
South chip intel H610
specification
Memory type DDR5 SODIMM
RAM 2*DDR5 SODIMM
Storage SATA,M.2_SSD NVME/NGFF
Storage Detail 1*M.2_SSD,2*SATA
USB 2*USB 3.2 Gen2,4*USB2.0,2*USB 3.2 Gen1
Expandable Slot 1*M.2 WIFI
Main board structure ITX 170*170mm
Power supply mode DC 19V
Number of com 1
Number of usb 8
SATA Number 2
TPM Optional-Connect us
The graphics sound network
graphics output 1*LVDS,1*DP,2*HDMI
Network chip RTL8111
Net amount 1

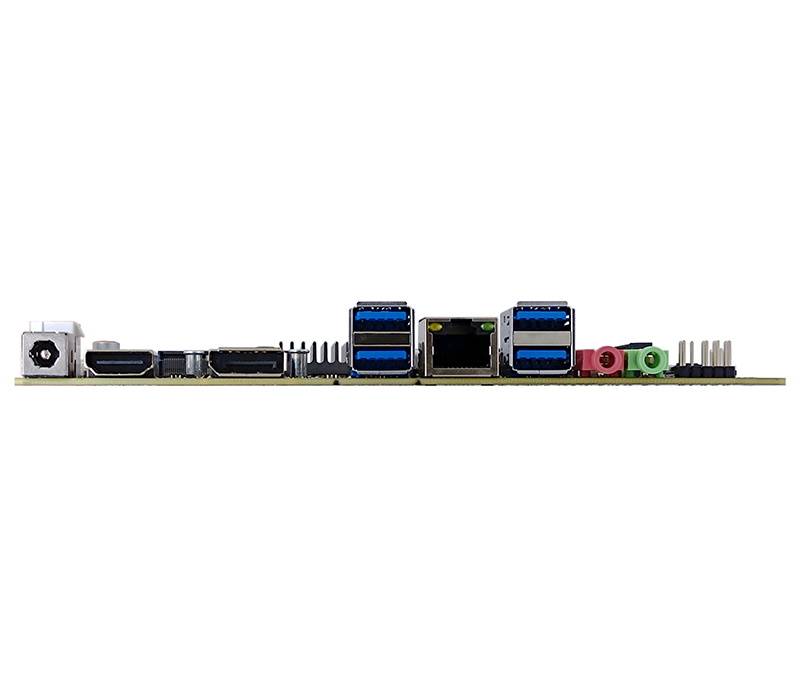

The rear interface
PW_SW 1
