W-P38I3E-2L5 V1.3

Price:¥面议

7th Generation Intel ® Core ™ I3 processors 7020U processor Integrated Intel HD Graphics 610 supports DirectX12, VGA, LVDS EDP

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service

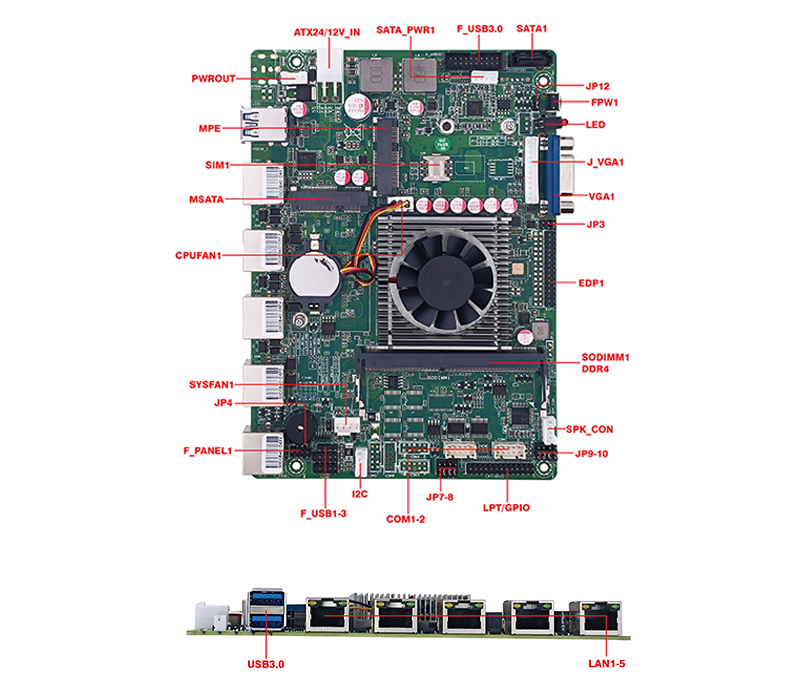

The main chip
Chip manufacturer Intel
On-board CPU intel i3-7020U
CPU chip position Front
The cooling mode Have a fan
specification
Memory type DDR4 SODIMM
RAM 1*DDR4 SODIMM
Storage SATA,MSATA
Storage Detail 1*SATA,1*MSATA
USB 4*USB 3.2 Gen1,5*USB2.0
Expandable Slot 1*MPE,1*SIM
Main board structure 170*120mm
Power supply mode ATX 4 PIN
Number of com 2
Number of usb 9
SATA Number 1
TPM Optional-Connect us
The graphics sound network
graphics output 1*LVDS,1*VGA,EDP
Network chip intl i210
Net amount 5

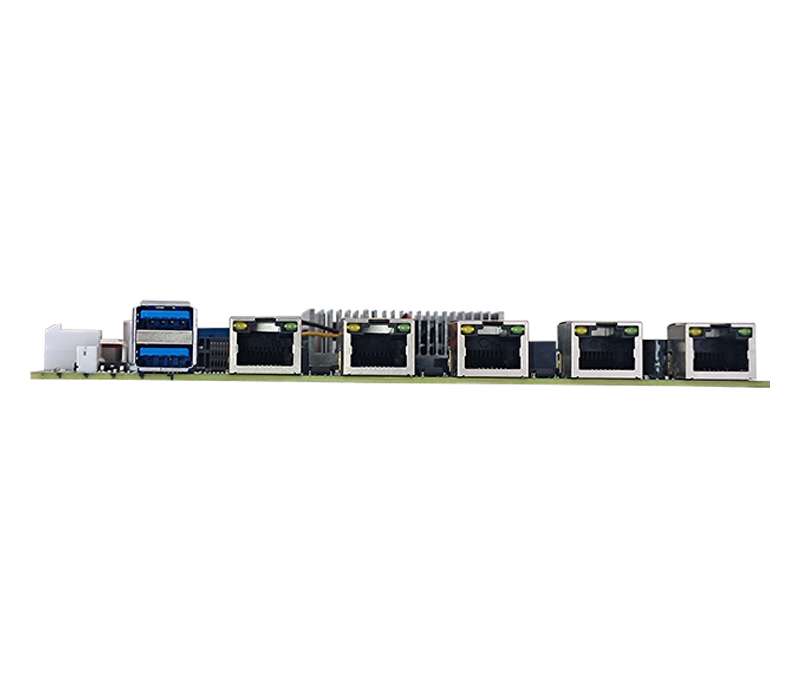

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • 7th Generation Intel ®  Core ™  I3 processors 7020U processor (2 cores,
  • 4 Threads,Base Frequency 2.30 GHz 15W)
  • ®
  • Integrated Intel HD Graphics 610 supports DirectX12, VGA, LVDS
  • EDP has three outputs, which can support synchronous or asynchronous three display outputs
  • Industrial automation, visual inspection, network security industry hot selling motherboards, powerful performance and high cost-effectiveness, can support
  • 5 Gigabit Ethernet ports (including LAN1/LAN2/LAN3/LAN4 supporting POE)
  • SO-DDR4, Supports up to 16GB 2133/2400MHz
