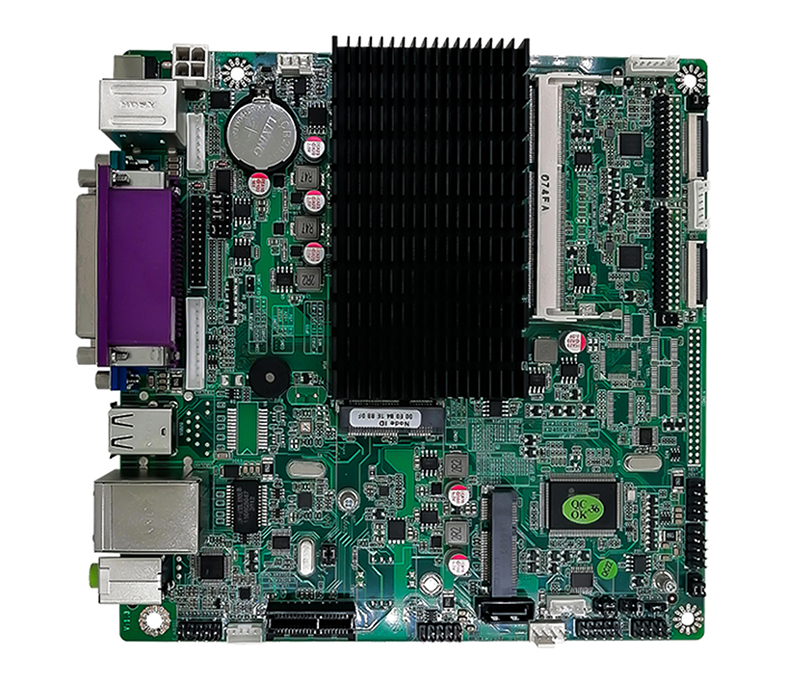

W-PH18L-2

Price:¥面议

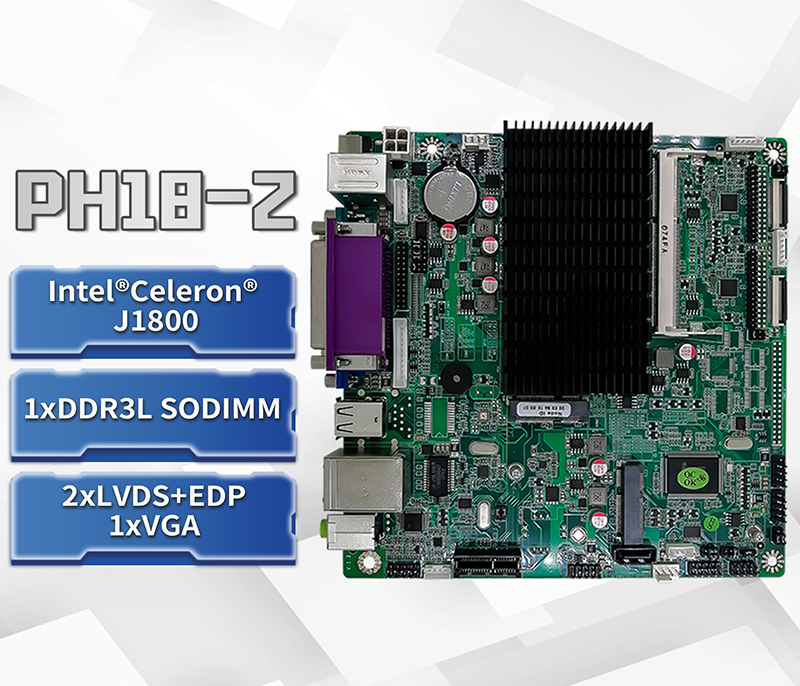

Intel J1800 processor, Mini ITX small-sized industrial control preferred Supports single channel DDR3L Multi display output (VGA/LVDS/EDP)

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

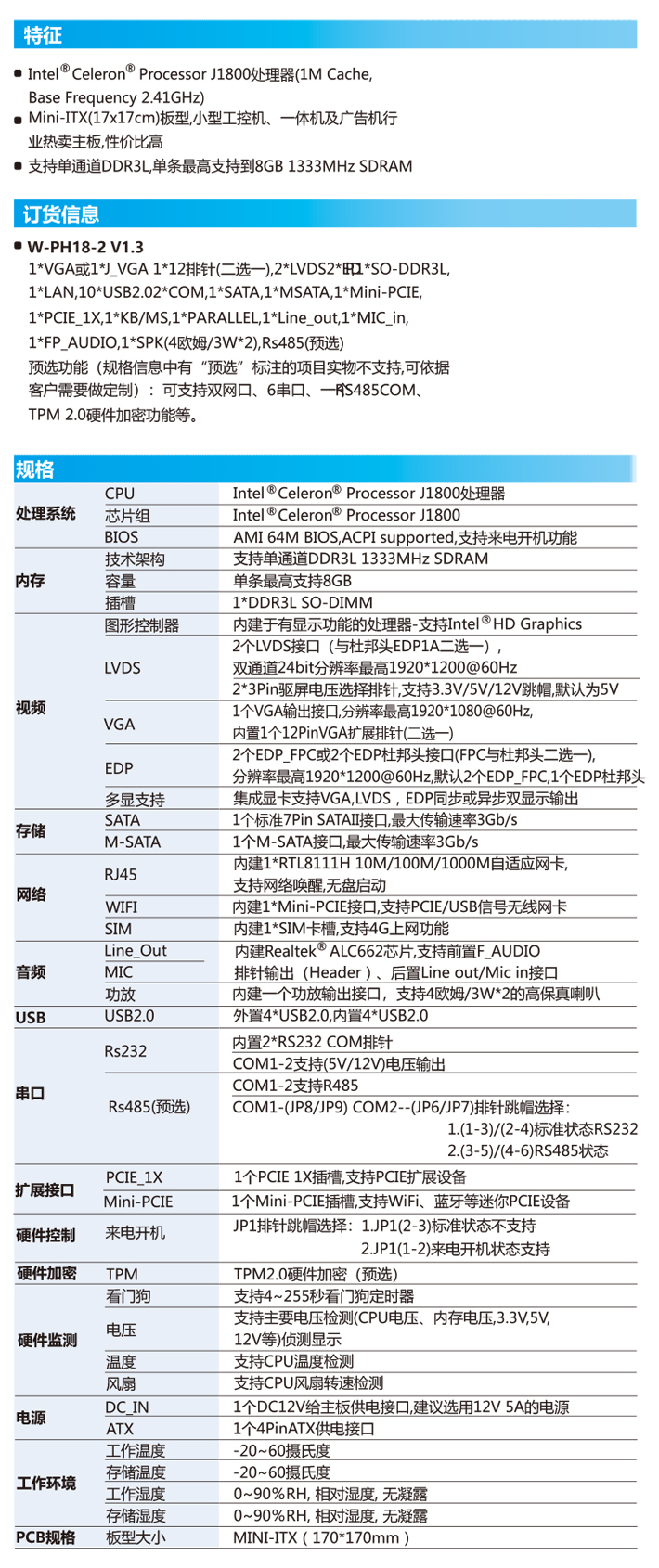

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU intel J1800
specification
RAM 1*DDR3L SODIMM
Storage SATA,MSATA
Storage Detail 1*SATA,1*MSATA
USB 8*USB2.0
Expandable Slot 1*PCIE 1X
Main board structure ITX 170*170mm
Power supply mode DC 12V
Number of com 2
Number of usb 8
SATA Number 1
The graphics sound network
graphics output 2*EDP,1*VGA,2*LVDS
Network chip RTL8111
Net amount 1

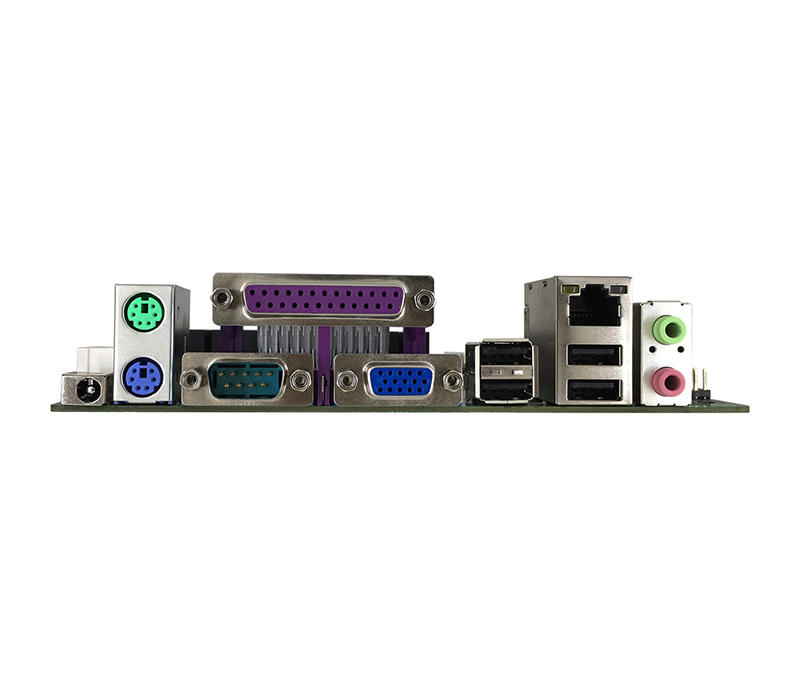

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

  • Intel Celeron Processor J1800 processor (1M Cache, Base Frequency 2.41GHz)
  • Mini ITX (17x17cm) board type, a popular motherboard in the small industrial control computer, all-in-one computer, and advertising machine industries, with high cost-effectiveness
  • Supports single channel DDR3L, with a maximum support of 8GB and 1333MHz SDRAM per channel
