W-N19

Price:¥面议

Intel ® Celeron ® Processor J1900 processor Mini ITX board type (12x12cm) 1VGA+HDMI dual video output Support customization

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU intel J1900
CPU slot On-board CPU
specification
RAM 1*DDR3L SODIMM
Storage MSATA,SATA
Storage Detail 1*MSATA,1*SATA
USB 1*USB 3.2 Gen1,5*USB2.0

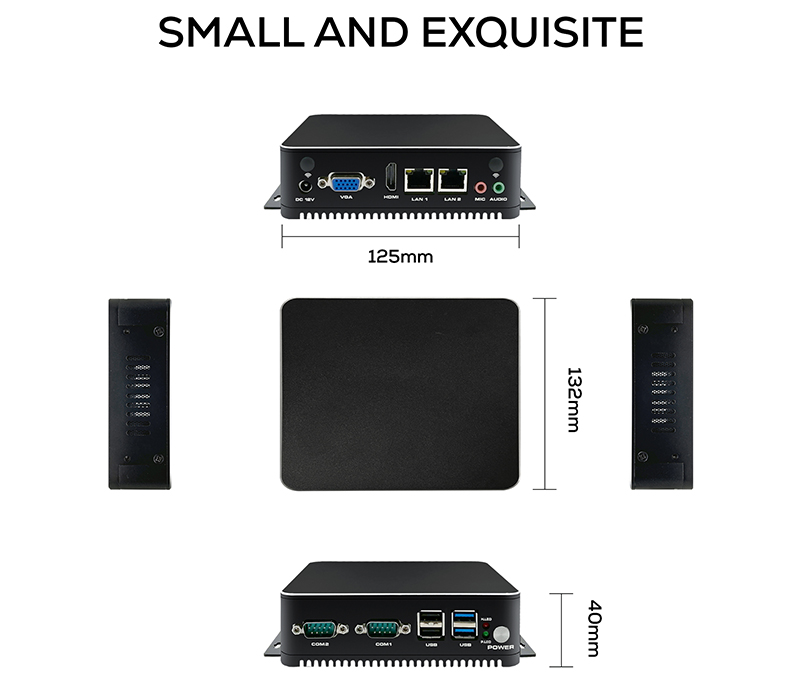

Main board structure Nano 120*120mm
Power supply mode DC 12V
Number of com 2
Number of usb 6
SATA Number 1
TPM Optional-Connect us
The graphics sound network
graphics output 1*VGA,1*HDMI
Network chip RTL8111
Net amount 2

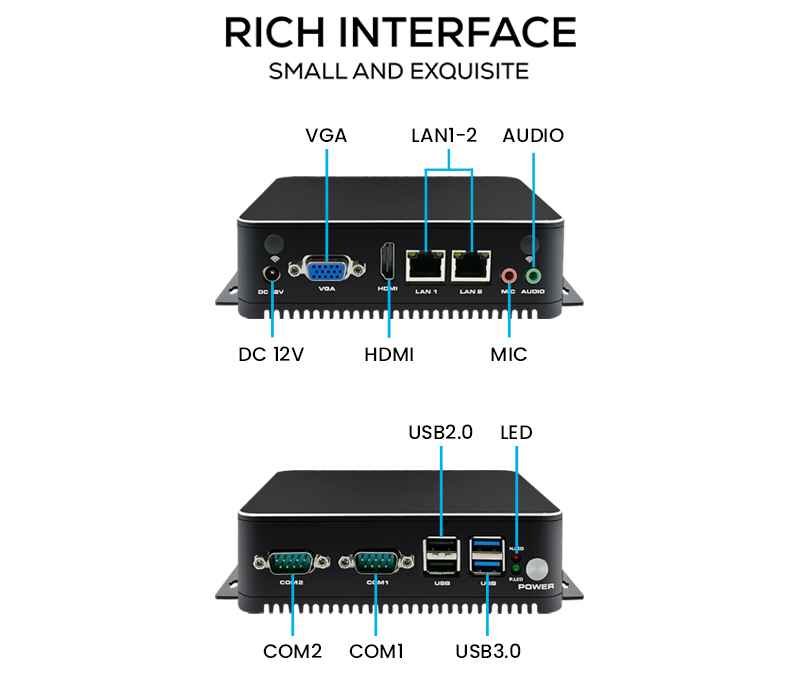

The rear interface
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

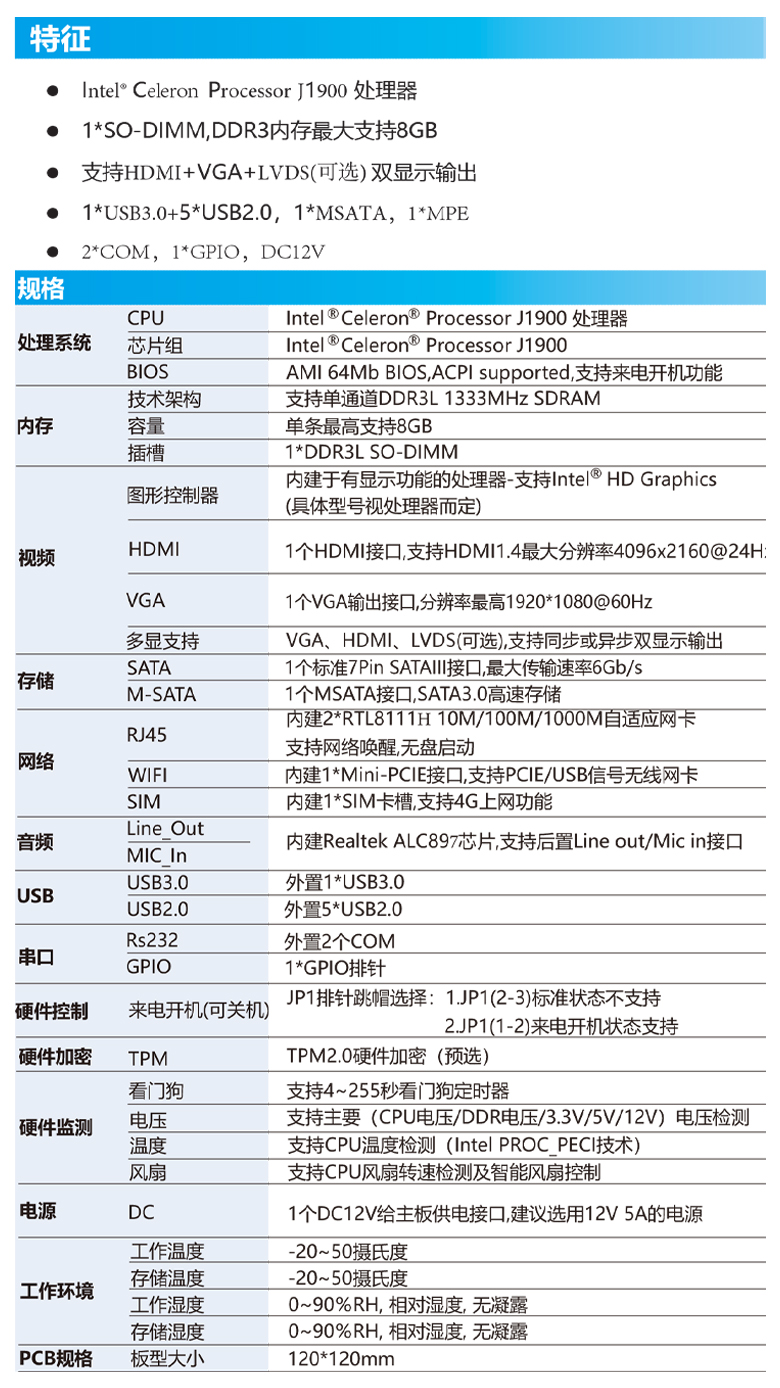

  • Intel® Celeron Processor J1900 处理器
  • 1*SO-DIMM,DDR3内存最大支持8GB
  • 支持HDMI+VGA+LVDS(可选) 双显示输出
  • 1*USB3.0+5*USB2.0,1*MSATA,1*MPE
  • 2*COM,1*GPIO,DC12V
