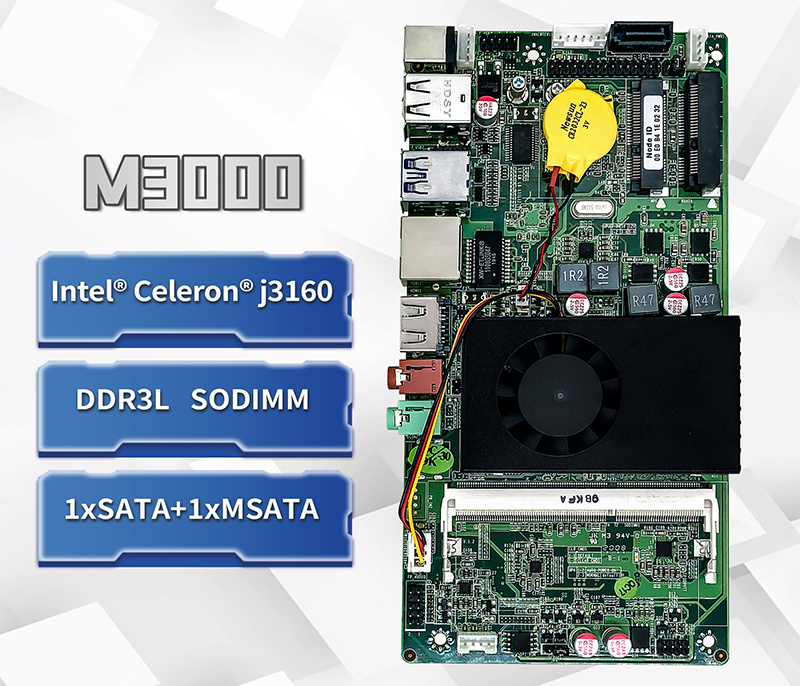

W-M3000

Price:¥面议

170mm*85mm /1*RTL8111 LAN/1*DDR3LSODIMM/1*MINI-PCIE/1*MINI-SATA /1*SATA/1*HDMI /1*LVDS /2*USB3.0/5*USB2.0

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU intel J3160
specification
Main board structure Nano 120*120mm
Power supply mode DC 12V
Number of usb 6
SATA Number 2
The graphics sound network
graphics output 1*HDMI,1*LVDS
Net amount 1
Sound card type ALC 662
The onboard interface
The PCI slot NO
PCI-E 16X slot NO
MSATA 1
Mini-PCIE 1
front audio port 2*5 2.0mm N8 port
Audio amplification 1*4 2.0mm 2*3W port
USB2.0 Number 5
USB3.0 Number 2
SATA Number 2
DC IN port 1*4 2.54mm

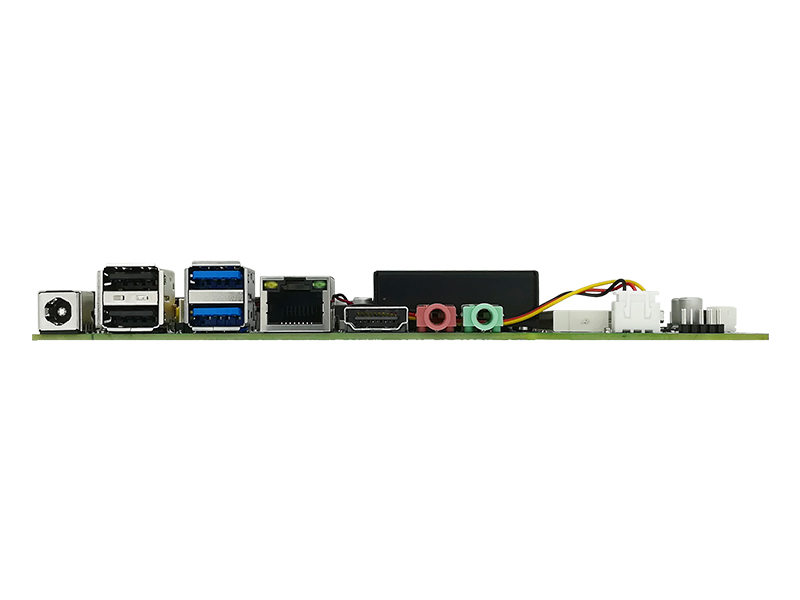

The rear interface
DC DC 12V
HDMI 1*HDMI
LAN 1*LAN
USB2.0 5
USB3.0 2
Audio 1
Mic 1
Line-in 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

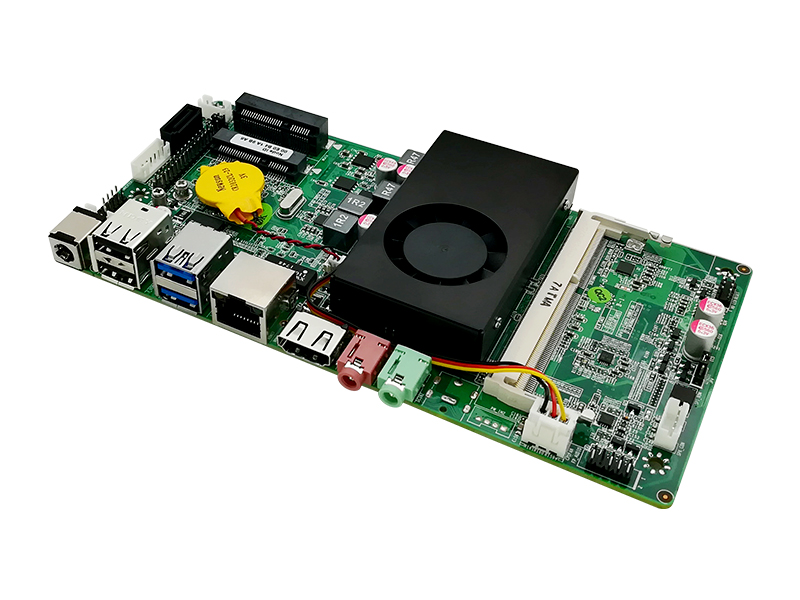

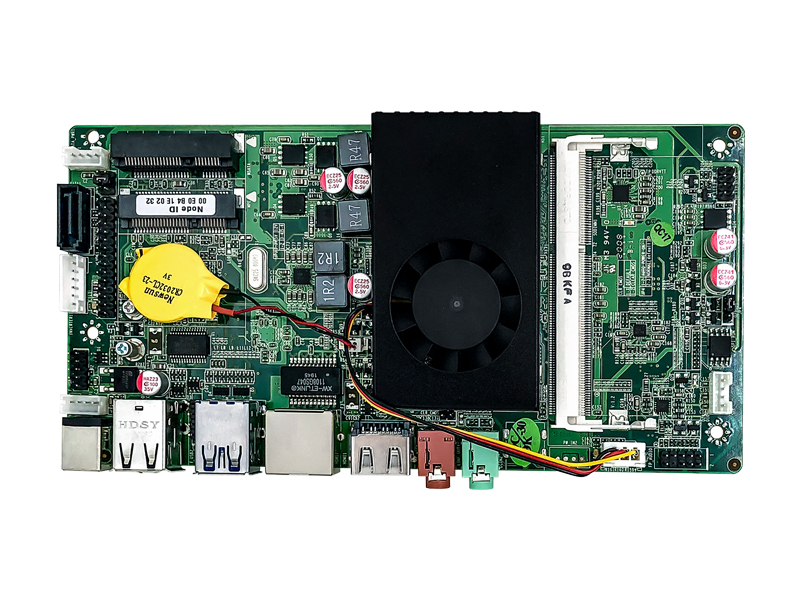

Motherboard adopts Braswell platform of Intel ® Celeron ® Processor J3160 (2 m Cache, up to 2.24 GHz) CPU (customers also can be customized with the platform N3160, N3150, J3710 CPU motherboard), Braswell is based on Intel's new micro architecture and 14 nm manufacturing process technology of the next generation of multi-core on a chip (SoC) system. It is for low power entry level 2 in 1 equipment, laptops, desktops, and all-in-one design of customized, it will replace the existing 22 nm Bay Trail series products.

Ferrite solid-state capacitors, aluminum alloy radiator

High quality thermal conductivity detector, appeared everywhere precise exquisite design, small size 170 mm * 85 mm can be embedded into the all-in-one, save a space

DDR3L SO - DIMM a single biggest support to 8 g

Biggest support HDMI hd display interface resolution 3840 x2160, video can be played 4 k, decoding ability outstanding

An LVDS interface, support 24 bit dual channel six six (single/double/single/double eight.)

Motherboard support HDMI and an LVDS double screen shows at the same time, can be replicated and cloning

Double Mini pciE -

Half tall this support Mini - pciE signals, support WIFI

High support Mini - SATA, SSD solid-state disk available to do system, stable, easy to fixed installation

Rear audio output and MIC input interface, front row needles, audio chips are ALC662 support 6 channel output

Built-in USB row needle, can support two USB devices, and hardware to boot set to jump cap

Side back onboard four start interface

1 standard SATA interface, power supply small 4 pin support 5 v and 12 v
