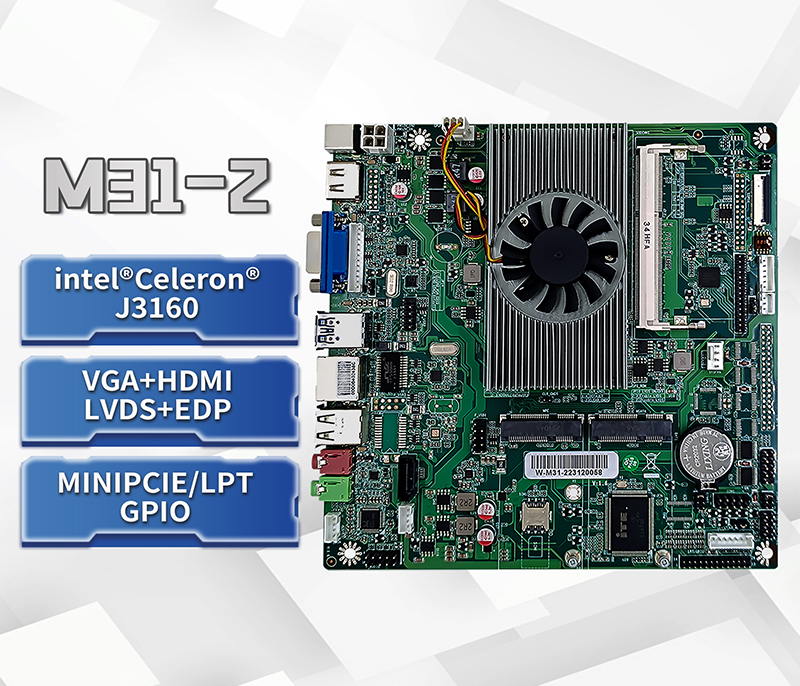

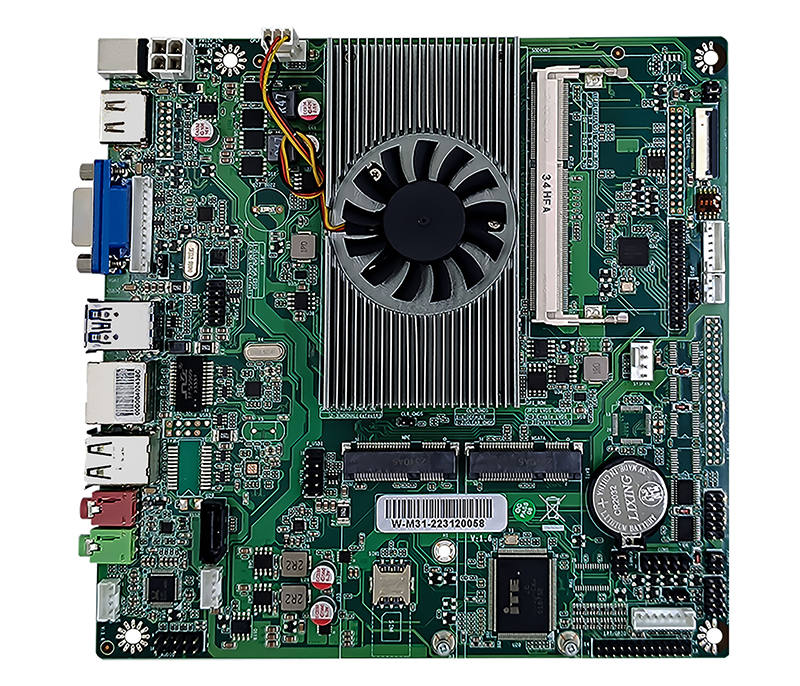

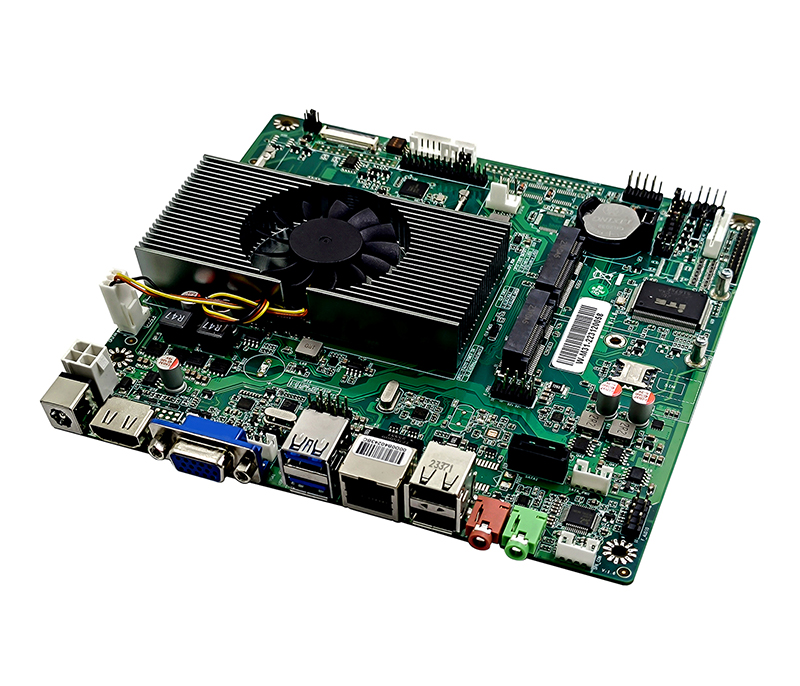

W-M31-6L2

Price:¥面议

Intel® Celeron® Processor J3160 (2M Cache, up to 2.24 GHz),支持 VGA、HDMI、EDP/LVDS 四组输出,可同步或异步双显示输出,三显示输出,1*SO-DIMM,DDR3L 内存最大支持8GB

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU intel J3160
CPU slot On-board CPU
specification
Main board structure ITX 170*170mm
Power supply mode DC 12V
Number of com 6
Number of usb 8
SATA Number 2
The graphics sound network
graphics output 1*LVDS,1*VGA,1*HDMI,1*DP
Net amount 2
Sound card type ALC 662
The onboard interface
MSATA 1
Mini-PCIE 1
VGA extensions port 1*12 2.0mm connector
HDMI extensions port 2*8 2.0mm connector
Audio amplification 1*4 2.0mm 2*3W port
KB/MS port 1*7 2.0mm port
LPT/GPIO port 2*13 2.0mm N26 port
COM ports number 6
RS232/485 1
USB2.0 Number 6
USB3.0 Number 2
GPIO port 2*5 2.54mm 4in4out
SATA Number 2
DC IN port ATX 4pin

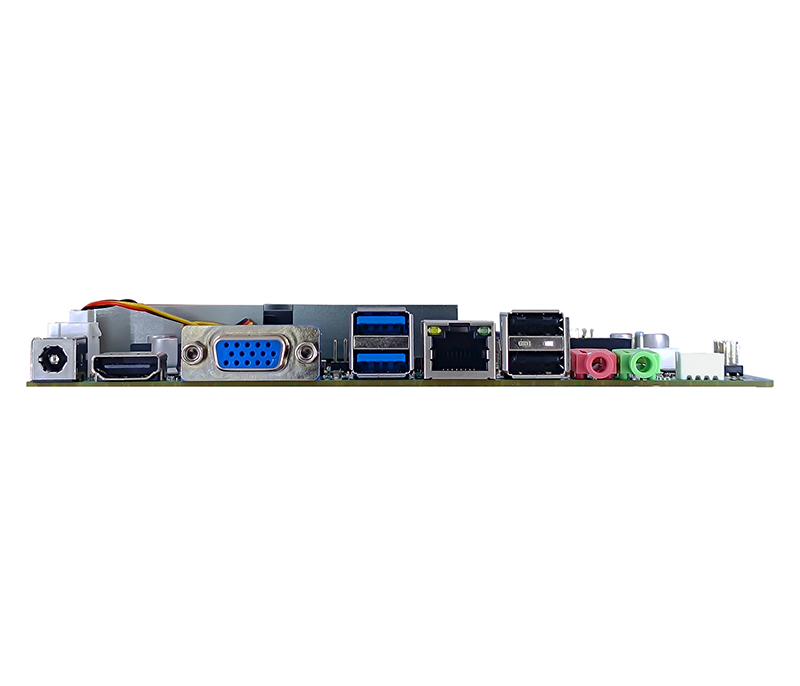

The rear interface
KB/MS KB/MS
DC DC 12V
VGA 1*VGA
HDMI 1*HDMI
COM 6*COM
LPT/GPIO 1
LAN 2*LAN
USB2.0 6
USB3.0 2
Audio 1
Mic 1
Line-in 1
PW_SW 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054
