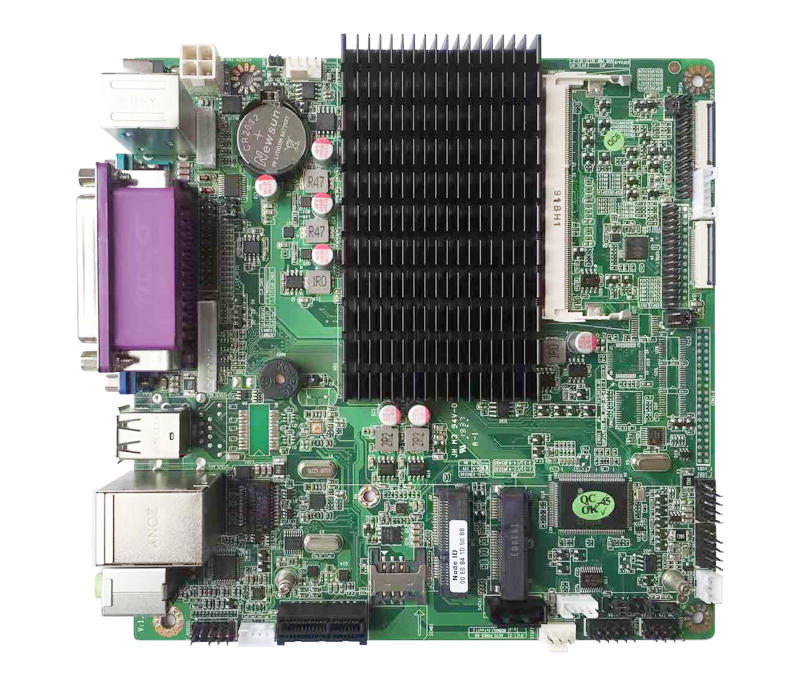

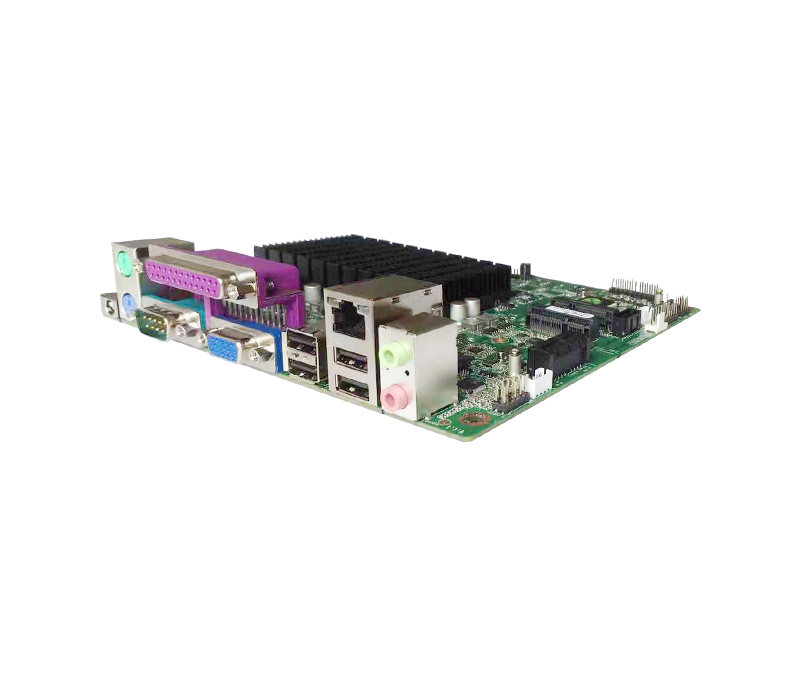

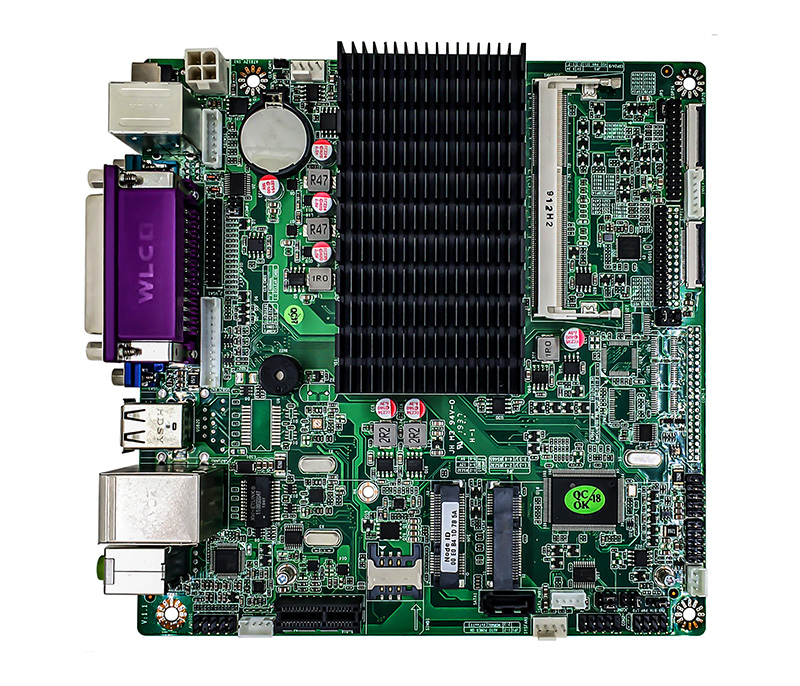

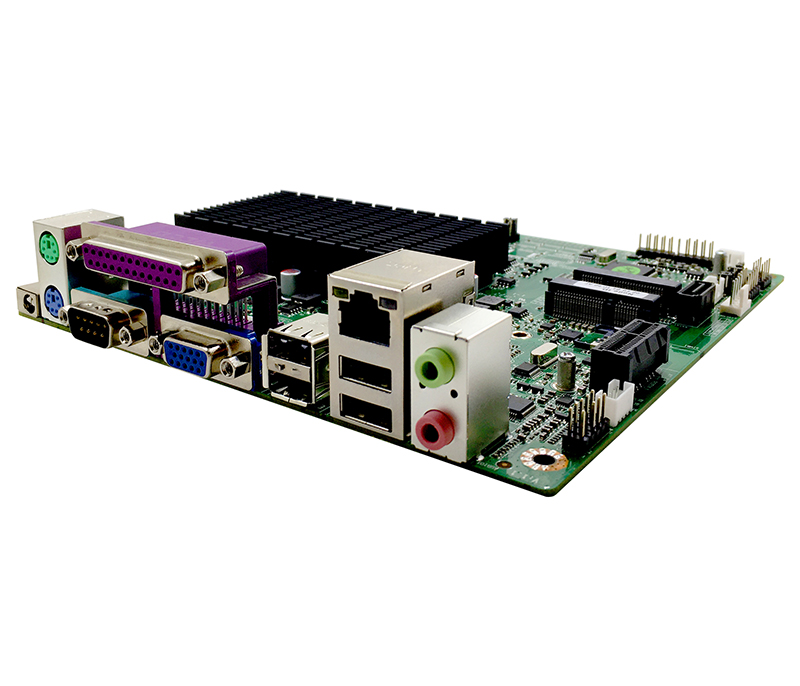

W-PH19-2

Price:¥面议

1*VGA,1*LVDS,1*EDP,1*SO-DDR3L,8*USB2.0,2*COM,1*LAN,1*MSATA,1*SATA, 1*Mini-PCIE+SIM,1*PCIE_1X,1*KB/MS,1*LPT,1*GPIO,1*Line_out,1*MIC,1*SPK(2*3W)

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU intel J1900
CPU slot On-board CPU
specification
Main board structure ITX 170*170mm
Power supply mode DC 12V
Number of com 2
Number of usb 8
SATA Number 2
The graphics sound network
graphics output 1*VGA,1*LVDS,EDP
Net amount 1
Sound card type ALC 662
The onboard interface
The PCI slot NO
PCI-E 16X slot NO
MSATA 1
Mini-PCIE 1
SIM slot 1
VGA extensions port 1*12 2.0mm connector
front audio port 2*5 2.0mm N8 port
Audio amplification 1*4 2.0mm 2*3W port
KB/MS port 1*7 2.0mm port
LPT/GPIO port 2*13 2.0mm N26 port
COM ports number 2
RS232/485 1
USB2.0 Number 4
GPIO port 2*5 2.54mm 4in4out
SATA Number 2
DC IN port ATX 4pin

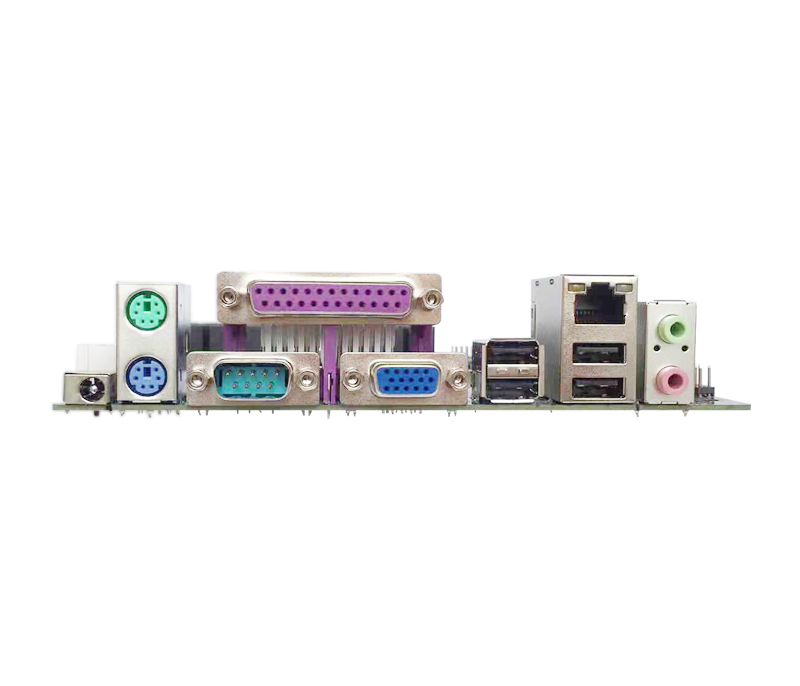

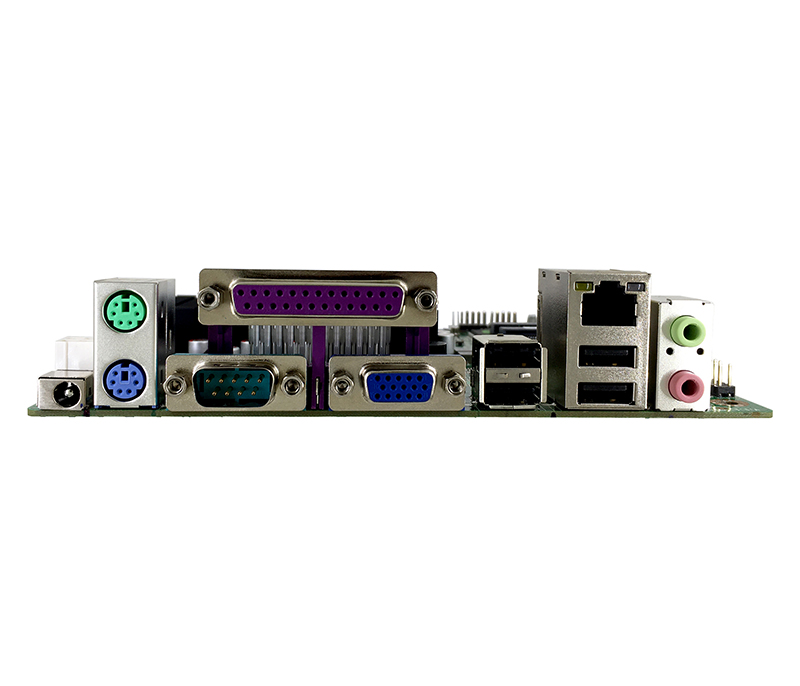

The rear interface
KB/MS KB/MS
DC DC 12V
VGA 1*VGA
HDMI NO
COM 1*COM
LPT/GPIO 1
LAN 1*LAN
USB2.0 4
Audio 1
Mic 1
Line-in 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

Intel® Celeron® Processor J1900/J1800处理器(2M Cache,Base Frequency 2.00/2.41 GHz,up to 2.42/2.58 GHz)
POS机行业热卖主板,稳定性优异,性价比高,Mini-ITX(17x17cm)板型
支持单通道DDR3L,单条最高支持到8GB 1333MHz SDRAM
