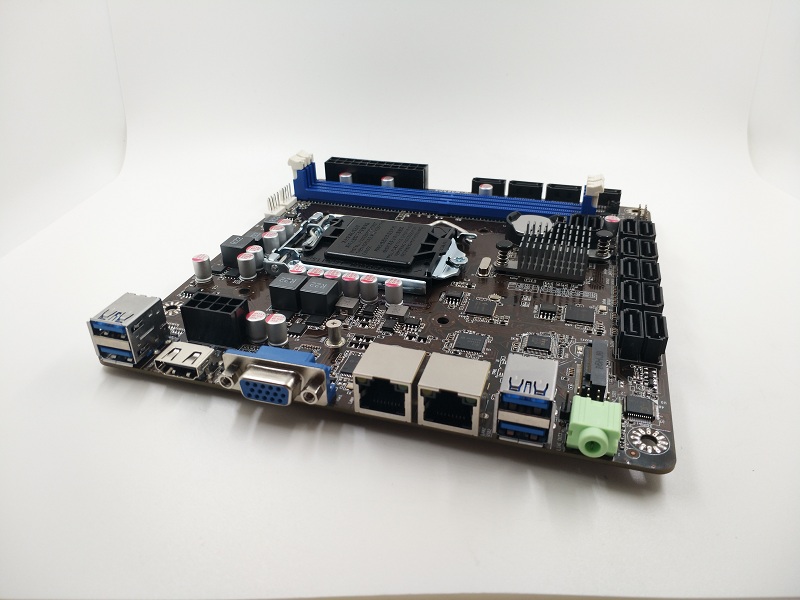

W-M365-D4-14S

Price:¥面议

14*SATA3.0,1*M.2,2*LAN,1*VGA,1*HDMI,2*DDR4-DIMM,4*USB3.0,2*USB2.0

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
CPU slot LGA 1151
specification
Main board structure ITX 170*170mm
Power supply mode ATX 24+4 PIN
Number of com NO
Number of usb 6
SATA Number 14
The graphics sound network
graphics output 1*HDMI,1*VGA
Network chip intel i211AT
Net amount 2
Sound card type ALC 662
The onboard interface
The PCI slot NO
PCI-E 16X slot NO
MSATA NO
Mini-PCIE NO
SIM slot NO
USB2.0 Number 2
SATA Number 14
The rear interface
VGA 1*VGA
HDMI 1*HDMI
LAN 2*LAN
USB3.0 4
Line-in 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

The Intel® H310C chipset supports six -, seven - and eight-generation core, pentium, celeron (LGA1151) processors
Support 14 SATA3.0,1 m. 2 storage devices, widely used in ipfs, security monitoring, data storage, support Linux system
Support dual channel DDR4 desktop memory, maximum support 32 Gb
Support Intel dual gigabit port
