Product details
W-G365
Price：¥面议
Contact and cooperate
Telephone：+86-755-82544054 83213461
Mailbox：sale@ipcwtm.com
- Specification
- Introduction
- Packing list
- Customer service
| The main chip | |
|---|---|
| Chip manufacturer | Intel |
| CPU slot | LGA 1151 |
| specification | |
| Power supply mode | ATX 24+4 PIN |
| Number of com | 10 |
| Number of usb | 12 |
| SATA Number | 4 |
| The graphics sound network | |
| graphics output | 1*VGA,1*HDMI |
| Network chip | intel i211AT |
| Net amount | 2 |
| Sound card type | ALC 662 |
| The onboard interface | |
| The PCI slot | 4 |
| PCI-E 16X slot | 1 |
| front audio port | 2*5 2.54mm N8 port |
| USB2.0 Number | 6 |
| The rear interface | |
| VGA | 1*VGA |
| HDMI | 1*HDMI |
| COM | 2*COM |
| LAN | 2*LAN |
| Audio | 1 |
| Mic | 1 |
| Line-in | 1 |
Service commitment
1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054
W-G365 V0.0 规格：
平台 ·Coffee Lake
芯片 ·Intel® B365
处理器 ·Intel® 第6/7/8代酷睿i7/i5/i3/ in LGA1151 Package（功率不高于65W）
显示接口 ·支持 VGA、HDMI输出，可同步或异步双显示输出
显示性能 ·集成Intel HD Graphics(具体型号依处理器而定 )
内存 ·4*SDIMM,支持DDR4 1333-2400内存最大支持32GB
电源 ·ATX24PIN+8PIN 供电(支持来电开机JP1)
存储 ·5*SATA
·1*M.2
系统 ·Win7、Win8.1、Win10、Linux等系统
网络 ·2*Intel® Ethernet Controller I211-AT LAN, 支持无盘启动,网络唤醒
声音 ·瑞昱ALC662 芯片 Line_OUT
看门狗 ·支持
USB ·6*USB3.0 6*USB2.0 (2*F_USB)

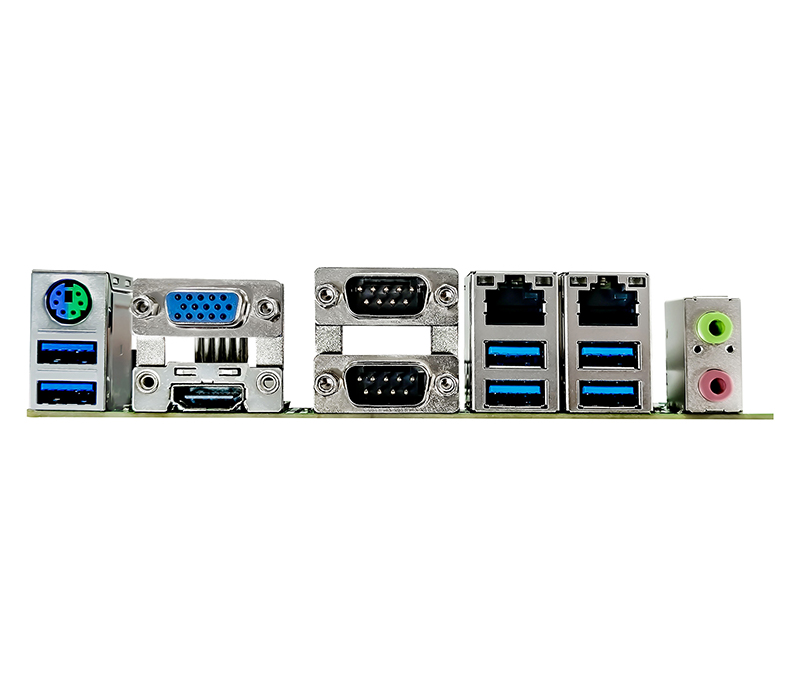

背板接口 ·1*HDMI
·1*VGA
·6*USB3.0
·2*RJ-45 1000M网
·2*COM
·1*AUDIO
·1*PS2

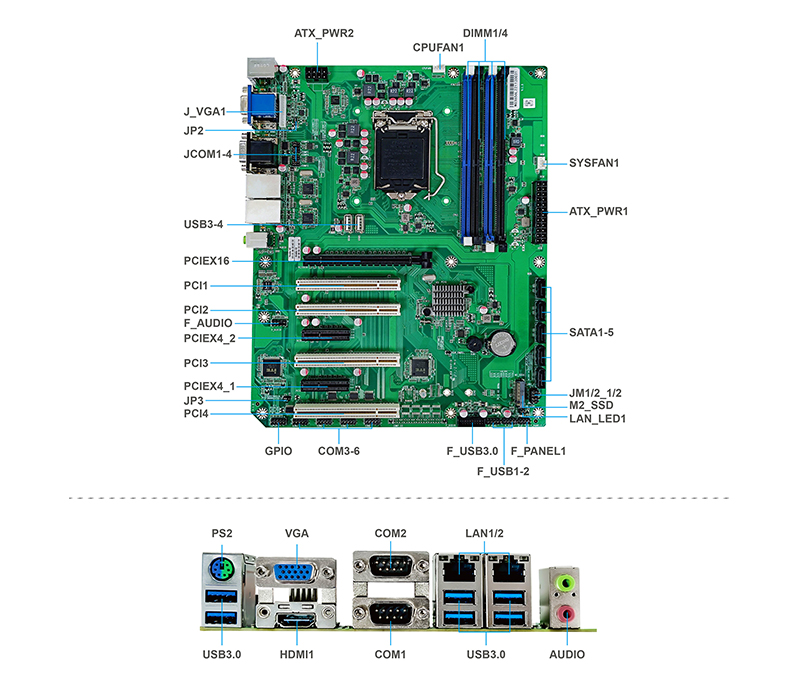

内置接口 ·1*PCIE_16X
·2*PCIEX4_1
·4*PCI
·8*COM
·5*SATA
·4*DIMM
·1*CPUFAN 供电接口
·1*SYSFAN 供电接口
·5*SATA
·1*24PIN+8PIN供电接口
·1*M.2
·2*F_USB2.0
·1*F_AUDIO
·LAN_LED1
·F_PANE
BIOS ·AMI BIOS, ACPI supported，支持来电开机功能
温度 ·工作：-20 至60 摄氏度
·仓储：-20 至60 摄氏度
·湿度：10%~90%
板型 ·305毫米*245毫米
