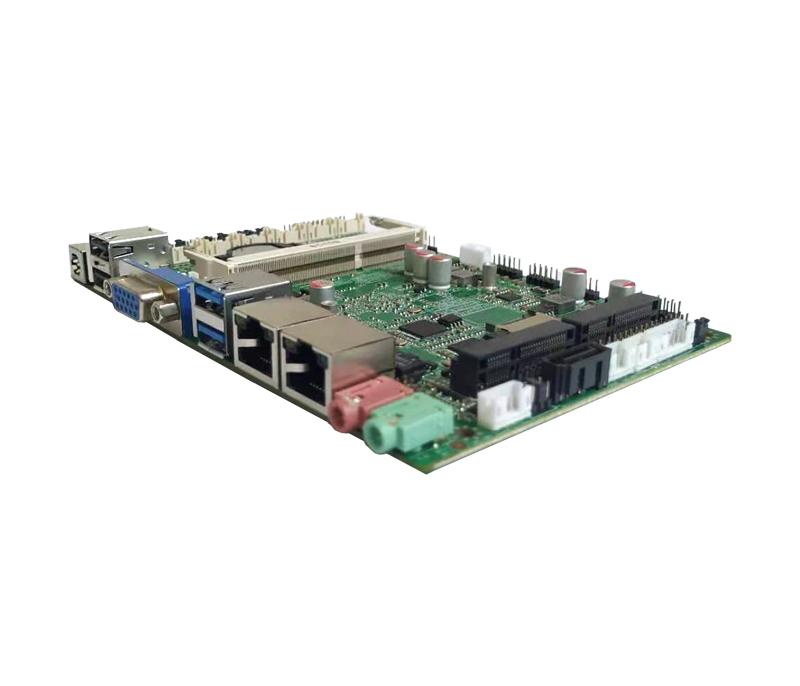

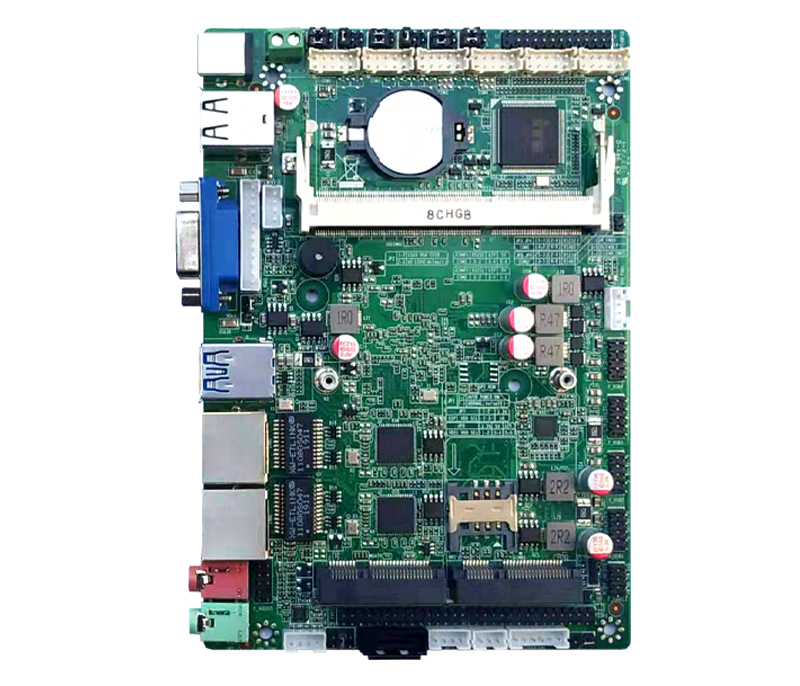

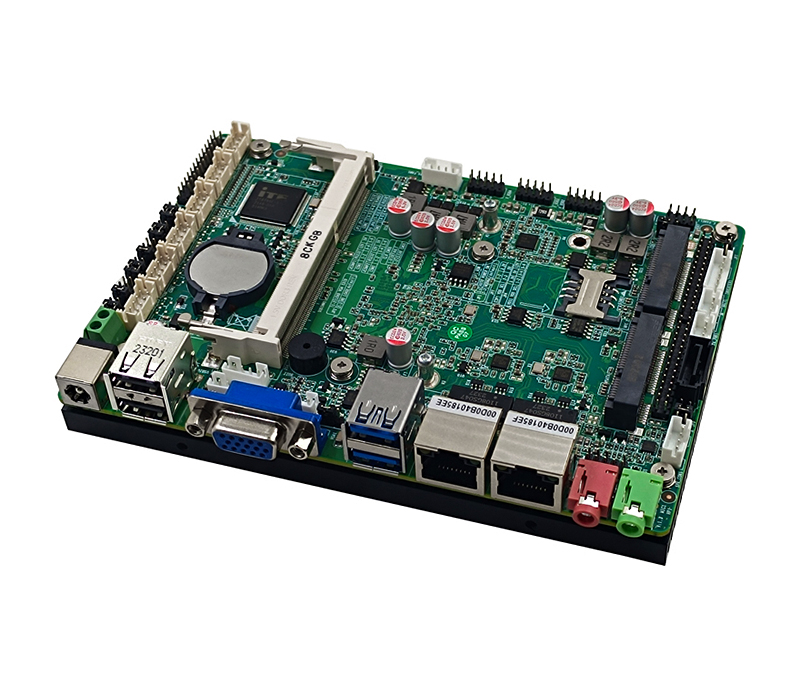

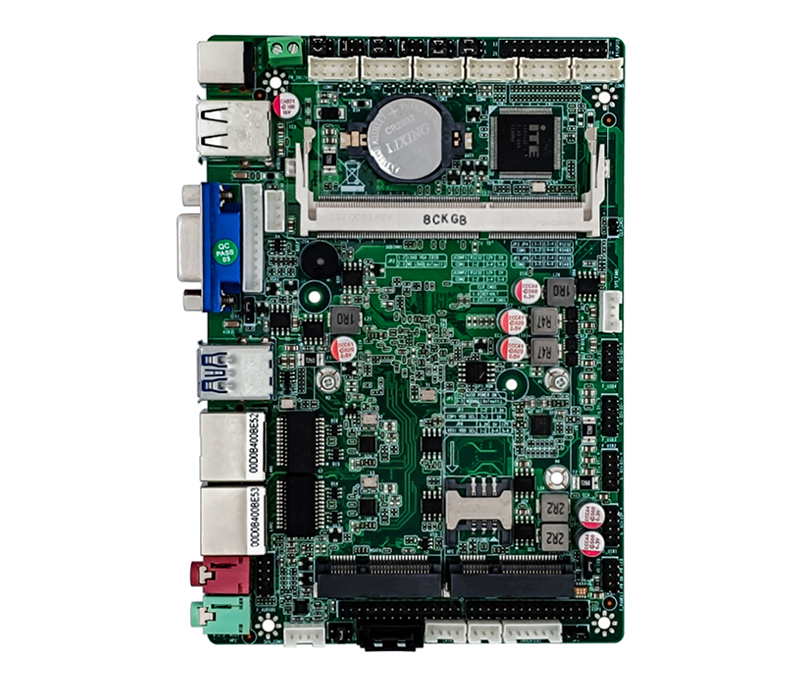

W-S36

Price:¥面议

3.5 inch board type(148*102mm), small industrial personal computer, POS machine and self-help industry popular motherboard, cost-effective

Contact and cooperate

Telephone:+86-755-82544054 83213461

Mailbox:sale@ipcwtm.com

  • Specification
  • Introduction
  • Packing list
  • Customer service
The main chip
Chip manufacturer Intel
On-board CPU intel J1900
specification
Main board structure 3.5" 148*102mm
Power supply mode DC 12V
Number of com 6
Number of usb 12
SATA Number 1
The graphics sound network
graphics output 1*VGA,1*LVDS
Network chip intel i211AT
Net amount 2
Sound card type ALC 662
The onboard interface
The PCI slot NO
PCI-E 16X slot NO
MSATA 1
Mini-PCIE 1
SIM slot 1
VGA extensions port 1*12 2.0mm connector
HDMI extensions port NO
front audio port 2*5 2.0mm N8 port
Audio amplification 1*4 2.0mm 2*3W port
KB/MS port NO
LPT/GPIO port 2*13 2.0mm N26 port
COM ports number 6
RS232/485 2
USB2.0 Number 8
USB3.0 Number 无
SATA Number 1

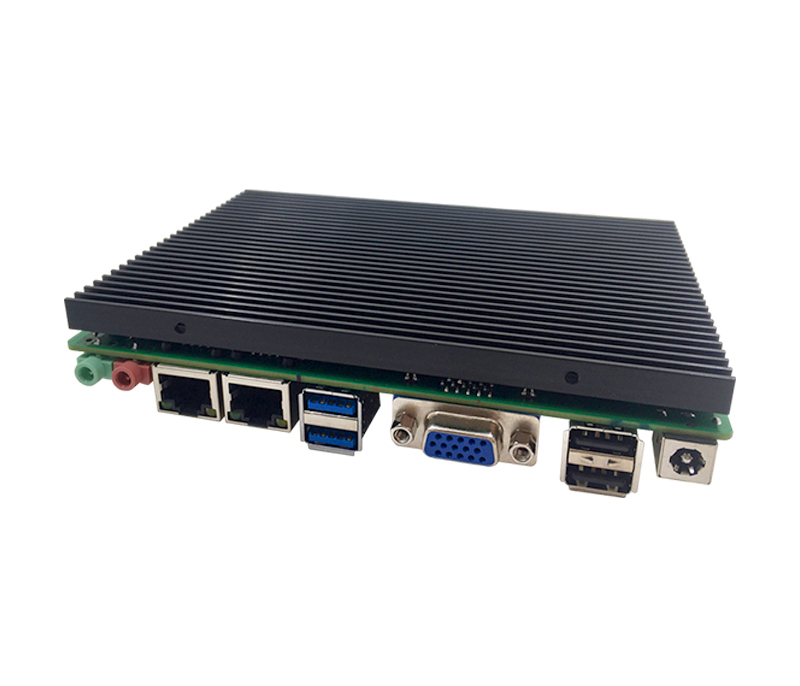

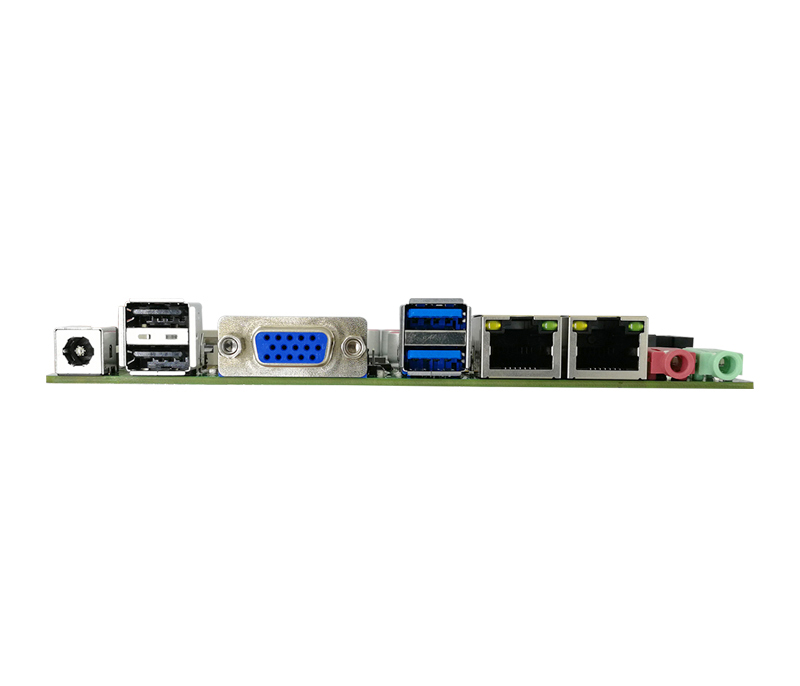

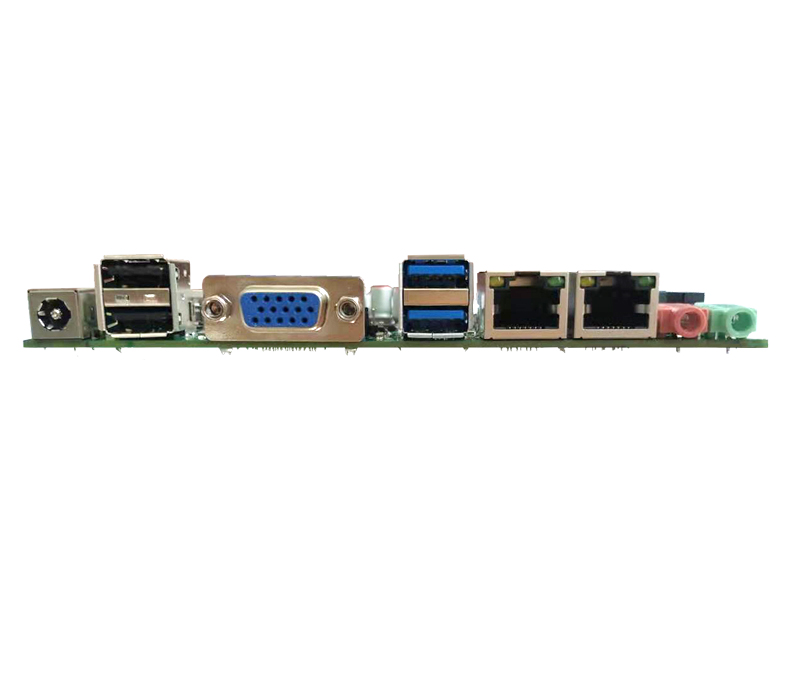

The rear interface
DC DC 12V
VGA 1*VGA
LAN 2*LAN
USB2.0 3
USB3.0 NO
Mic 1
Line-in 1

Service commitment

1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

Intel® Celeron® Processor J1900 (2M Cache,Base Frequency 2.00GHz)
Integrated Intel® HD Graphics, support VGA+LVDS/VGA+EDP/EDP+LVDS three display modes, support synchronous or asynchronous dual display
3.5 inch board type, small industrial personal computer, POS machine and self-help industry popular motherboard, cost-effective
Support single channel DDR3L, single up to 8GB 1333MHz SDRAM
