Product details

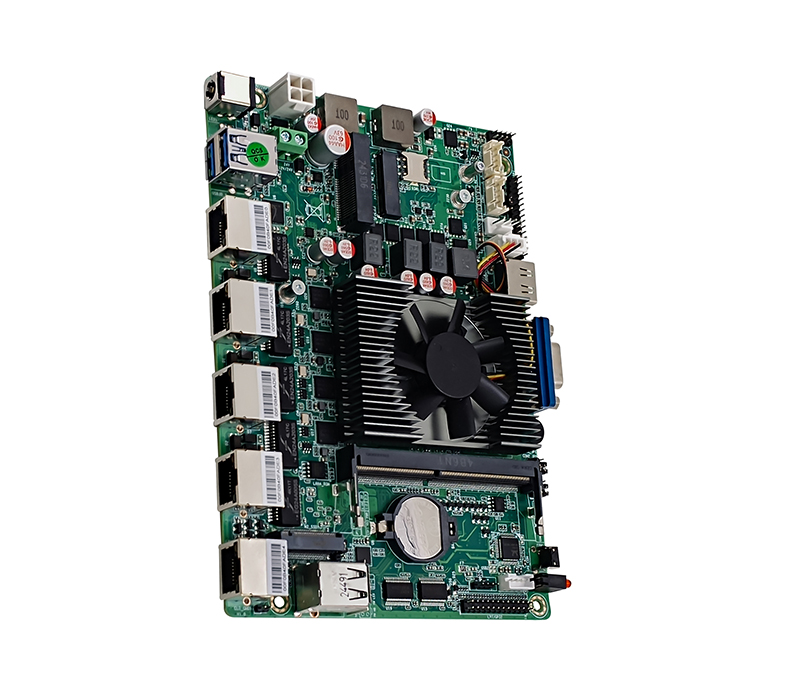

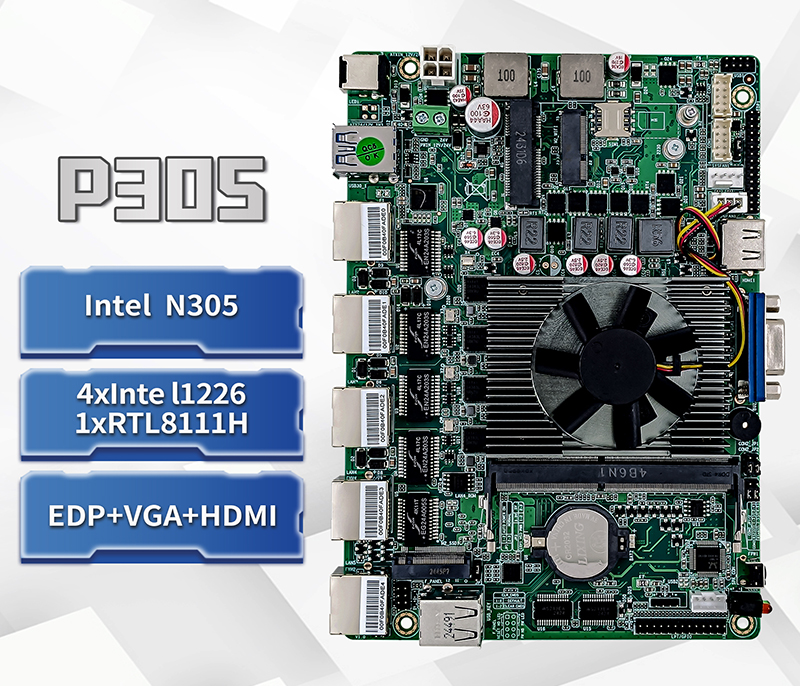

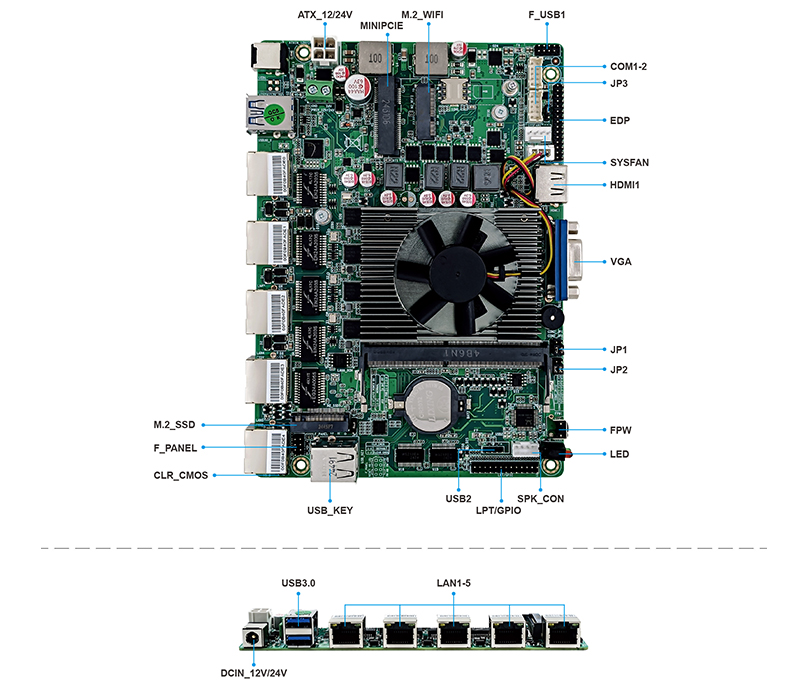

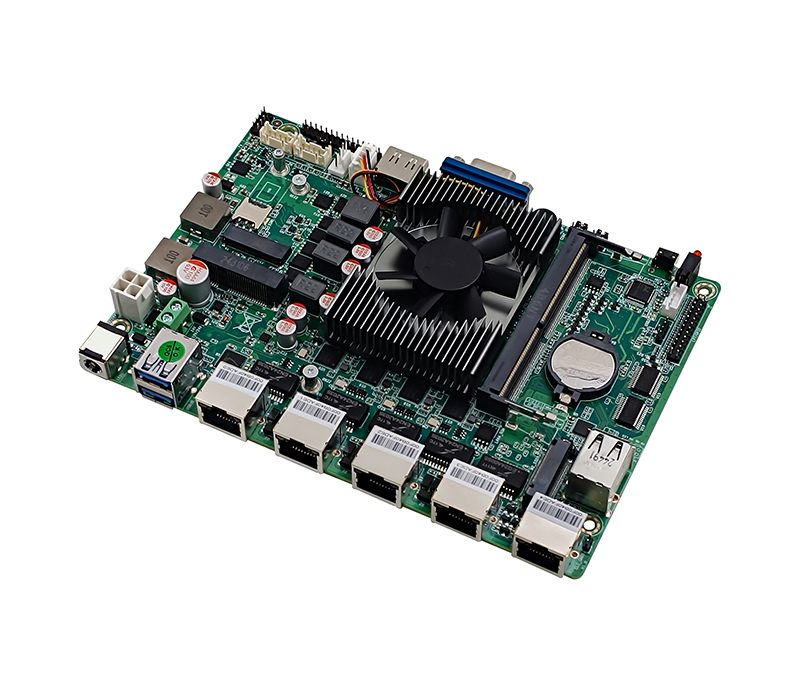

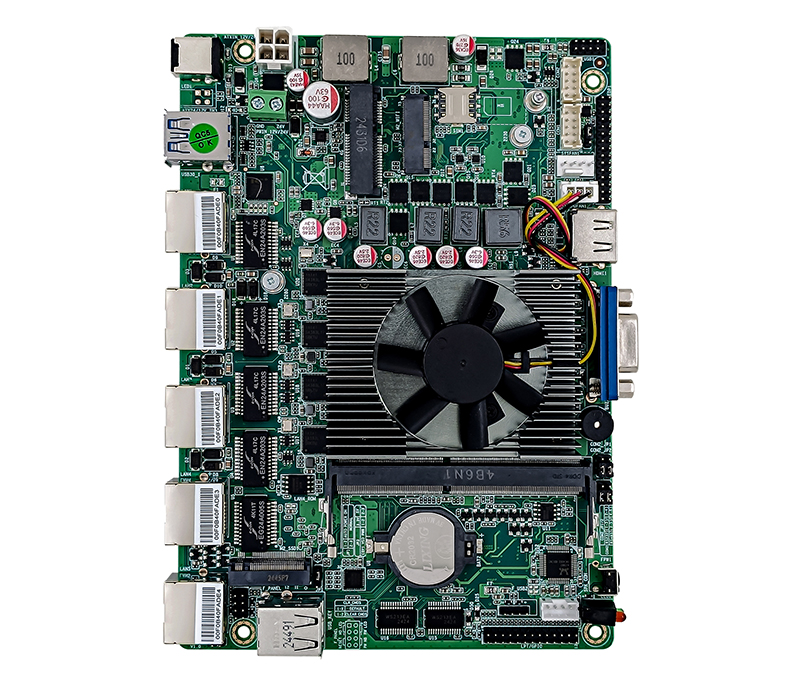

W-P305
Price：¥面议
Contact and cooperate
Telephone：+86-755-82544054 83213461
Mailbox：sale@ipcwtm.com
- Specification
- Introduction
- Packing list
- Customer service
| The main chip | |
|---|---|
| Chip manufacturer | Intel |
| On-board CPU | intel N305 |
| CPU chip position | Front |
| The cooling mode | Have a fan |
| CPU slot | On-board CPU |
| South chip | intel N305 |
| specification | |
| Memory type | DDR4 SODIMM |
| RAM | 1*DDR4 SODIMM |
| Storage | M.2_SSD NVME/NGFF |
| Storage Detail | 1*M.2_SSD |
| USB | 4*USB2.0,2*USB 3.2 Gen2 |
| Expandable Slot | 1*M.2 WIFI,1*MPE_4G,1*SIM |
| Main board structure | 170X120mm |
| Power supply mode | DC 12~24V |
| Number of com | 2 |
| Number of usb | 6 |
| SATA Number | NO |
| TPM | Optional-Connect us |
| VPRO | NO |
| The graphics sound network | |
| graphics output | EDP,1*HDMI,1*VGA |
| Network chip | RTL8111,intel i226 |
| Net amount | 5 |
| Sound card type | ALC 897 |
| Audio | SPK_CON pins(output) |
Service commitment
1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054
|
