Product details

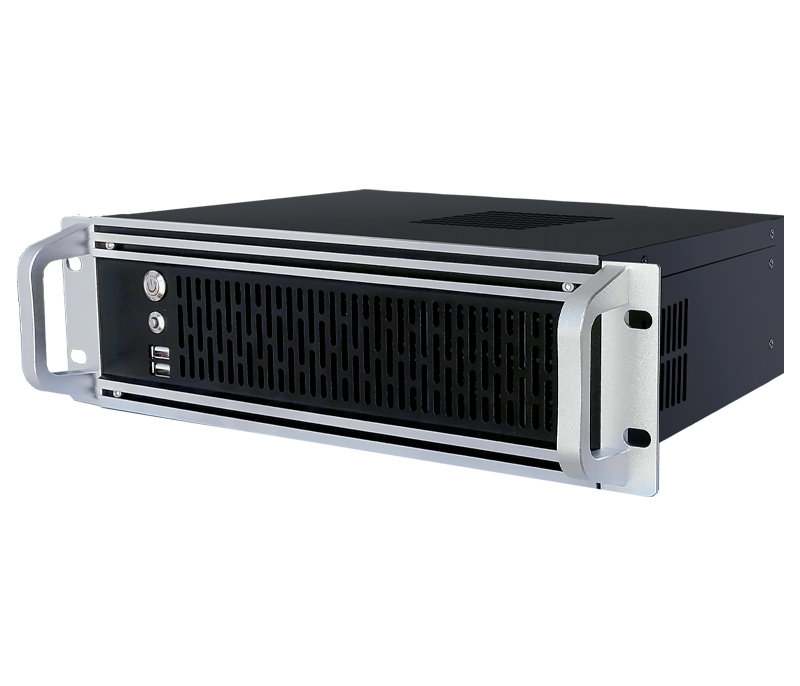

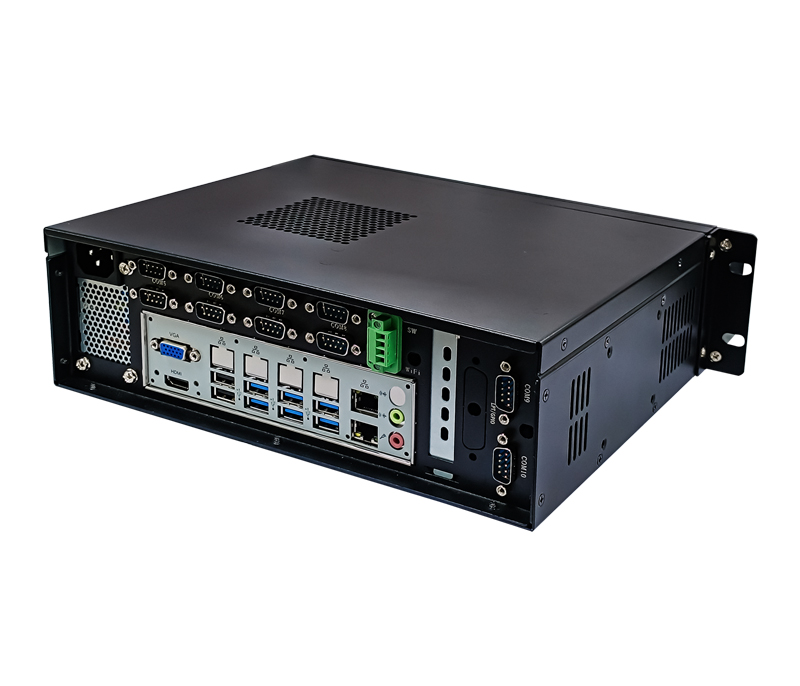

W-M256 complete machine
Price：¥面议
Contact and cooperate
Telephone：+86-755-82544054 83213461
Mailbox：sale@ipcwtm.com
- Specification
- Introduction

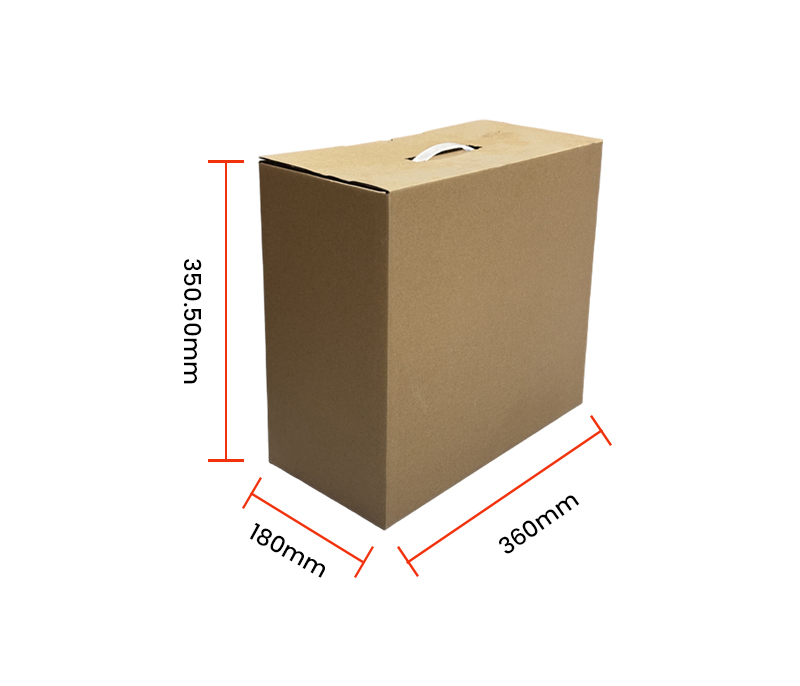

- Packing list
- Customer service
| The main chip | |
|---|---|
| Chip manufacturer | Intel |
| CPU slot | LGA 1151 |
| South chip | intel B250 |
| specification | |
| Memory type | DDR4 UDIMM |
| RAM | 2*DDR4 UDIMM |
| Storage | SATA,MSATA |
| Storage Detail | 1*MSATA,2*SATA |
| USB | 6*USB 3.2 Gen1,5*USB2.0 |
| Expandable Slot | 1*MPE,1*TPM2.0,1*SIM,1*PCIE 16X |
| Main board structure | MINI-ITX 180*180mm |
| Power supply mode | ATX 24+8 PIN |
| Number of com | 10 |
| Number of usb | 11 |
| SATA Number | 2 |
| TPM | Optional-Connect us |
| The graphics sound network | |
| graphics output | 1*HDMI,1*VGA |
| Network chip | intl i210 |
| Net amount | 6 |
| The rear interface | |
| PW_SW | 1 |
Service commitment
1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054

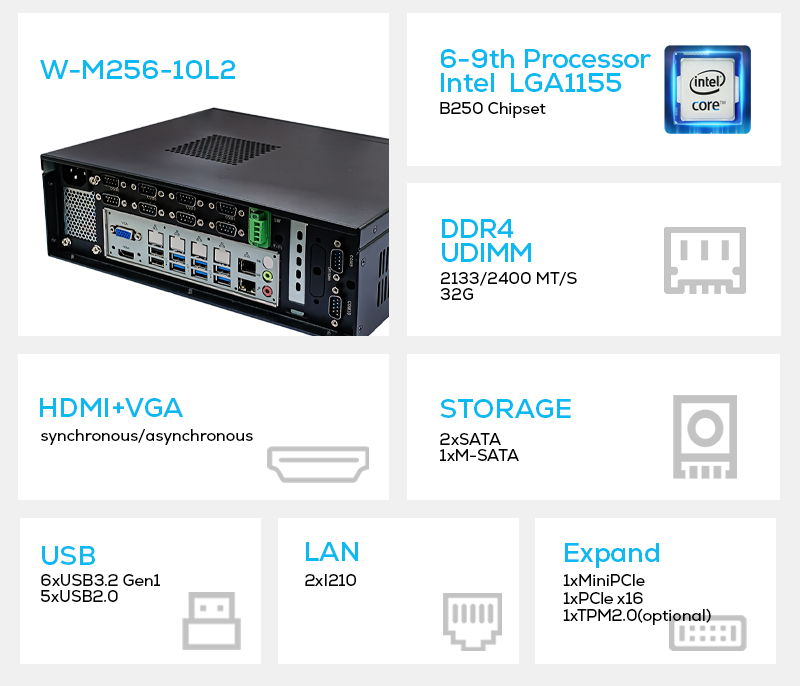

- Intel 6-9 th generation Celeron/Pentium/Core i3/i5/i7/i9 In LGA115
- 2*DDR4 2133MHz/2400MHz UDIMM， Up to 32GB maximum
- 2 * INTEL I210 adaptive network card, supports network wake-up, no disk boot (LAN1~LAN2 optional POE)
- 1*MSATA , Maximum transmission rate of 6Gb/s, 2 * SATA III, 1 * MPE supporting WIFI/4G
- 6 * USB32.Gen1, LPT/GPIO/8 input and 8 output, 10 * COM, COM1/2 supports RS485 (optional), TPM2.0 (optional)
