Product details

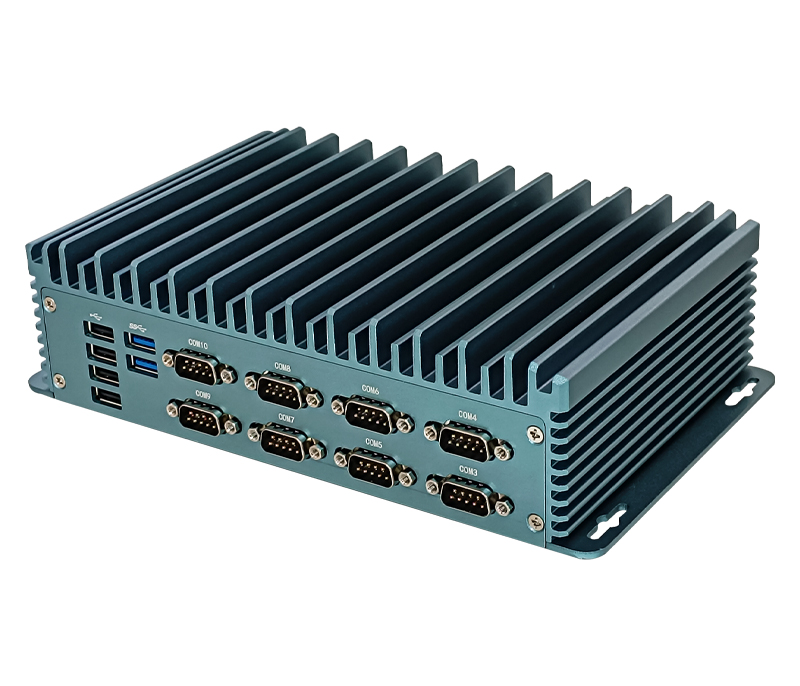

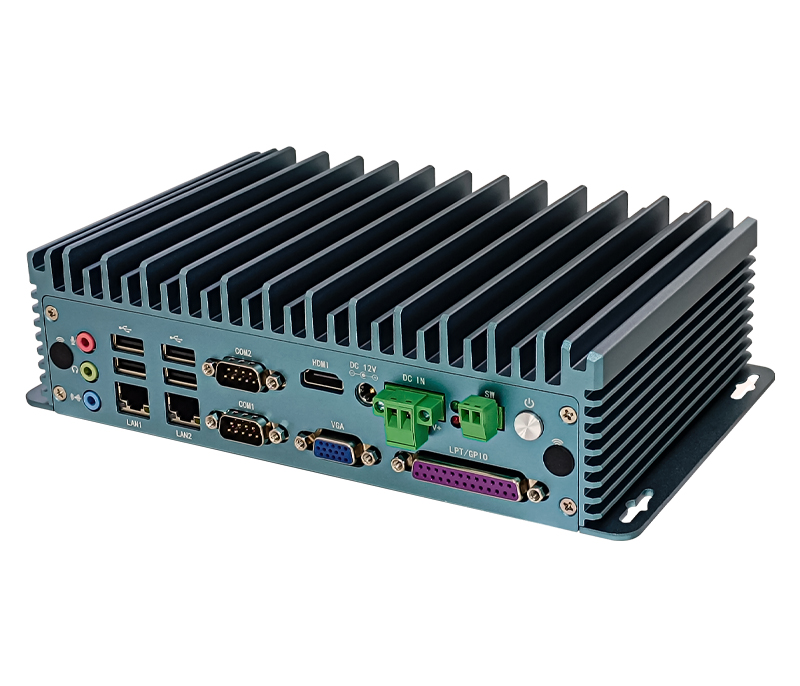

W-N30 whole machine
Price：¥面议
Contact and cooperate
Telephone：+86-755-82544054 83213461
Mailbox：sale@ipcwtm.com
- Specification
- Introduction

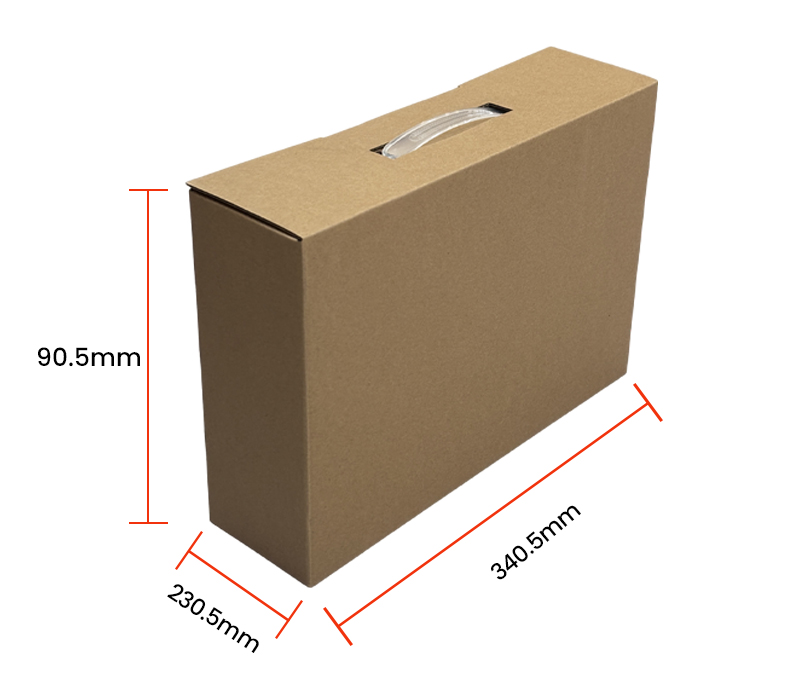

- Packing list
- Customer service
| The main chip | |
|---|---|
| Chip manufacturer | Intel |
| On-board CPU | intel J1900 |
| The cooling mode | No fan |
| South chip | J1900 |
| specification | |
| RAM | 1*DDR3L SODIMM |
| Storage | MSATA,SATA |
| Storage Detail | 1*SATA,1*MSATA |
| USB | 1*USB 3.2 Gen1,9*USB2.0 |
| Power supply mode | DC 12V |
| Number of com | 10 |
| Number of usb | 10 |
| SATA Number | 1 |
| The graphics sound network | |
| graphics output | 1*LVDS,1*HDMI,1*VGA |
| Network chip | intel i211AT |
| Net amount | 2 |
| The rear interface | |
| PW_SW | 1 |
Service commitment
1, From your purchase, the WTM to sell the product provide corresponding warranty period;
2, the WTM products implemented in different places to buy, the national Lianbao, namely no matter in any place you buy the WTM products, you choose any a WTM authorized service stations have a responsibility according to "WTM and service commitment" to you to provide services to ensure your satisfaction of using WTM products;
3, you can through call the nearby city of micro step authorized service station service hotline, consult the relevant technical problems. WTM provides you with six days a week, 9:00am-18:00pm phone hotline Advisory Service (except legal holidays). Hotline: +86-755-82544054
- Intel Celeron Processor J1900 With
- 1*VGA,1*HDMI,1*LVDS,1*SO-DDR3L

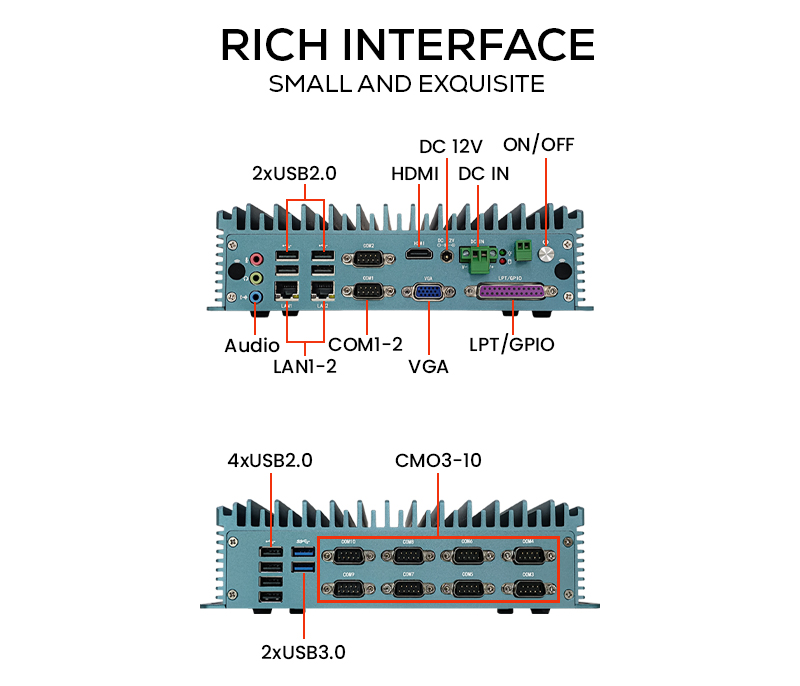

- 2 * LAN, 1 * USB 3.0, 10 * USB 2.0, 10 * COM, 1 * SATA_HDD (2.5-inch interface)
- 1 * Mini SATA, 2 * Mini PCIe, 2 * SIM, 1 * KB/MS, 1 * LPTGPIO/25PIN pin (choose one)
-
1 * Line-in, 1 * Line_out, 1 * MIC-in, 1 * SPK (4 ohms/3W * 2)
